Without Tensioner

Water Pump Belt-3.0L (4V) without Tensioner

Removal

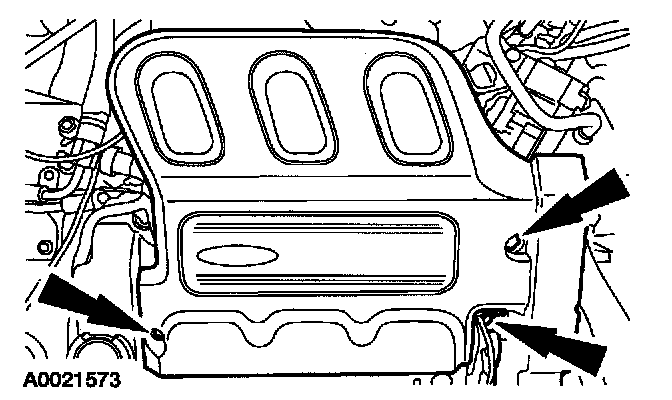

1. Remove the nuts and the engine appearance cover.

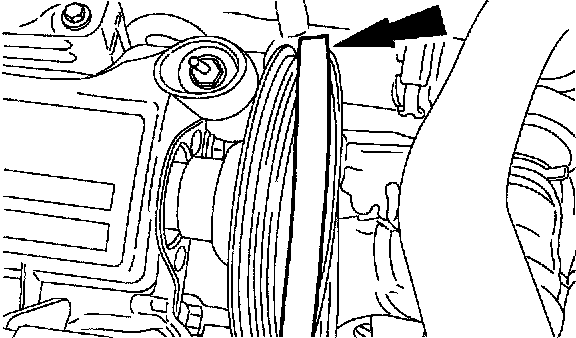

2. Rotate the crankshaft clockwise and remove the water pump belt by walking off the pulley.

Installation

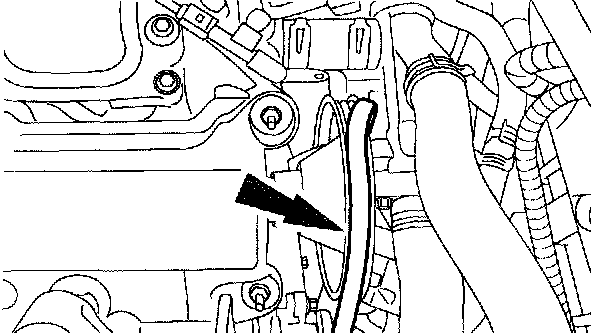

1. Partially start the water pump belt on the pulley.
2. Rotate the crankshaft clockwise and install the water pump belt by walking on the pulley.

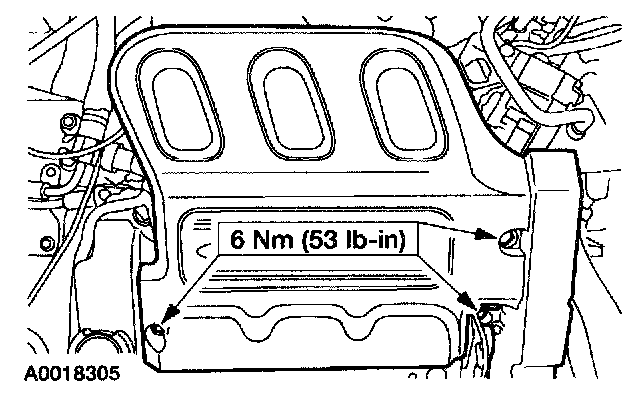

3. Install the engine appearance cover and the nuts.
