Turn Signal Bulb: Service and Repair

SIDE LAMP/FRONT TURN SIGNAL LAMP BULB

REMOVAL
1. Remove the wheel and tire.







2. Position the inner fender well aside.
1 Remove the bolts.
2 Remove the pin-type retainers.
3 Remove the screw.
4 Position the inner fender well aside.

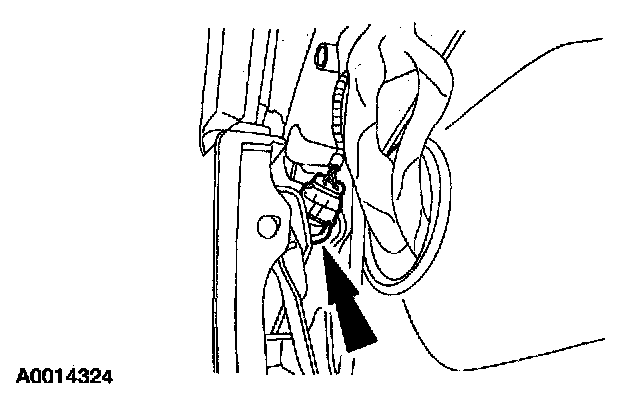

3. Remove the lamp socket from the lamp assembly.

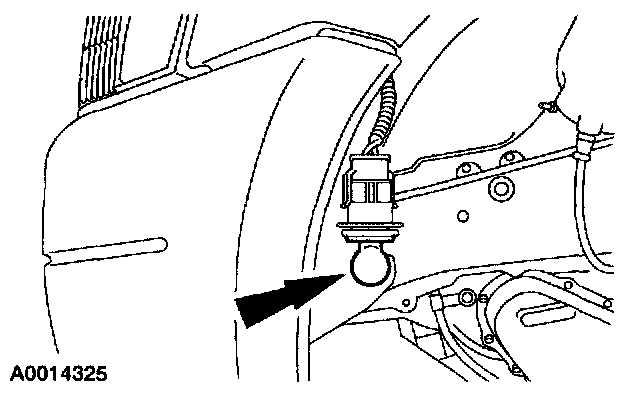

4. Remove the bulb.

INSTALLATION
1. To install, reverse the removal procedure.
