FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test Q
Test Q
PINPOINT TEST Q: ONE TURN SIGNAL/HAZARD LAMP IS NEVER ON

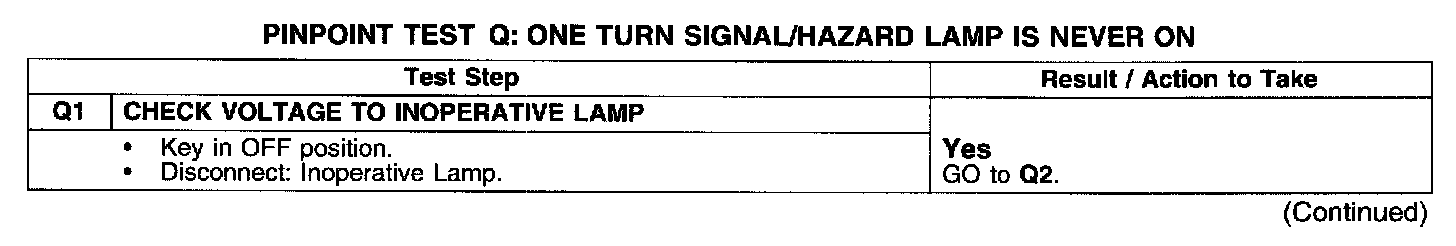

Test Q1:

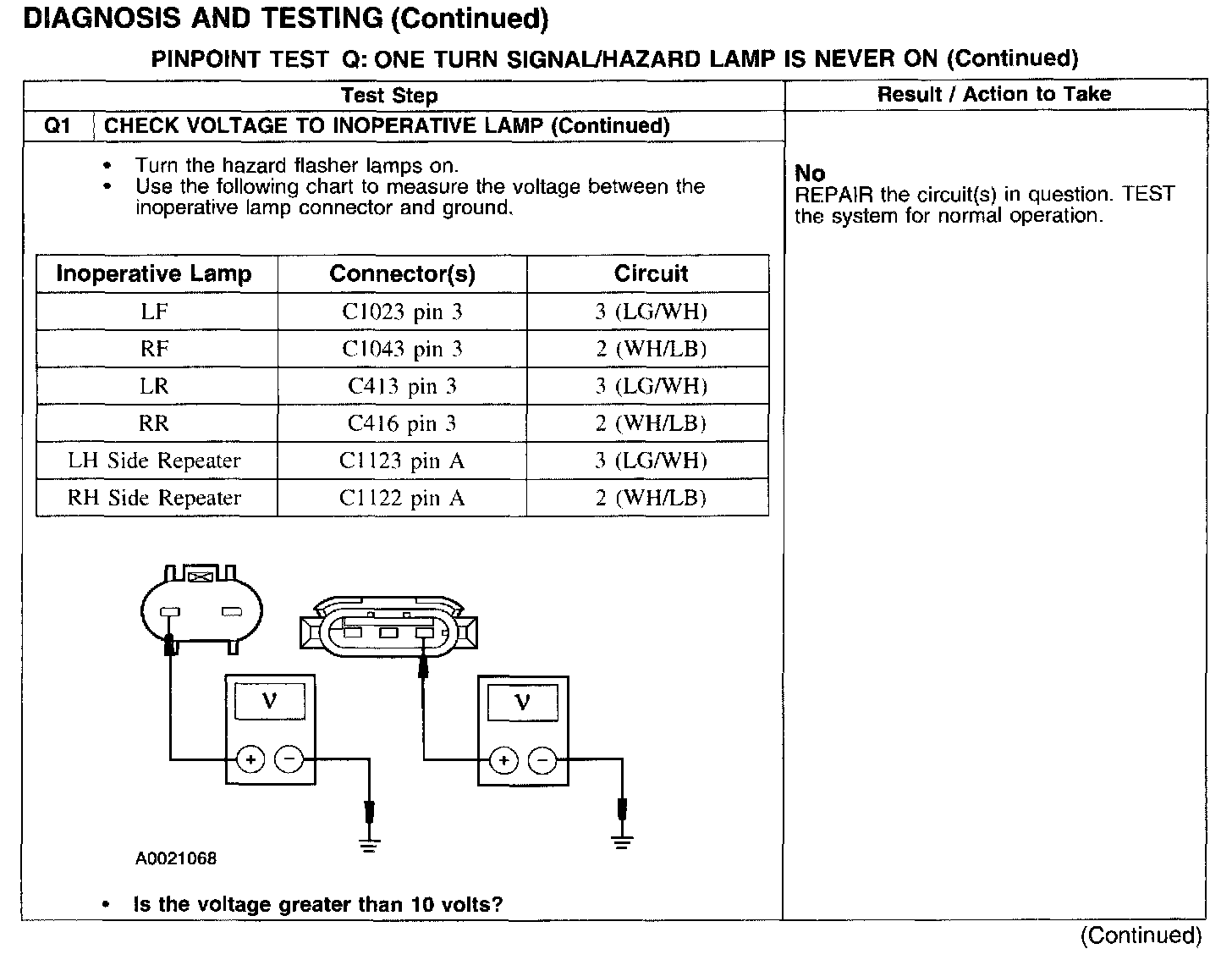

Test Q1 Continued:

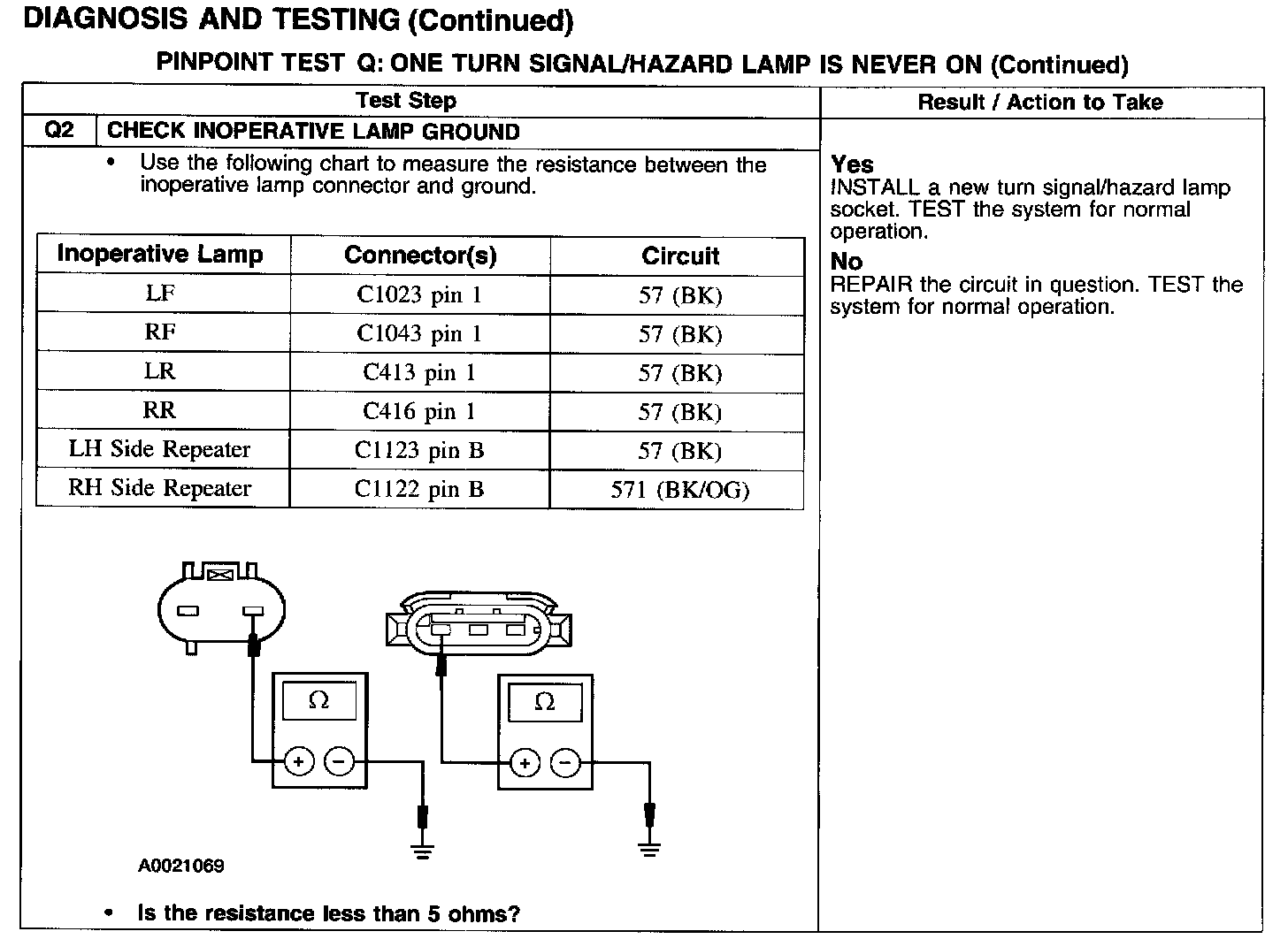

Test Q2:
