Turn Signals: Service and Repair

Steering Column Multifunction Switch

Removal and Installation

1. Disconnect the battery ground cable.





2. Remove the upper steering column shroud.





3. Remove the lower steering column shroud.
1 Remove the screws.
2 Remove the lower steering column shroud.

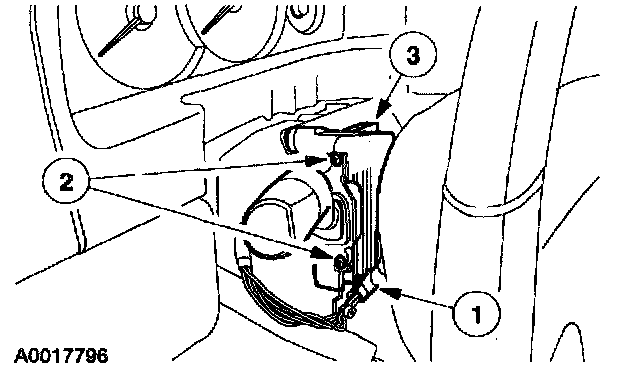

4. Remove the multifunction switch.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the multifunction switch.
5. To install, reverse the removal procedure.
