Fog/Driving Lamp Switch: Service and Repair

FOG LAMP SWITCH

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Do not use a screwdriver to remove fog lamp switch or damage to the finish panel may occur. Adding tape to the end of a thin tool will reduce marring to the finish panel.

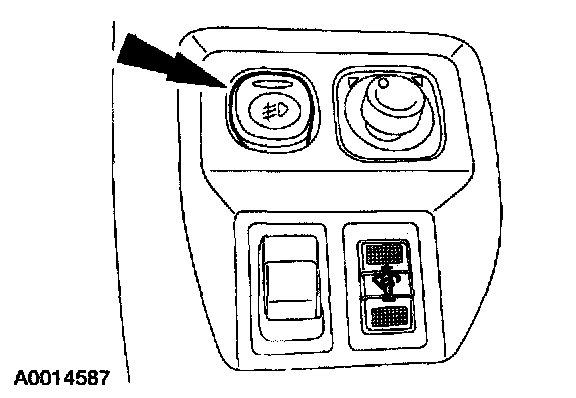

2. Use a thin tool to remove the fog lamp switch.

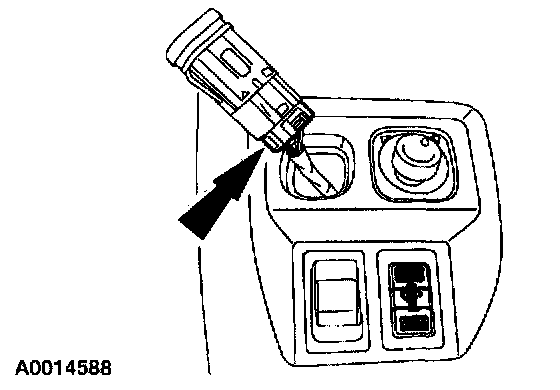

3. Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
