FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Parking Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test U
Test U
PINPOINT TEST U: THE PARKING, REAR OR LICENSE LAMPS ARE ON CONTINUOUSLY

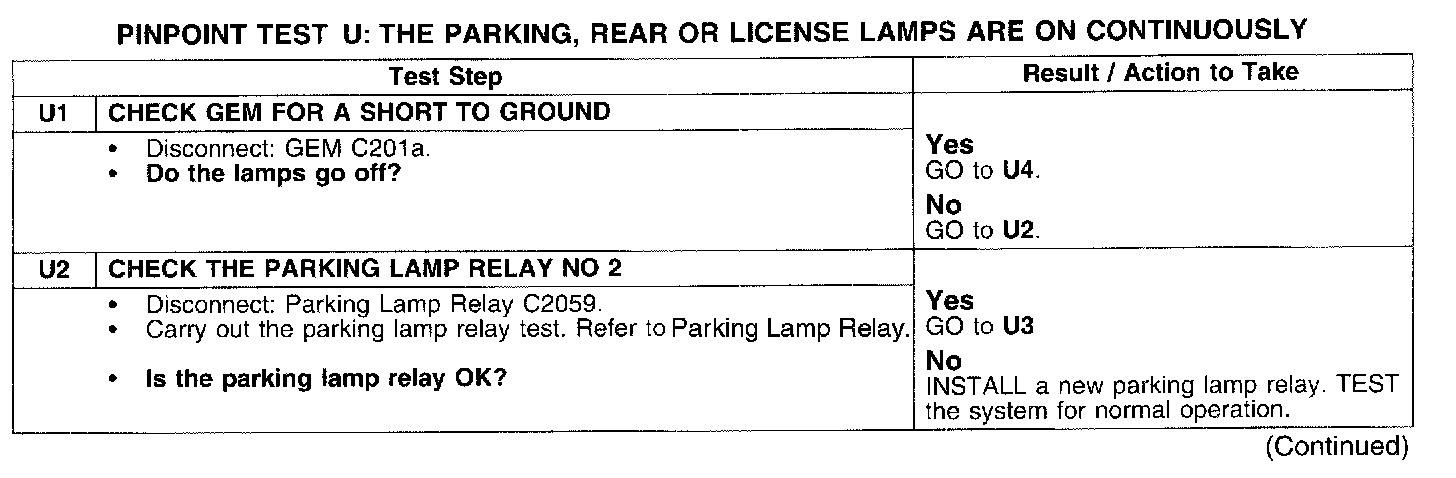

Test U1-U2:

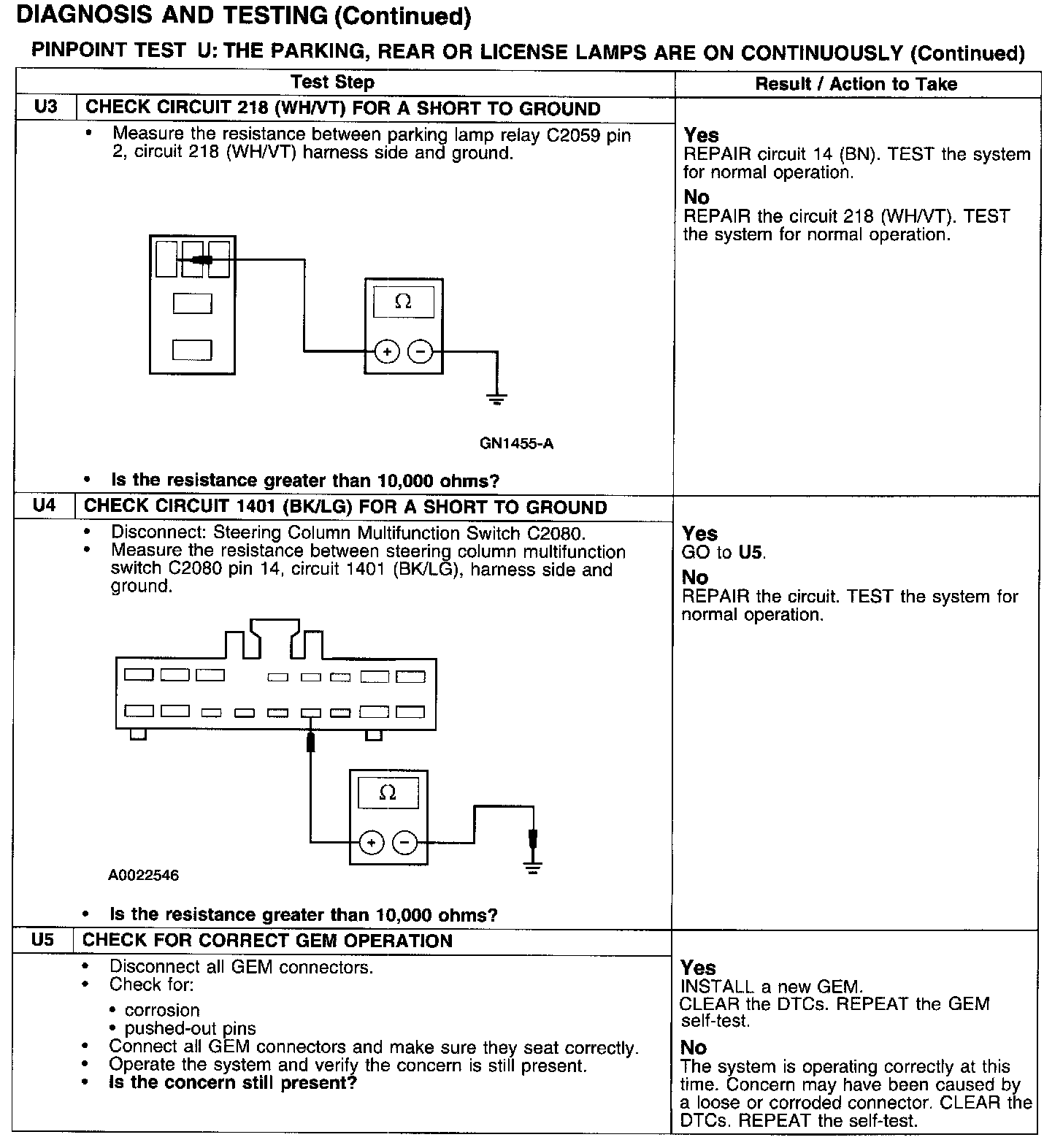

Test U3-U5:
