Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Testing and Inspection >> Pinpoint Tests >> Test T

Test T

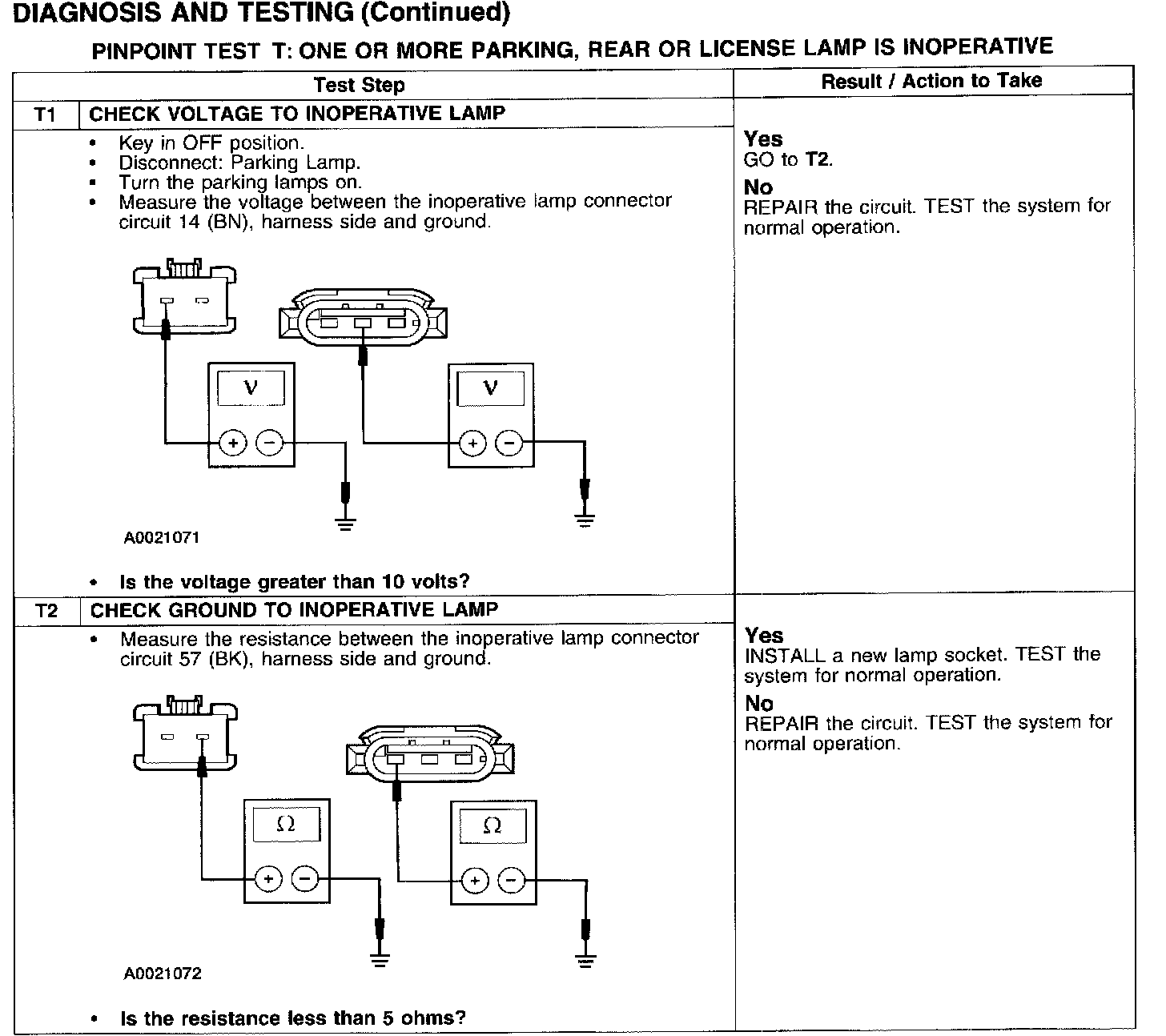

PINPOINT TEST T: ONE OR MORE PARKING, REAR OR LICENSE LAMP IS INOPERATIVE


Test T1-T2:
