Ford Truck
>>
2003
>>
Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Parking Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test S
Test S
PINPOINT TEST S: THE EXTERIOR LAMP(S) ARE INOPERATIVE

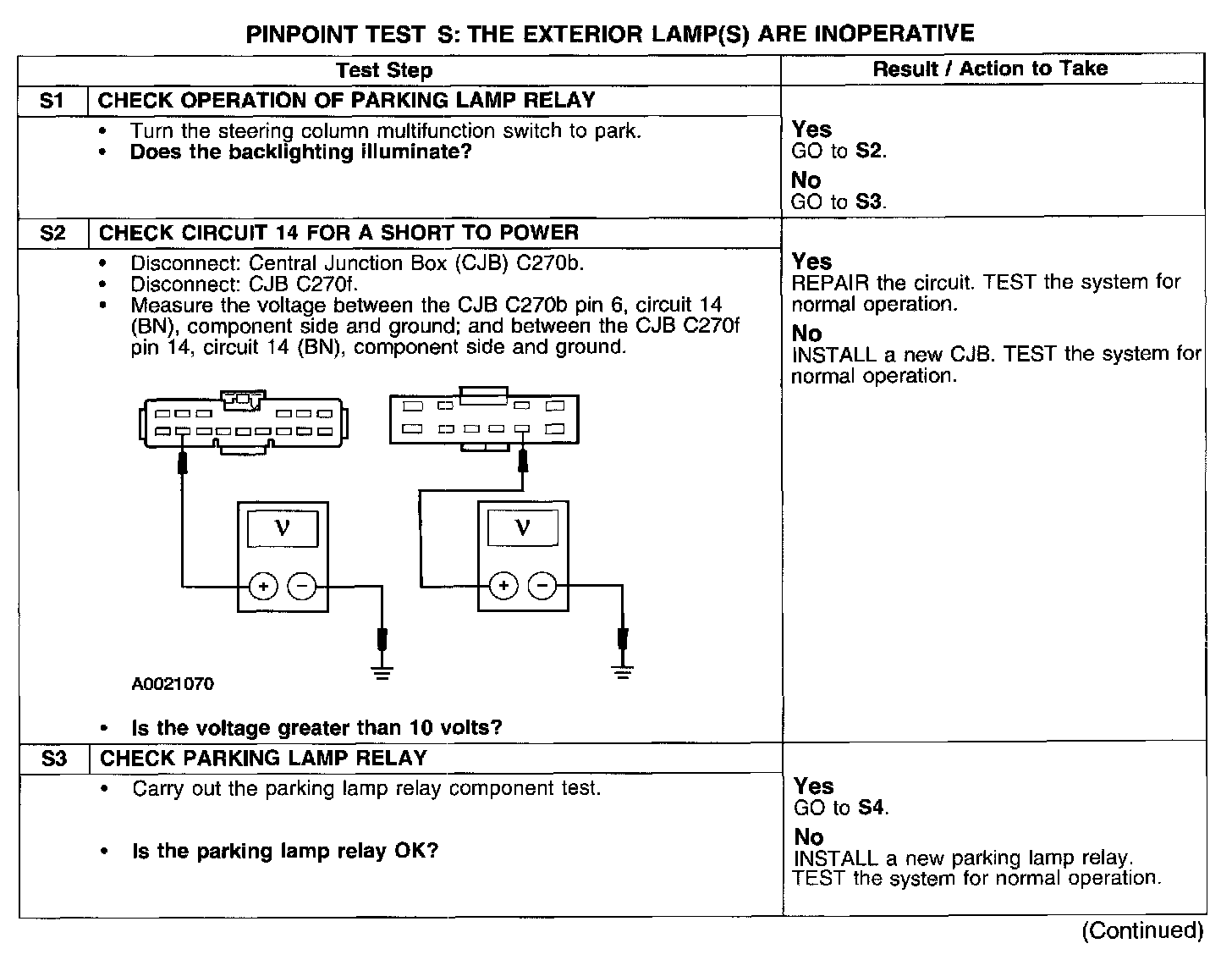

Test S1-S3:

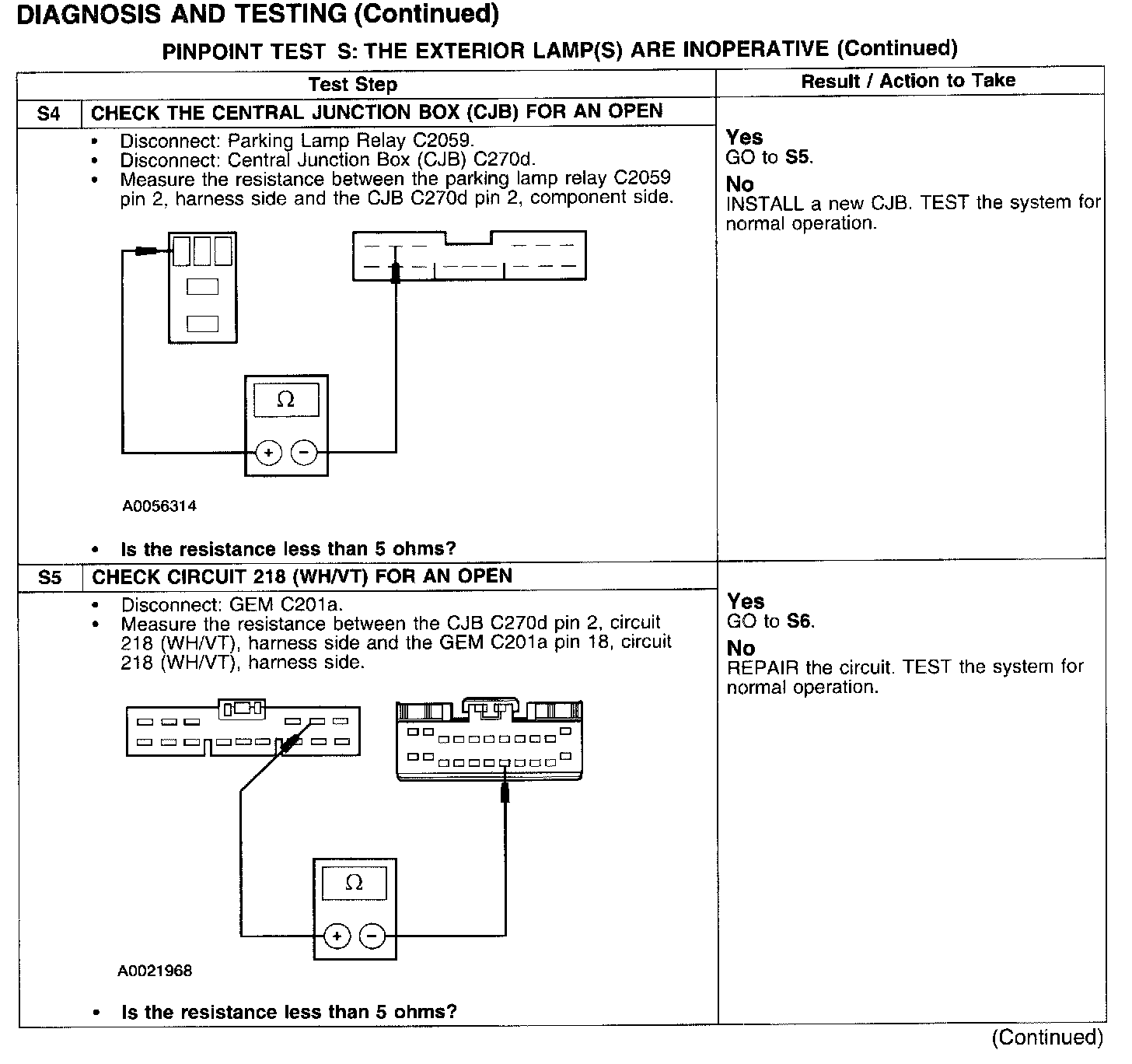

Test S4-S5:

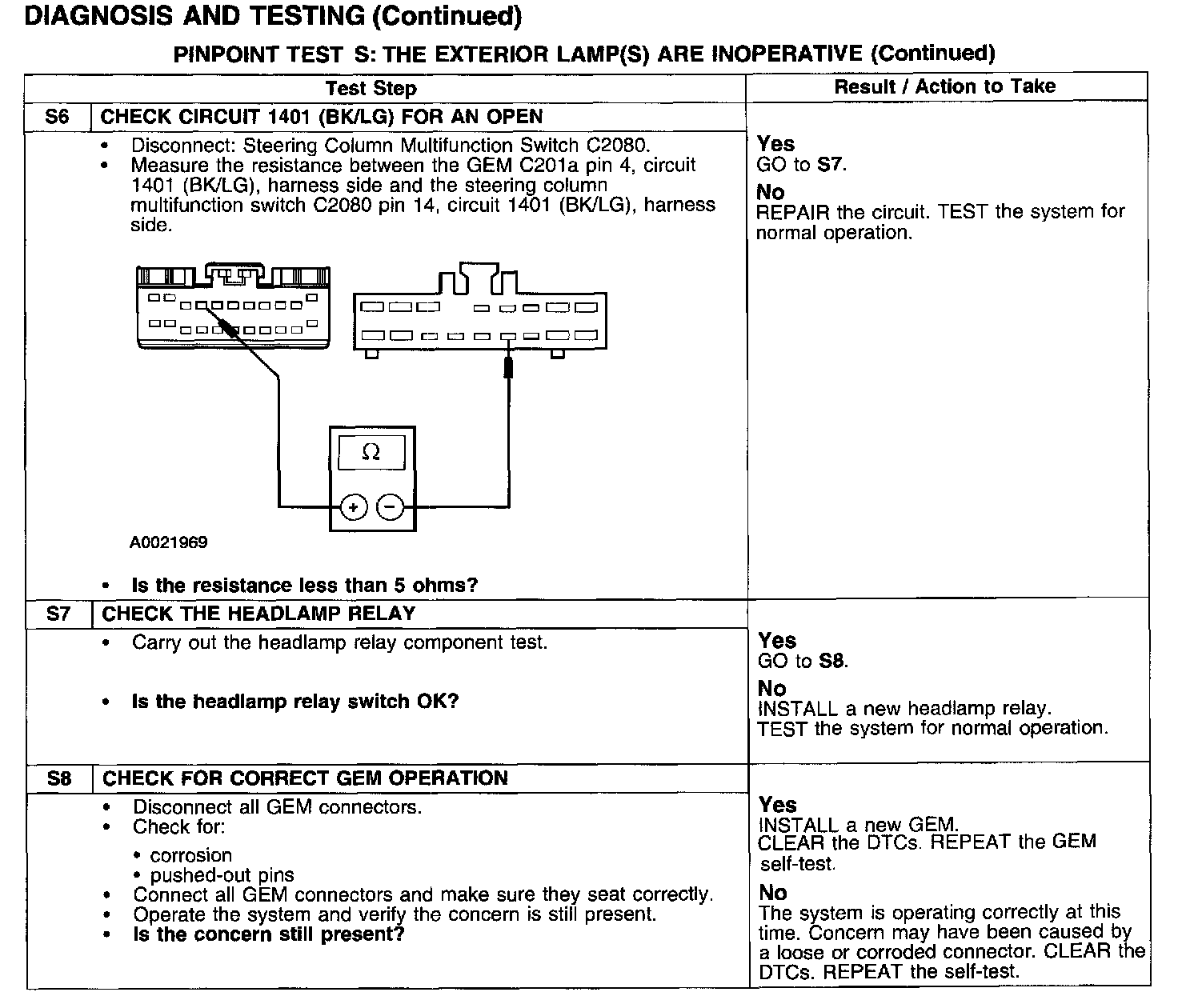

Test S6-S8:
