Autolamps

INSPECTION AND VERIFICATION

NOTE:
- The autolamp switch, photocell sensor and time delay control are integral to the interior rear view mirror.
- The interior rear view mirror is referred to as the photocell sensor.

1. Verify the customer concern.

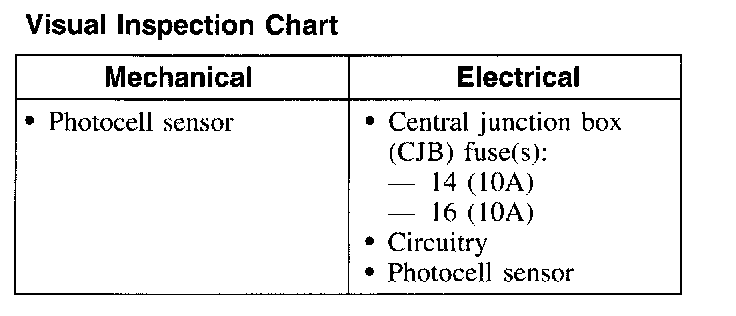

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If the fault is not visually evident, determine the symptom and proceed to the Symptom Chart. Autolamps
