Headlamp: Service and Repair

HEADLAMP ASSEMBLY

REMOVAL

1. NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

Remove the front bumper cover.

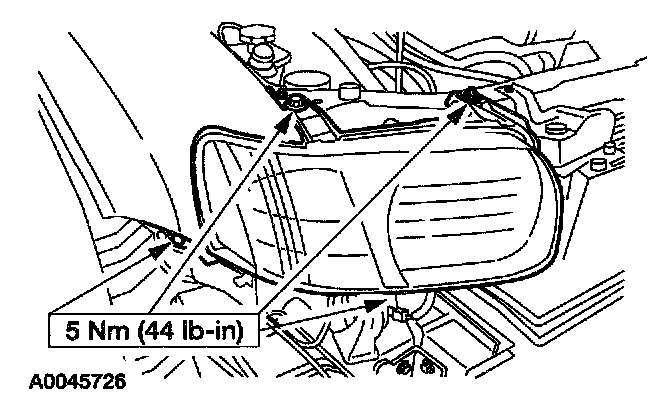

2. NOTE: Pull headlamp assembly forward to access electrical connectors.

Remove the headlamp assembly.
1 Remove the three bolts.
2 Loosen the nut.
- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
- If necessary, adjust the headlamps.
