Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Test X

Test X

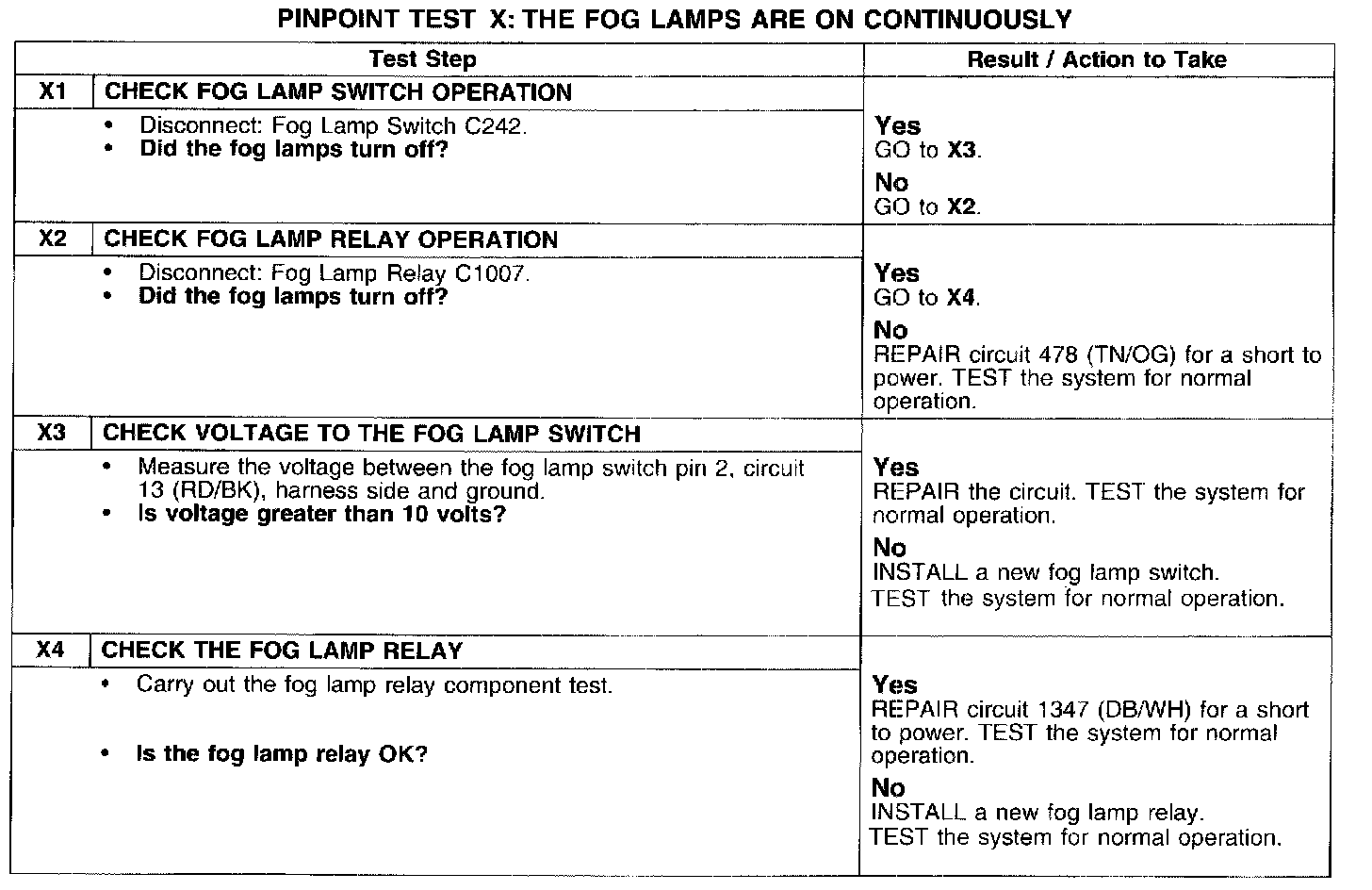

PINPOINT TEST X: THE FOG LAMPS ARE ON CONTINUOUSLY


Test X1-X4:
