Fog/Driving Lamp: Service and Repair

FOG LAMP

REMOVAL
1. Remove the tire and wheel.

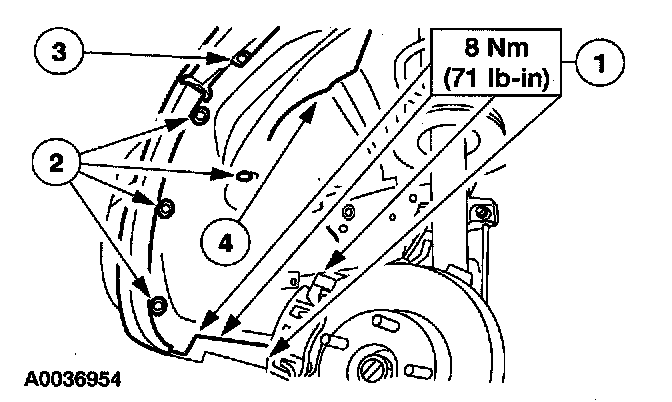

2. Position the inner fender well aside.
1 Remove the bolts.
2 Remove the pin-type retainers.
3 Remove the screws.
4 Position the inner fender well aside.

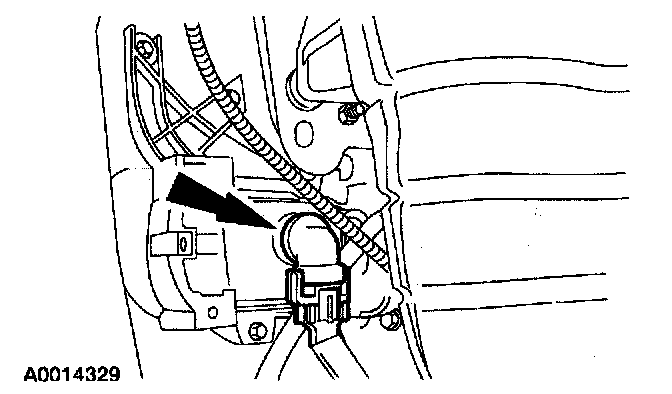

3. Disconnect the electrical bulb assembly and position aside.

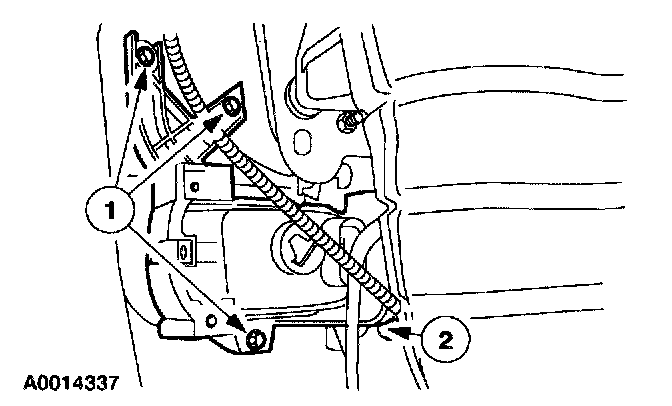

4. Remove the fog lamp assembly.
1 Remove the bolts.
2 Remove the fog lamp assembly.

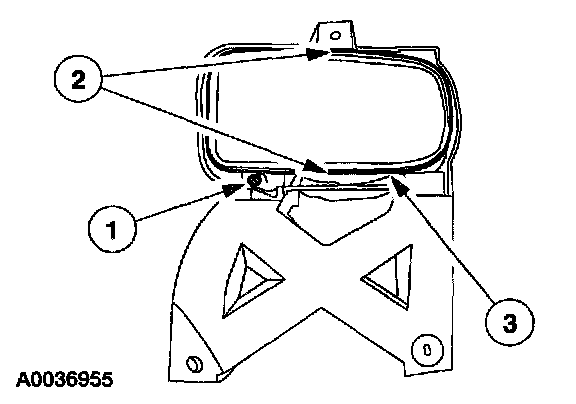

5. NOTE: This step may not be necessary if the fog lamp comes with bracket.

Remove the fog lamp from the fog lamp bracket.
1 Remove the adjusting screw and spring.
2 Squeeze the top and bottom of the fog lamp bracket.
3 Remove the fog lamp from the fog lamp bracket.

INSTALLATION
1. To install, reverse the removal procedure.
