Initial Inspection and Diagnostic Overview

INSPECTION AND VERIFICATION

1. Verify the customer concern by operating the daytime running lamps (DRL).

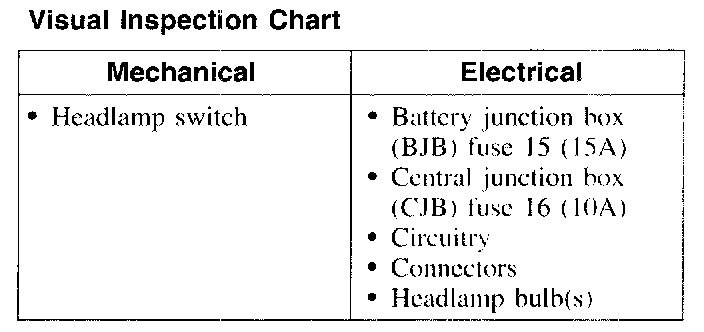

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical and electrical damage using the chart.
3. If the fault is not visually evident, verify the symptom and proceed to the Symptom Chart. Symptom Related Diagnostic Procedures
