Cargo Lamp: Service and Repair

CARGO LAMP

REMOVAL
1. Disconnect the battery ground cable.

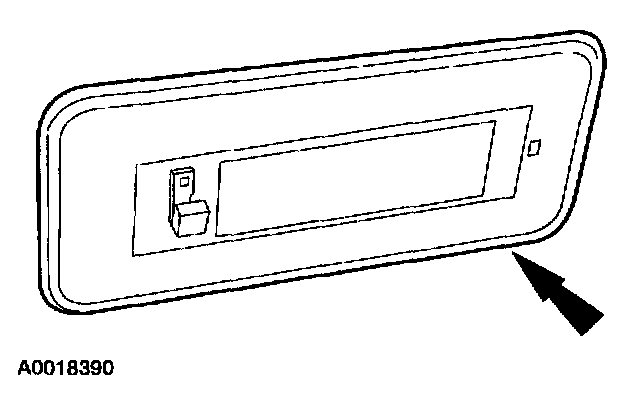

2. Remove the cargo lamp assembly from the headliner.







3. Remove the cargo lamp assembly.

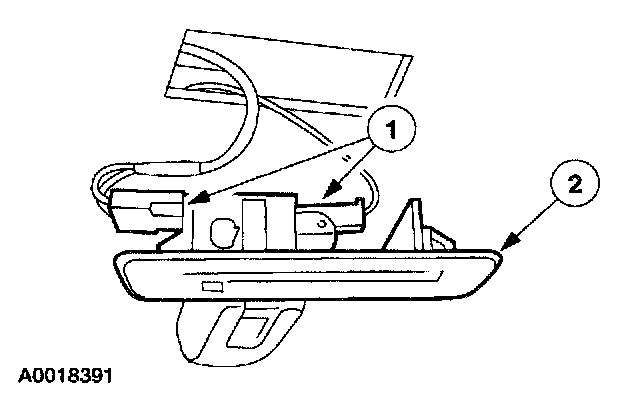

1 Disconnect the electrical connectors.
2 Remove the cargo lamp assembly.

INSTALLATION
1. To install, reverse the removal procedure.
