Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Testing and Inspection >> Pinpoint Tests >> Tests AA

Tests AA

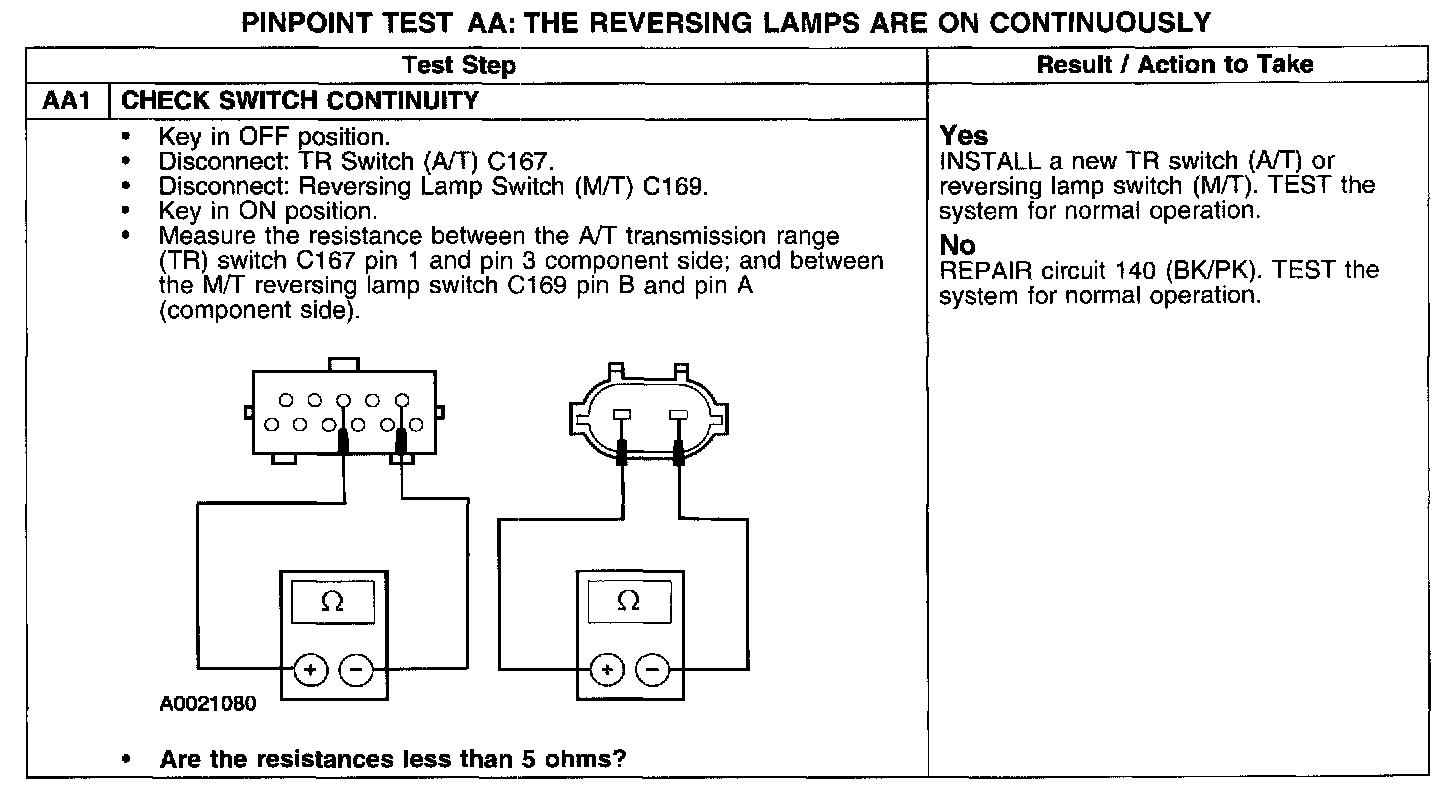

PINPOINT TEST AA: THE REVERSING LAMPS ARE ON CONTINUOUSLY


Test AA1:
