Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Warning Devices >> Test C

Test C

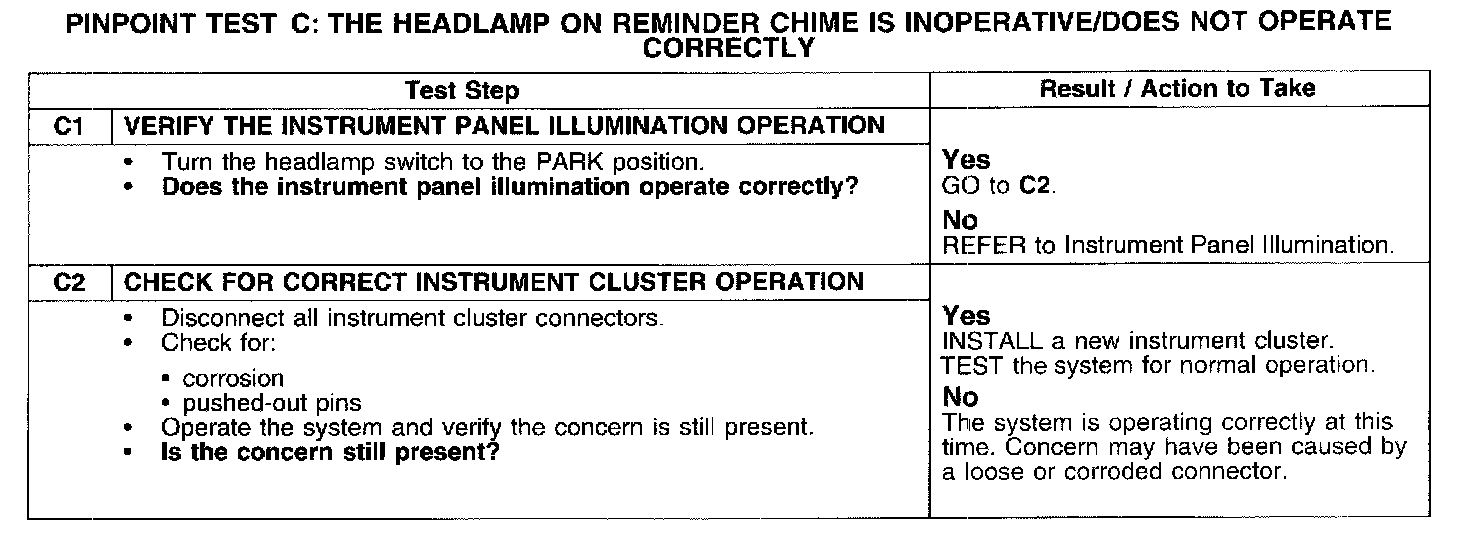

PINPOINT TEST C: THE HEADLAMP ON REMINDER CHIME IS INOPERATIVE/DOES NOT OPERATE CORRECTLY


Test C1-C2:
