PINPOINT TEST C: THE INSTRUMENT PANEL ILLUMINATION DOES NOT DIM
Test C1-C3:

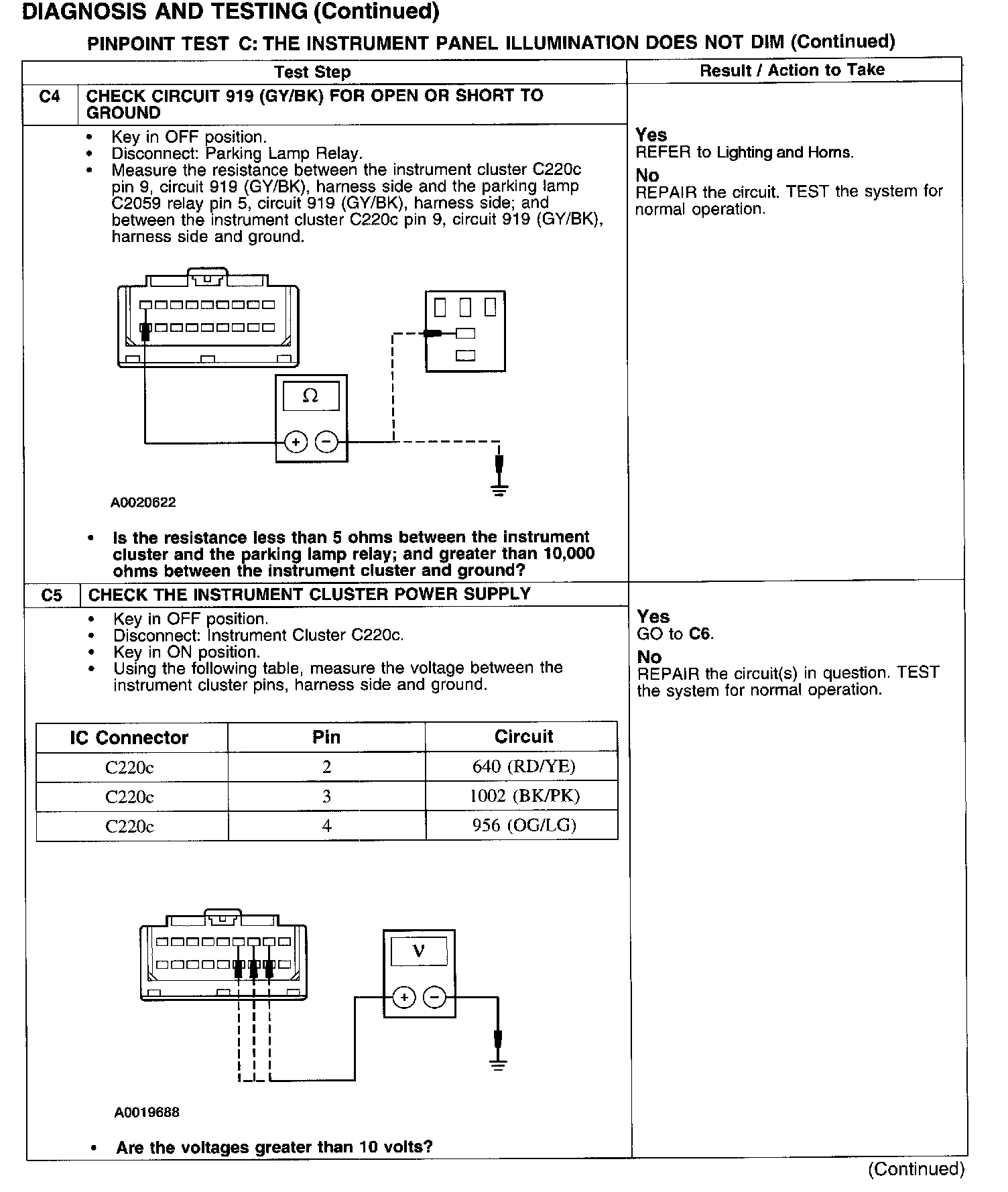

Test C4-C5:

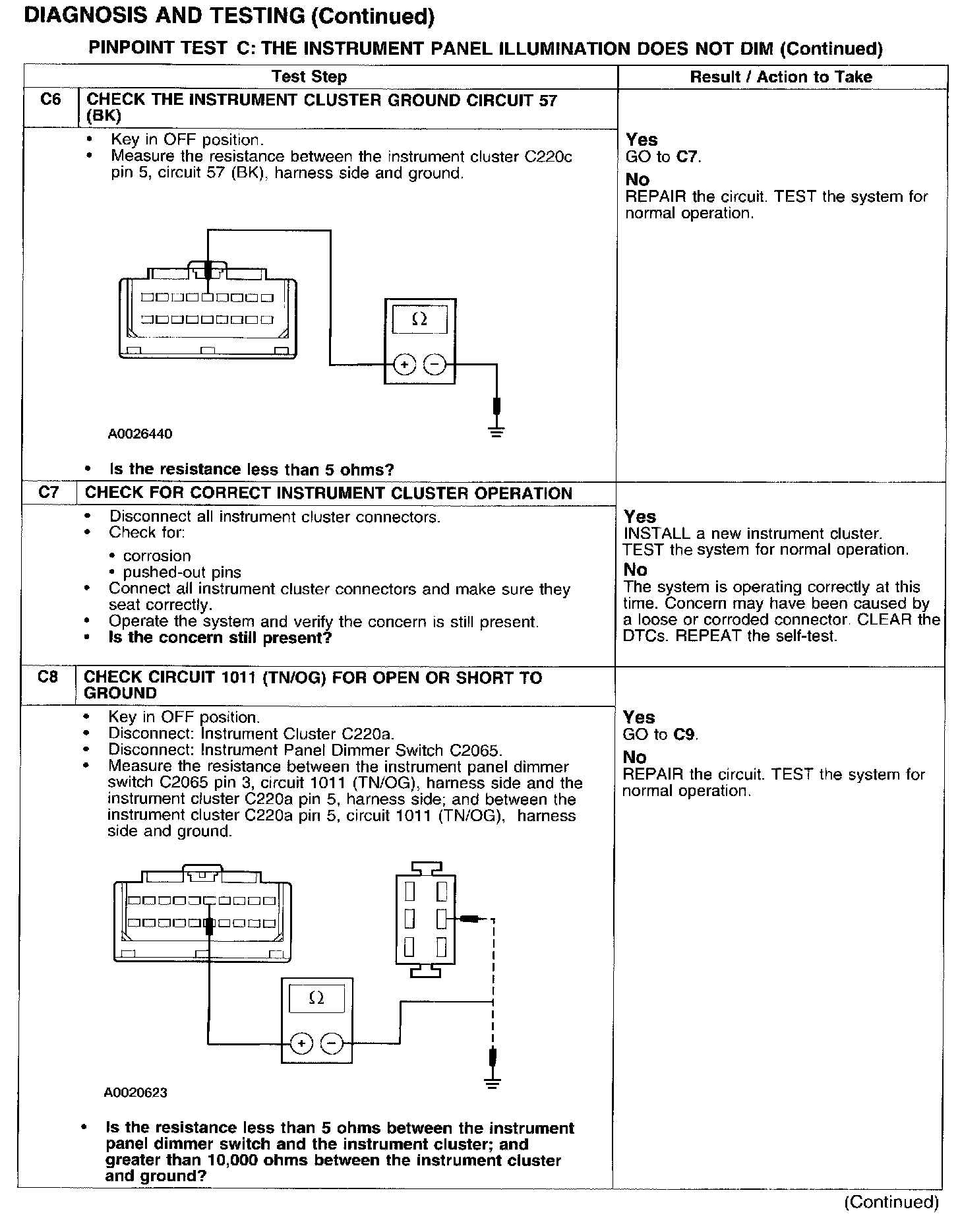

Test C6-C8:

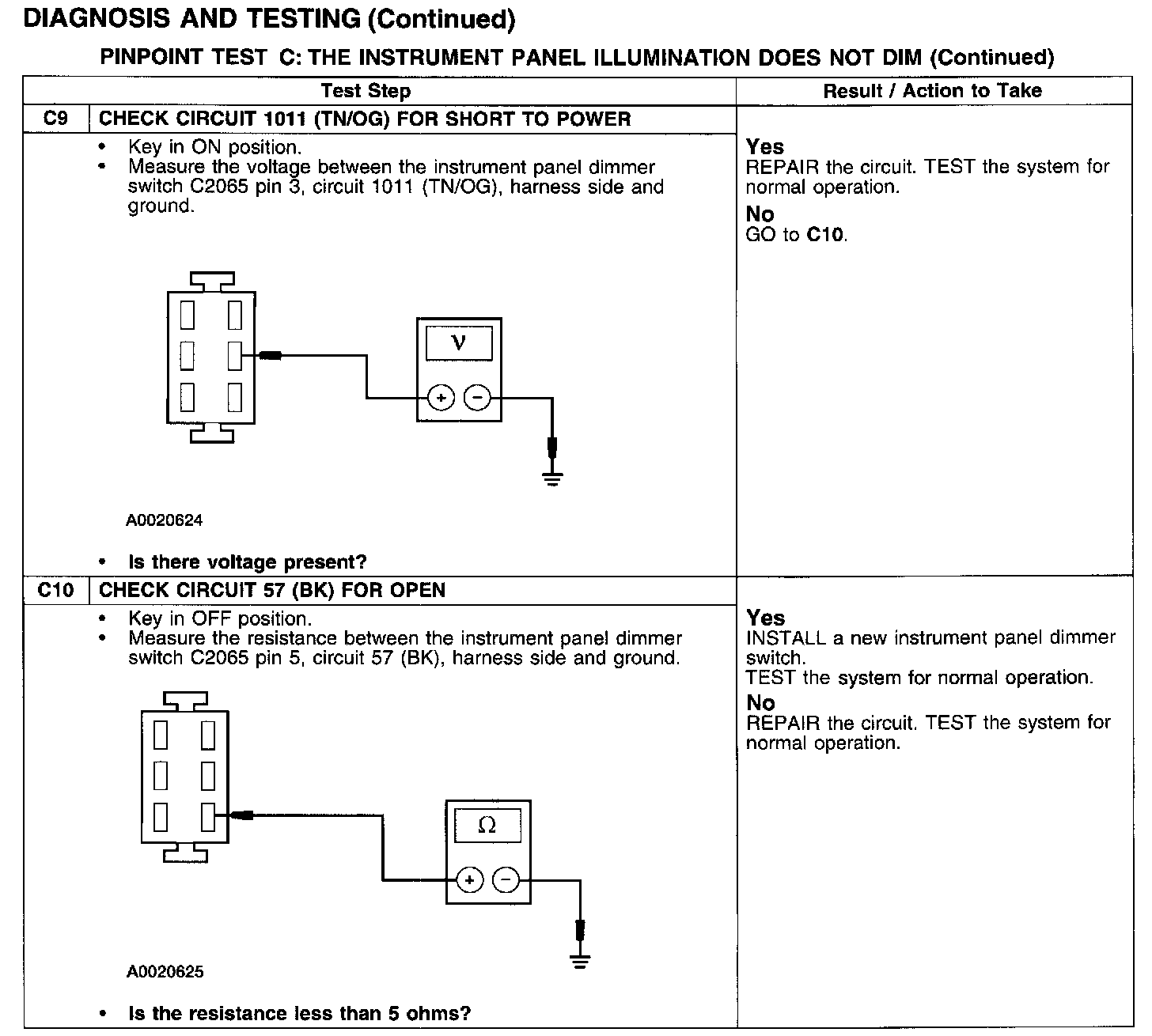

Test C9-C10:
