Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test Y

Test Y

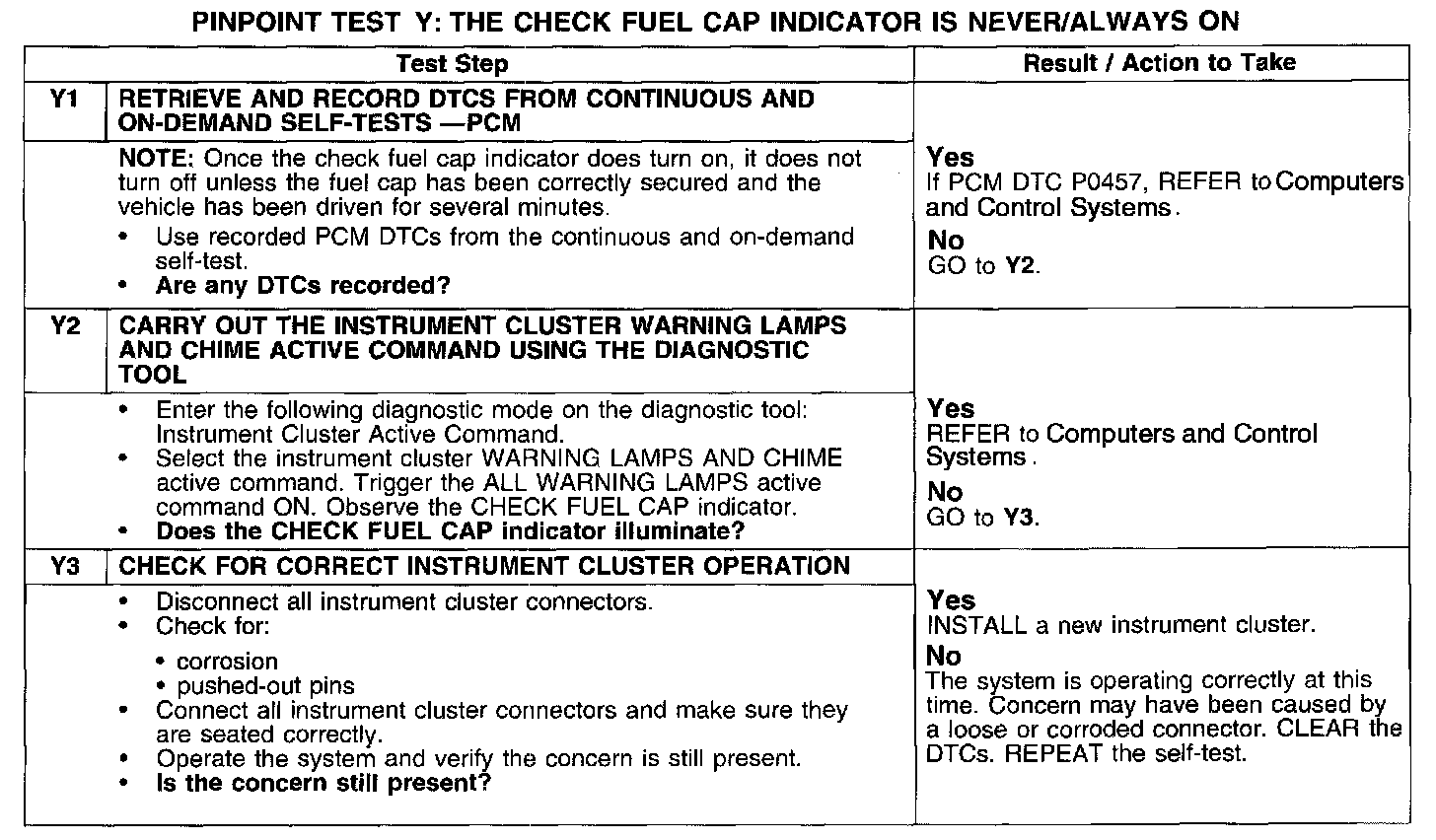

PINPOINT TEST Y: THE CHECK FUEL CAP INDICATOR IS NEVER/ALWAYS ON


Test Y1-Y3:
