Ford Truck
>>
2003
>>
Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test W
Test W

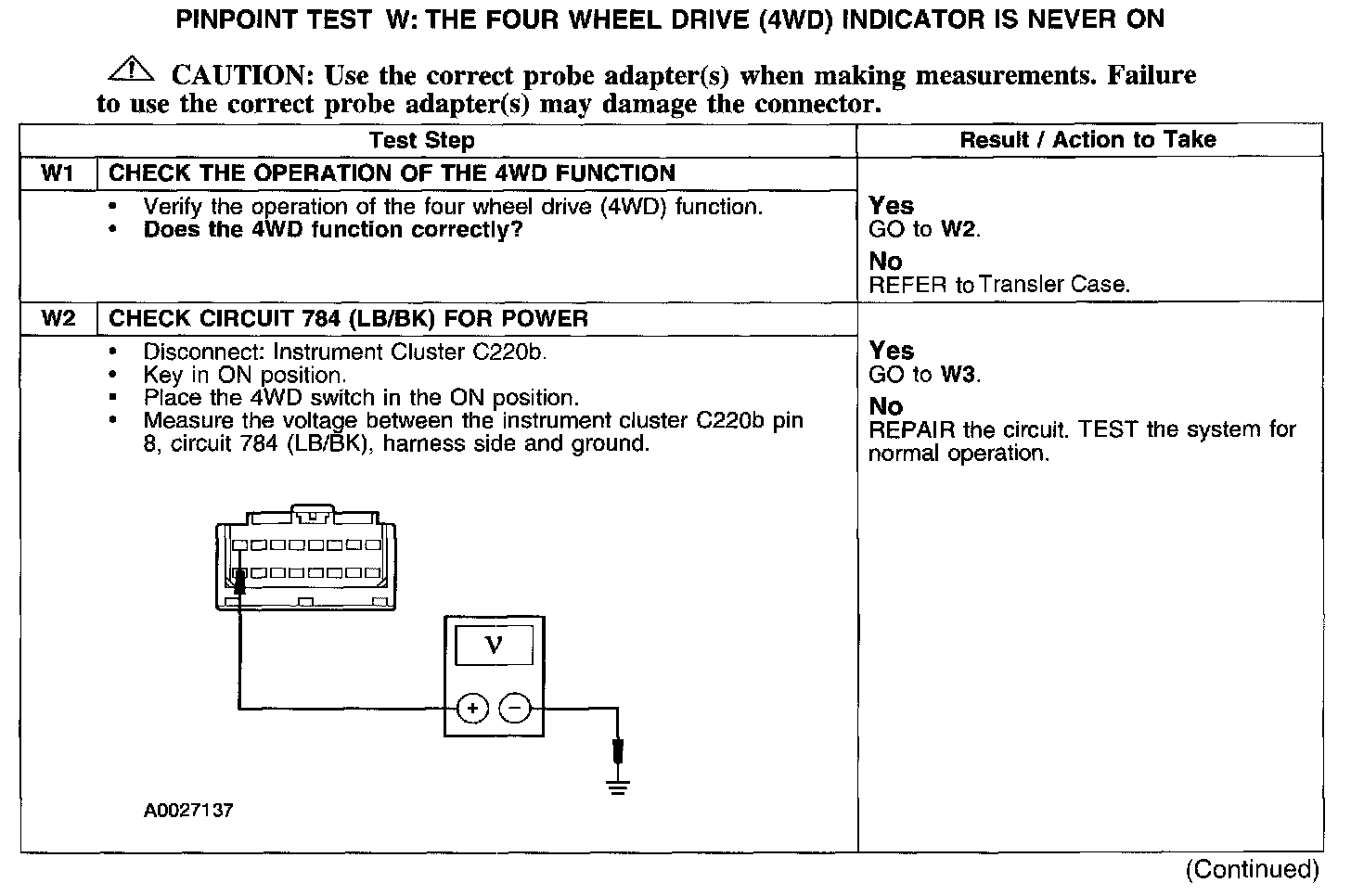

PINPOINT TEST W: THE FOUR WHEEL DRIVE (4WD) INDICATOR IS NEVER ON
Test W1-W2:

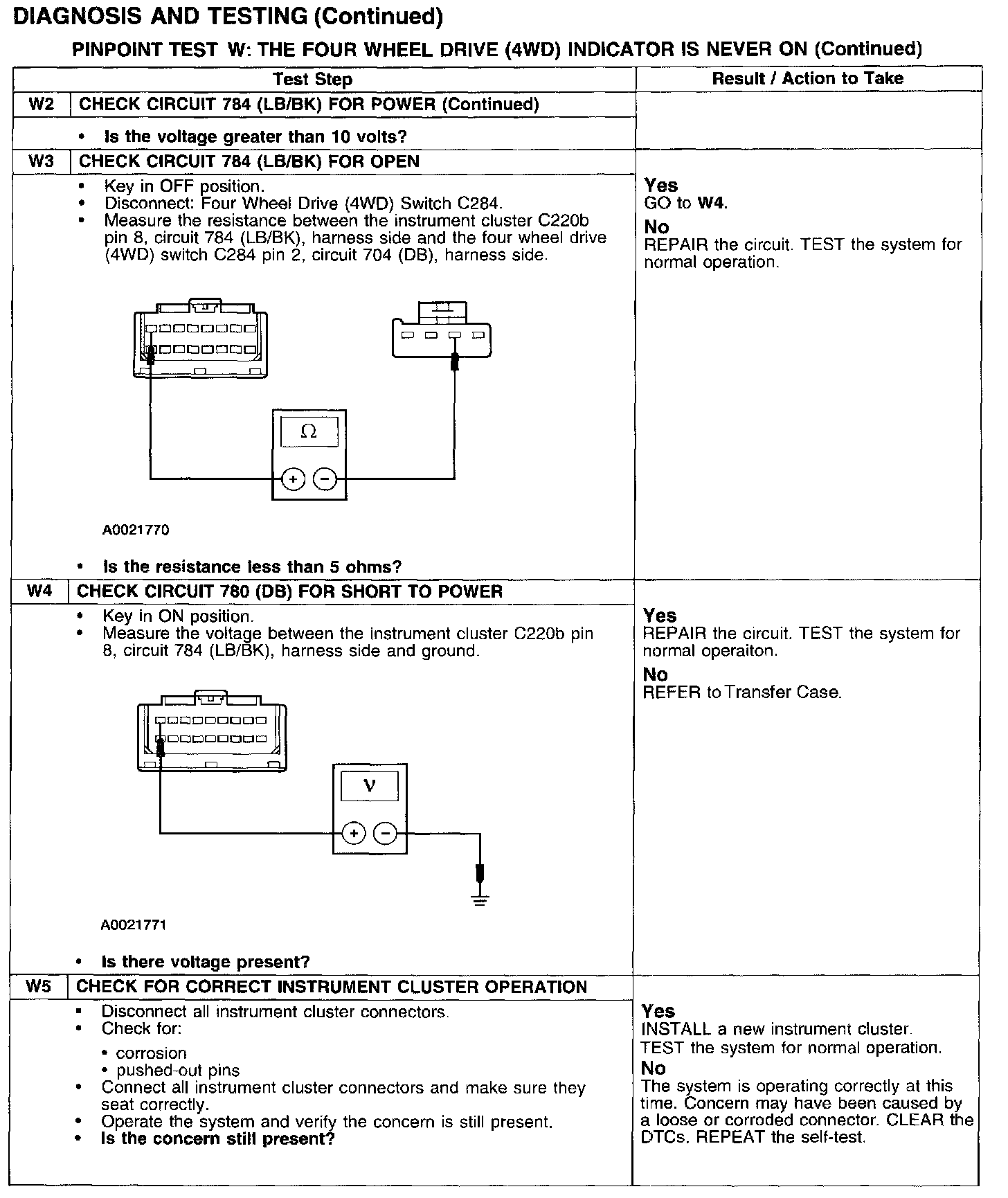

Test W2-W5:
