Test S
Test S
PINPOINT TEST S: THE LOW COOLANT WARNING INDICATOR IS NEVER/ALWAYS ON - 3.0L (4V) ENGINE

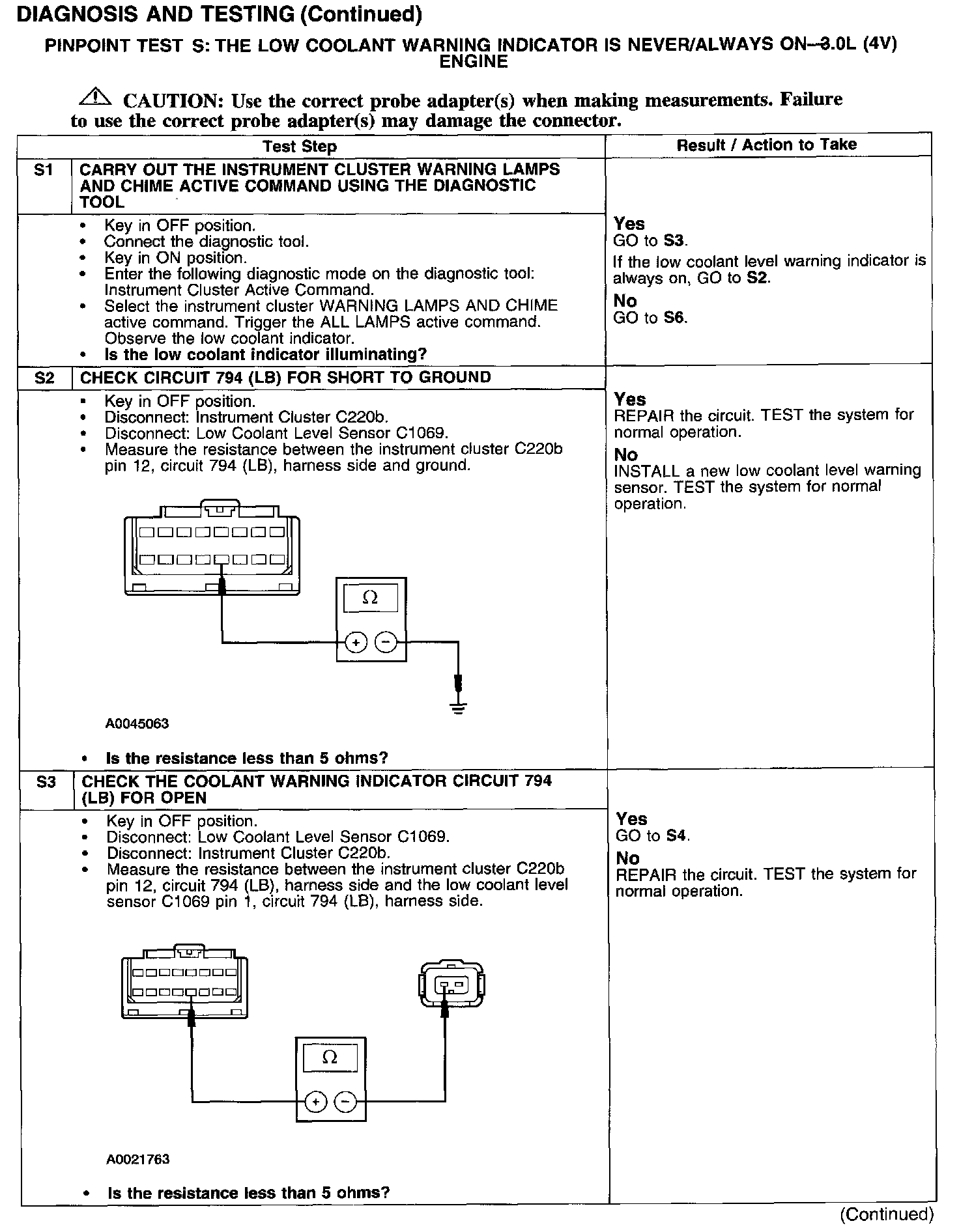

Test S1-S3:

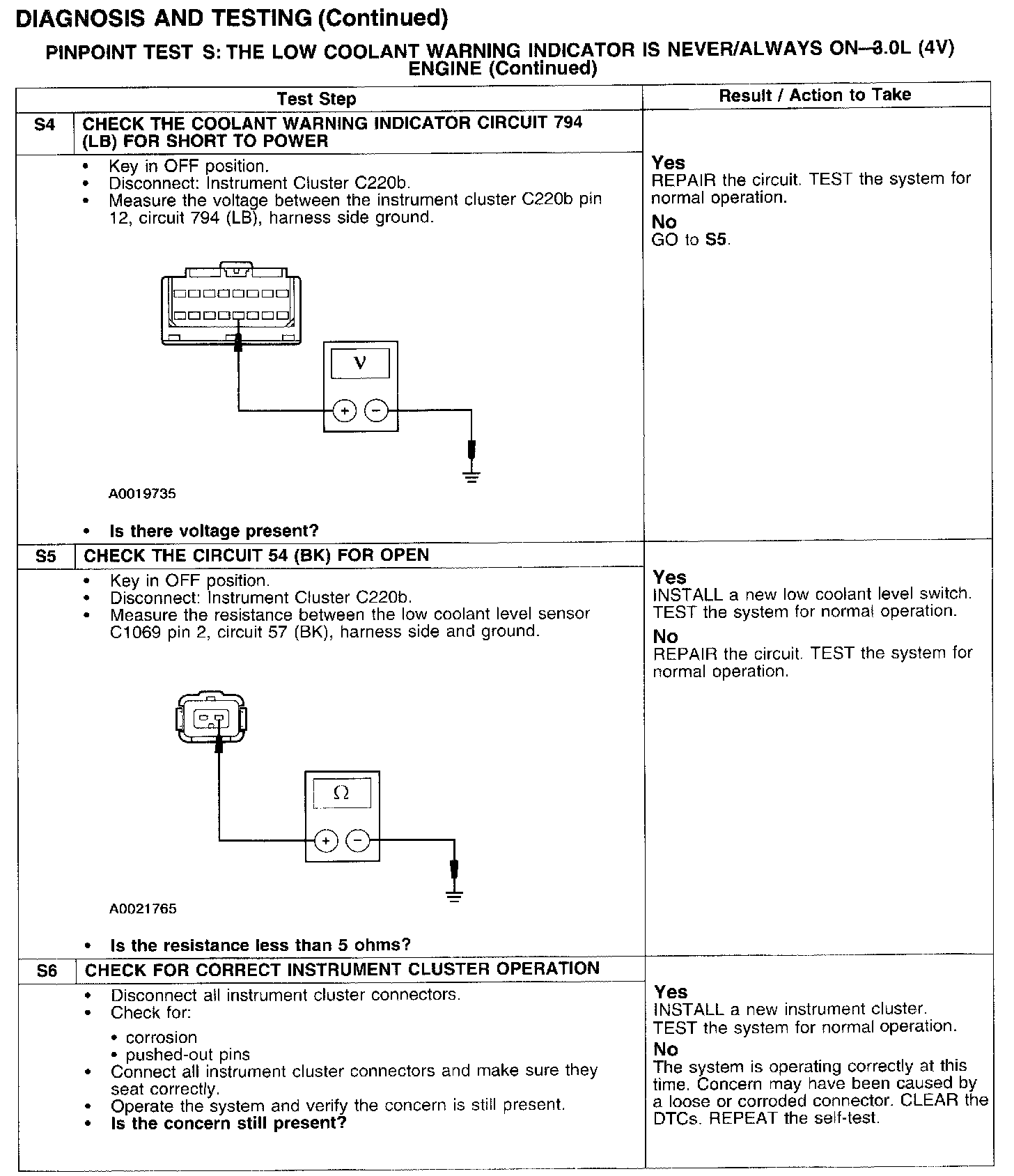

Test S4-S6:
