Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test O
Test O
PINPOINT TEST O: THE LH TURN INDICATOR IS NEVER ON

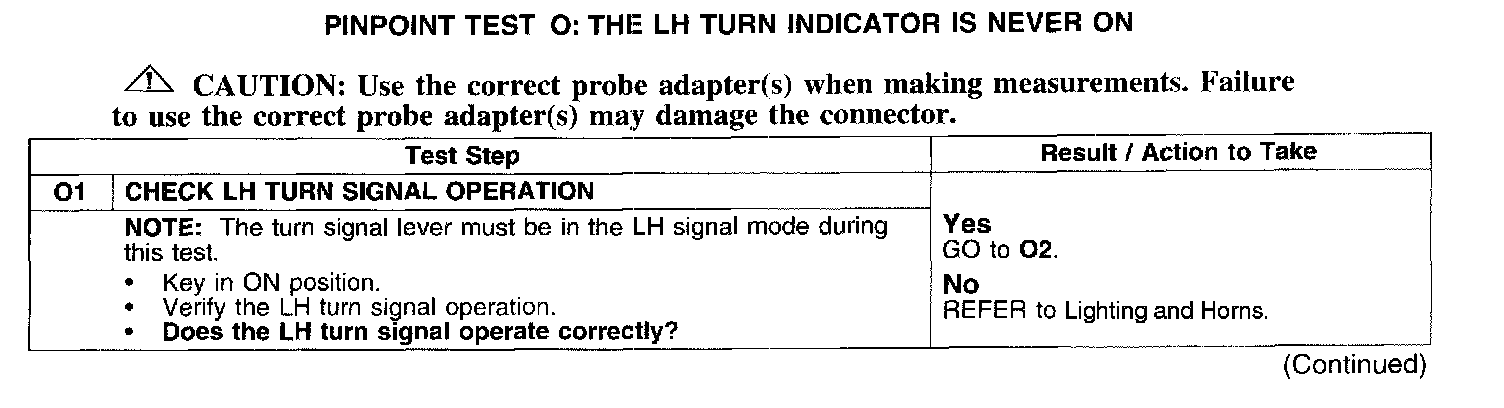

Test O1:

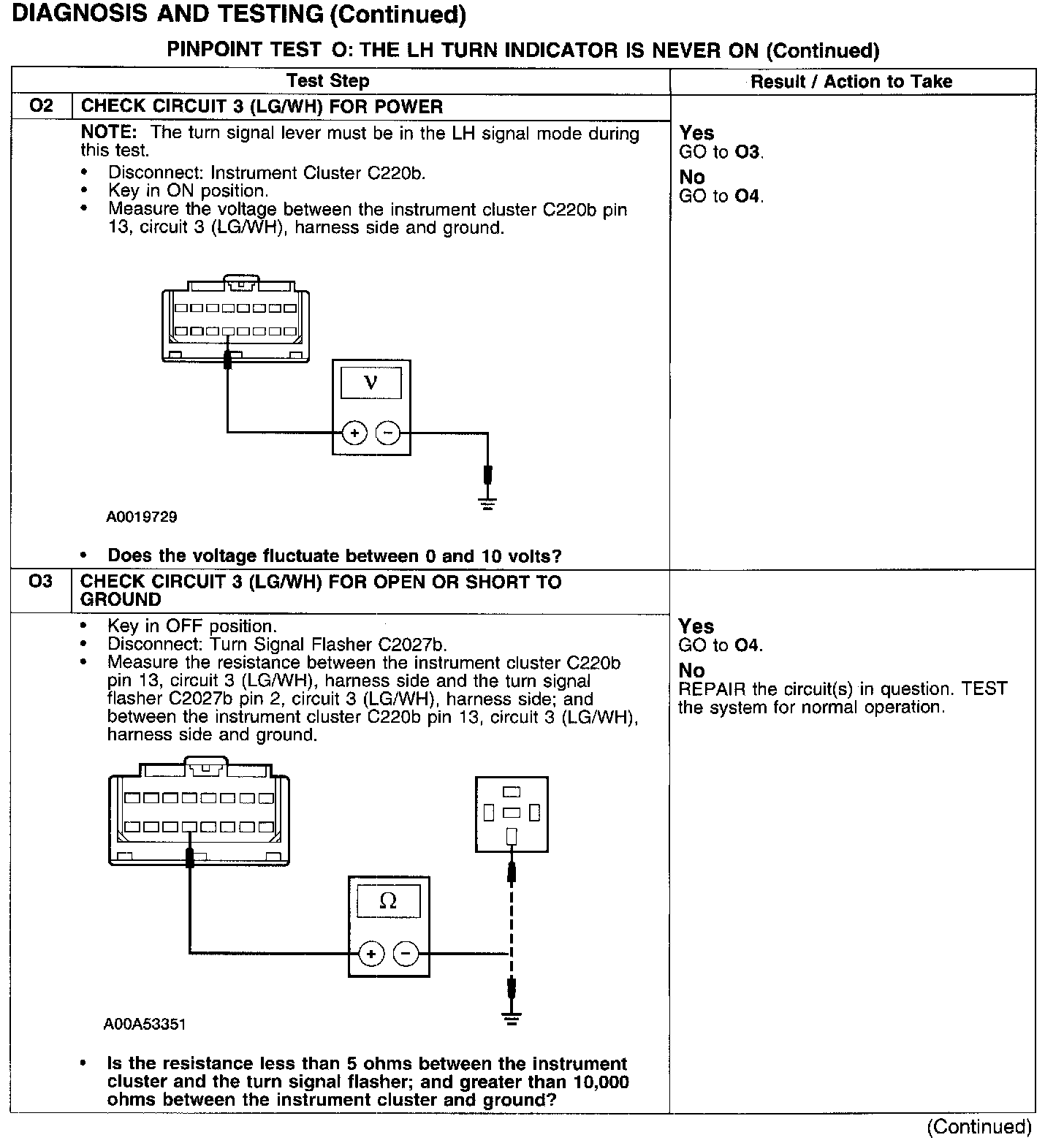

Test O2-O3:

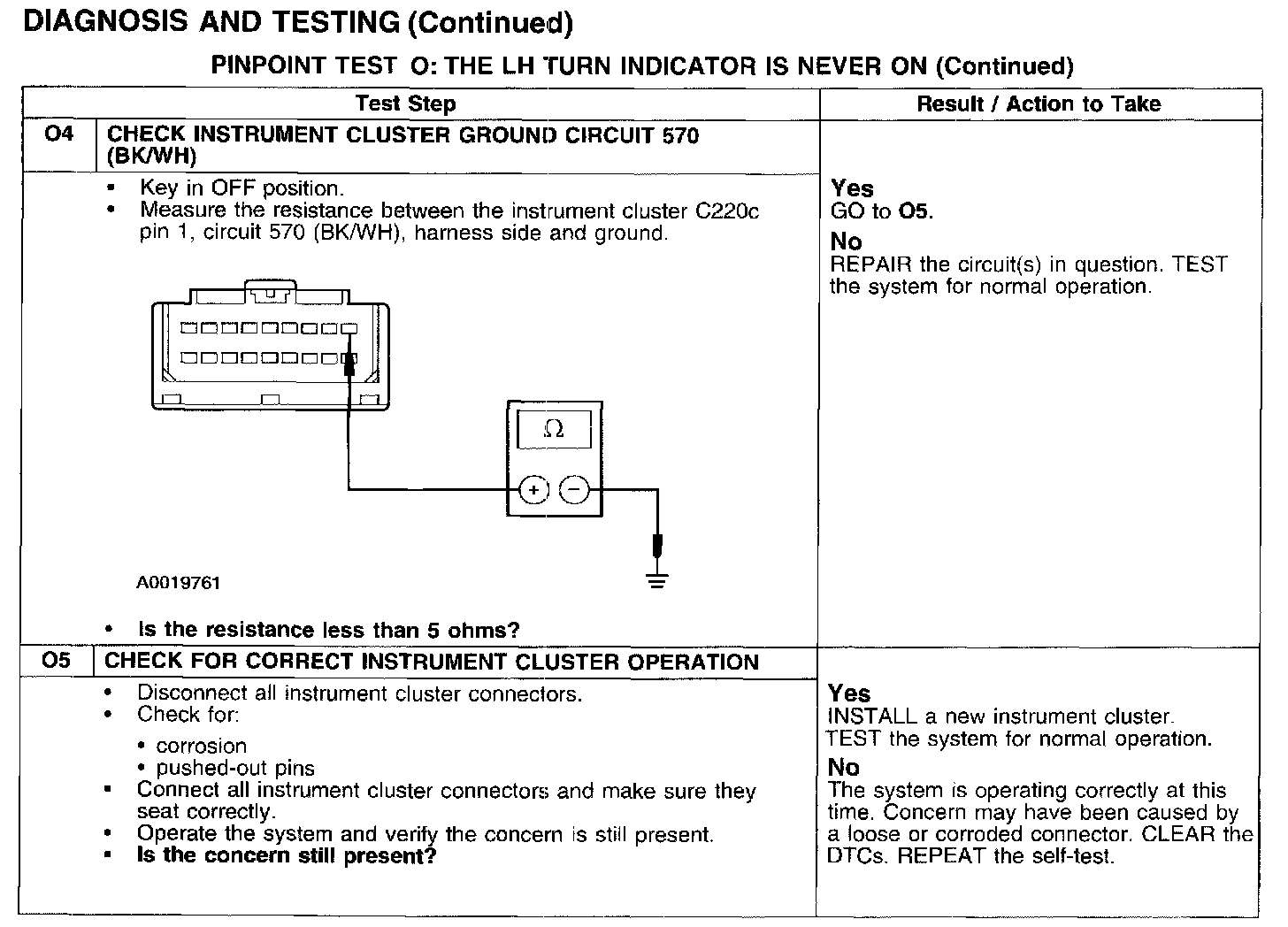

Test O4-O5:
