Pinpoint Tests - Instrument Cluster
>>
Test L
Test L
PINPOINT TEST L: THE LOW OIL PRESSURE INDICATOR IS NEVER/ALWAYS ON

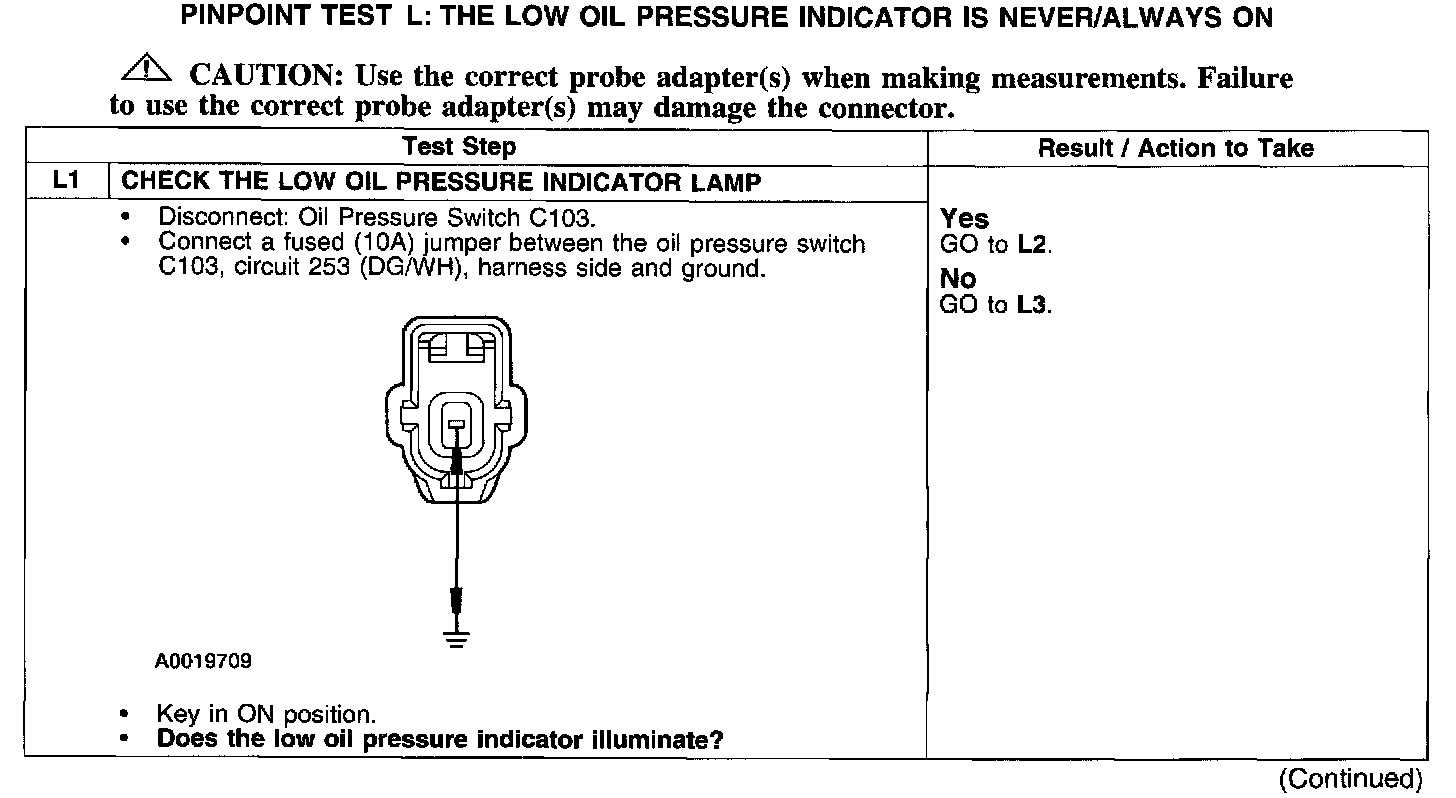

Test L1:

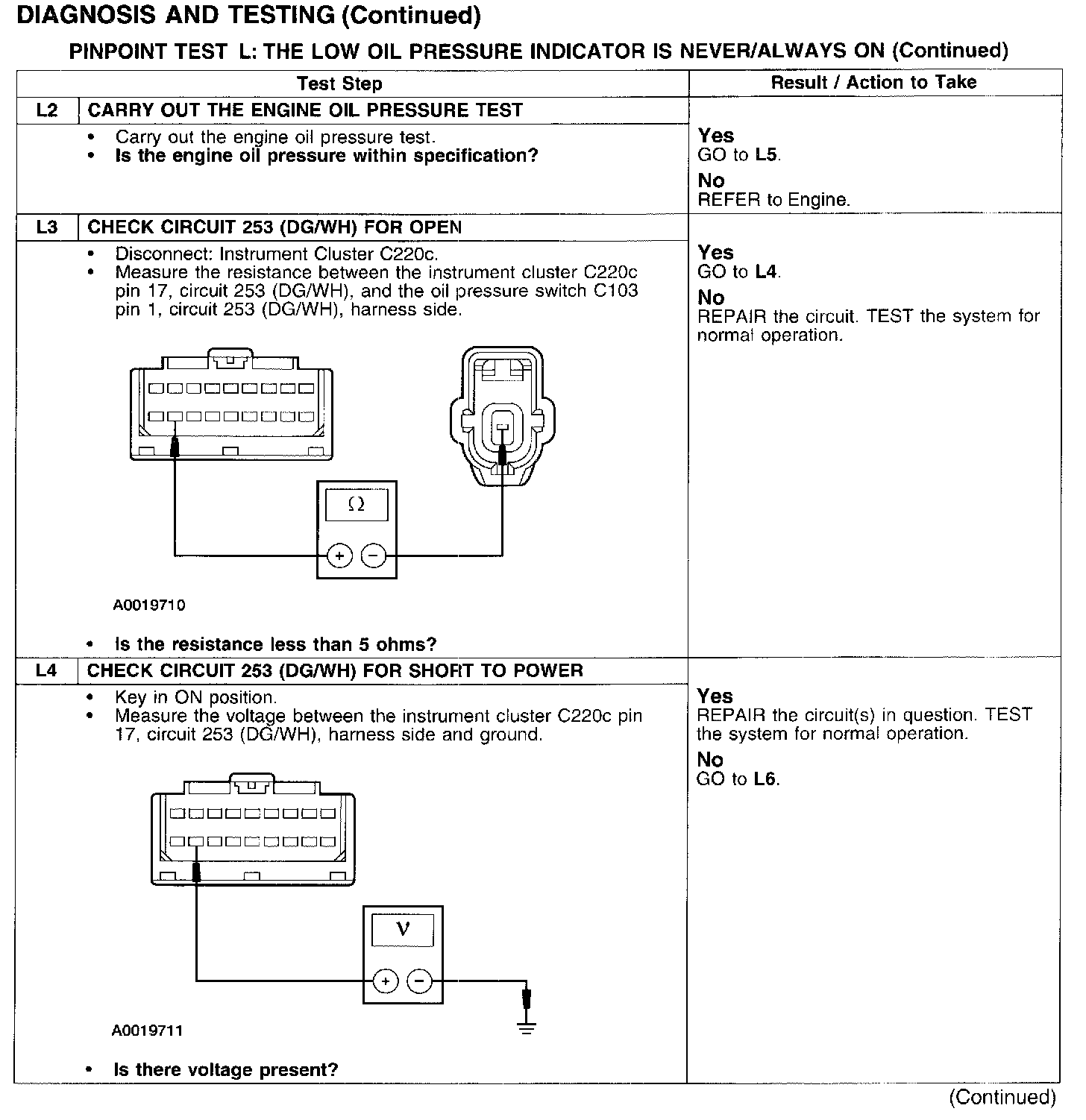

Test L2-L4:

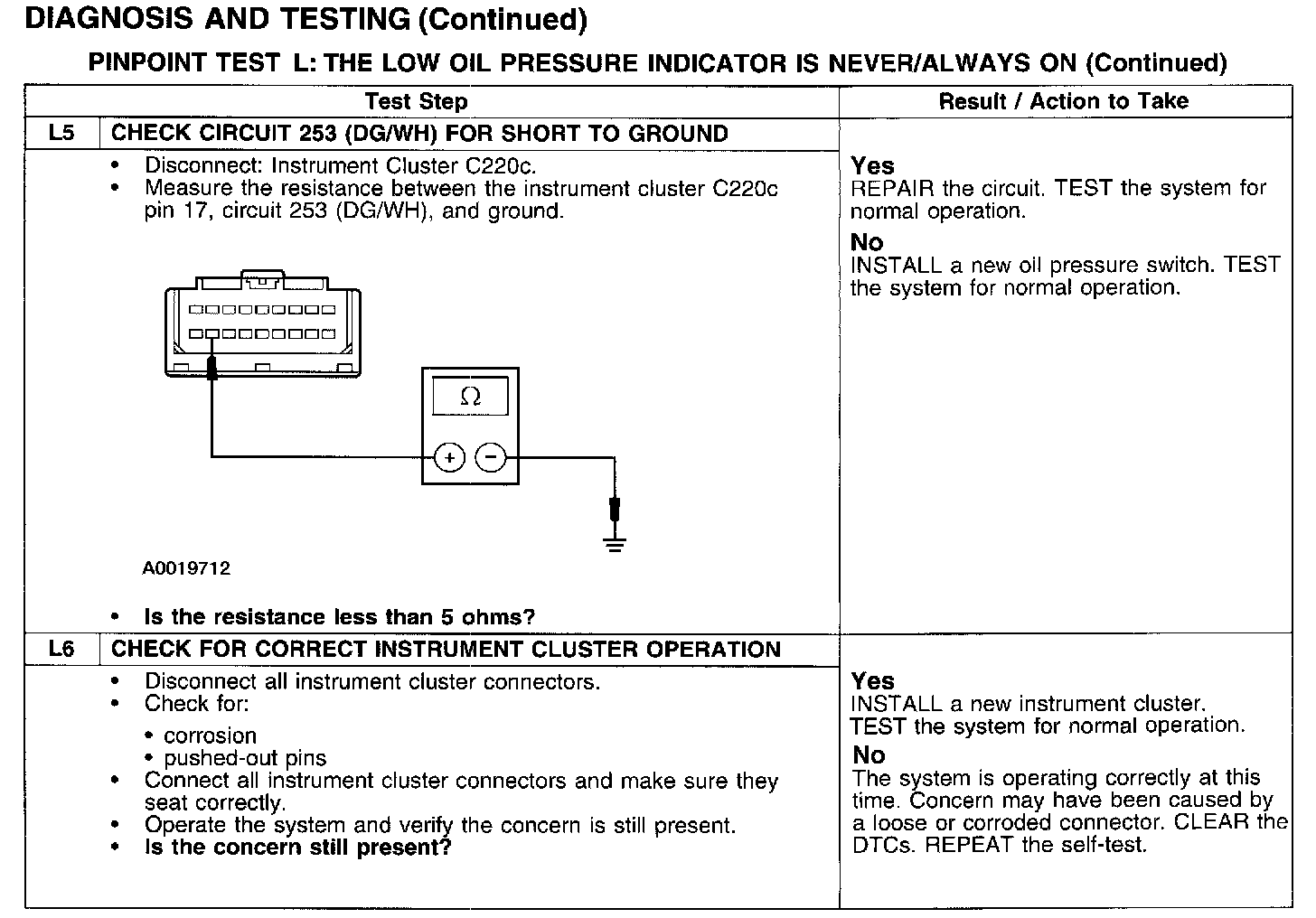

Test L5-L6:
