Test K

PINPOINT TEST K: THE CHARGING SYSTEM WARNING INDICATOR IS NEVER ON


Test K1-K3:

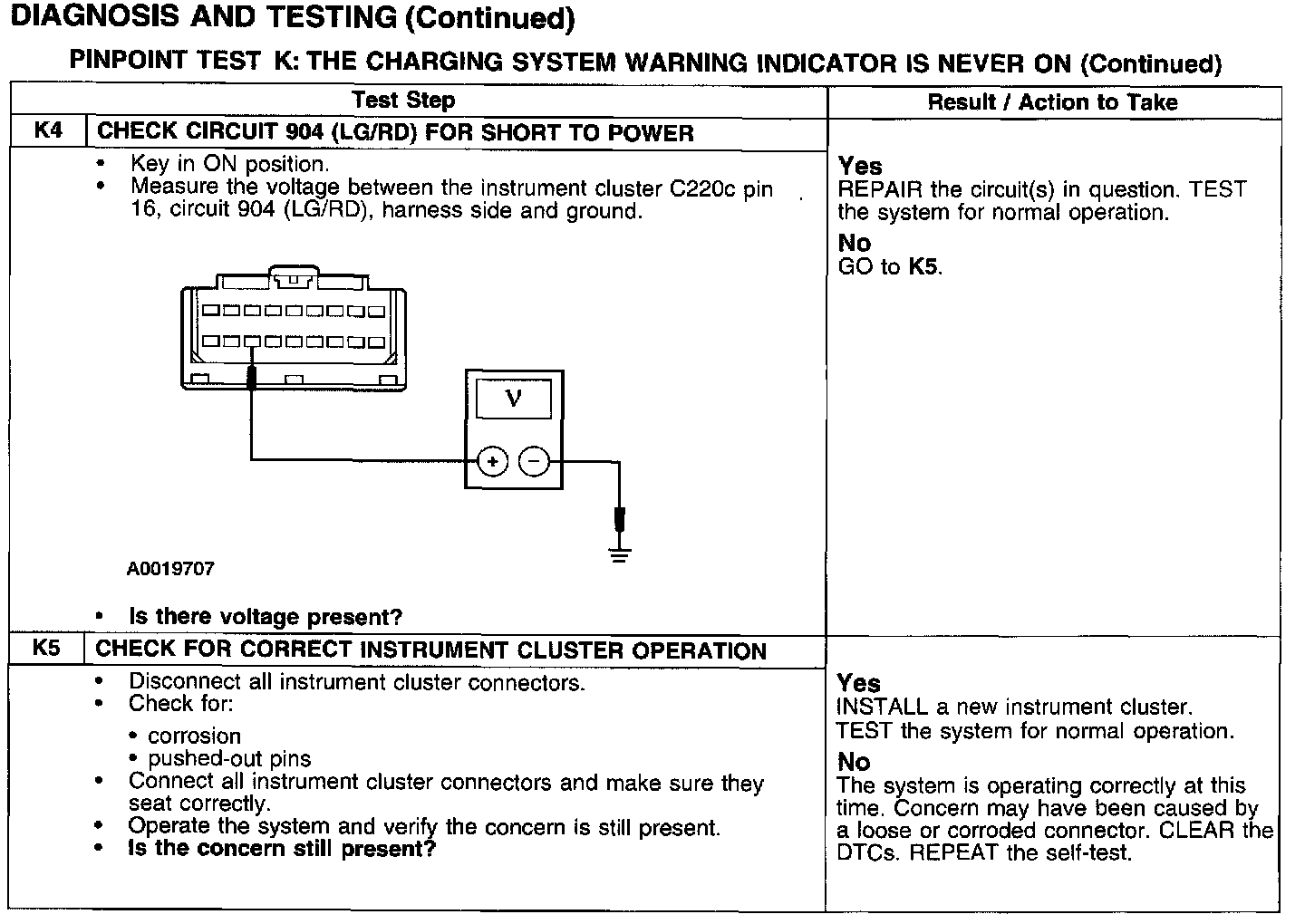

Test K4-K5:
