FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test G
Test G
PINPOINT TEST G: THE
BRAKE WARNING INDICATOR
IS NEVER/ALWAYS ON

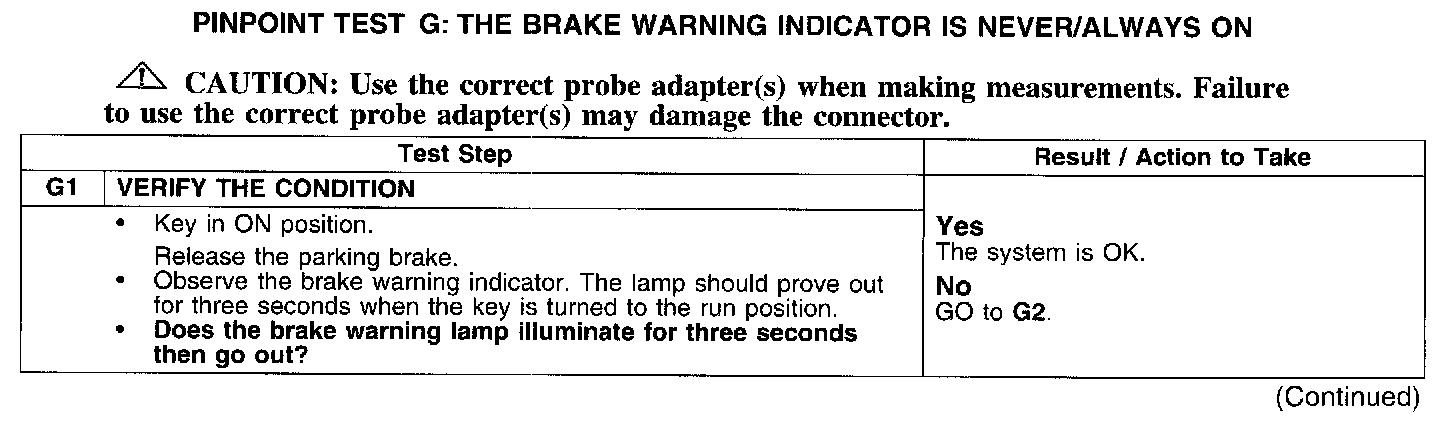

Test G1:

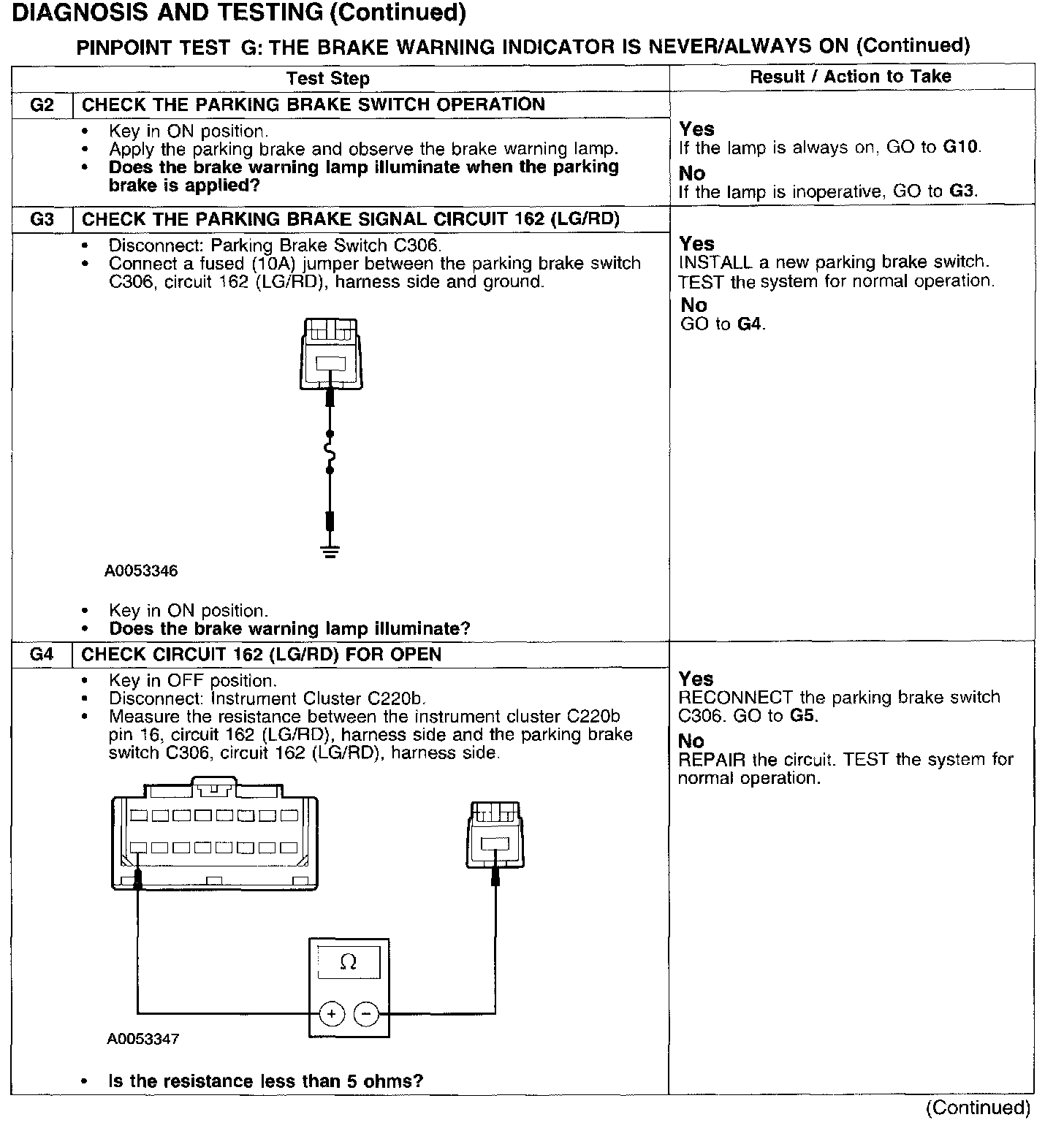

Test G2-G4:

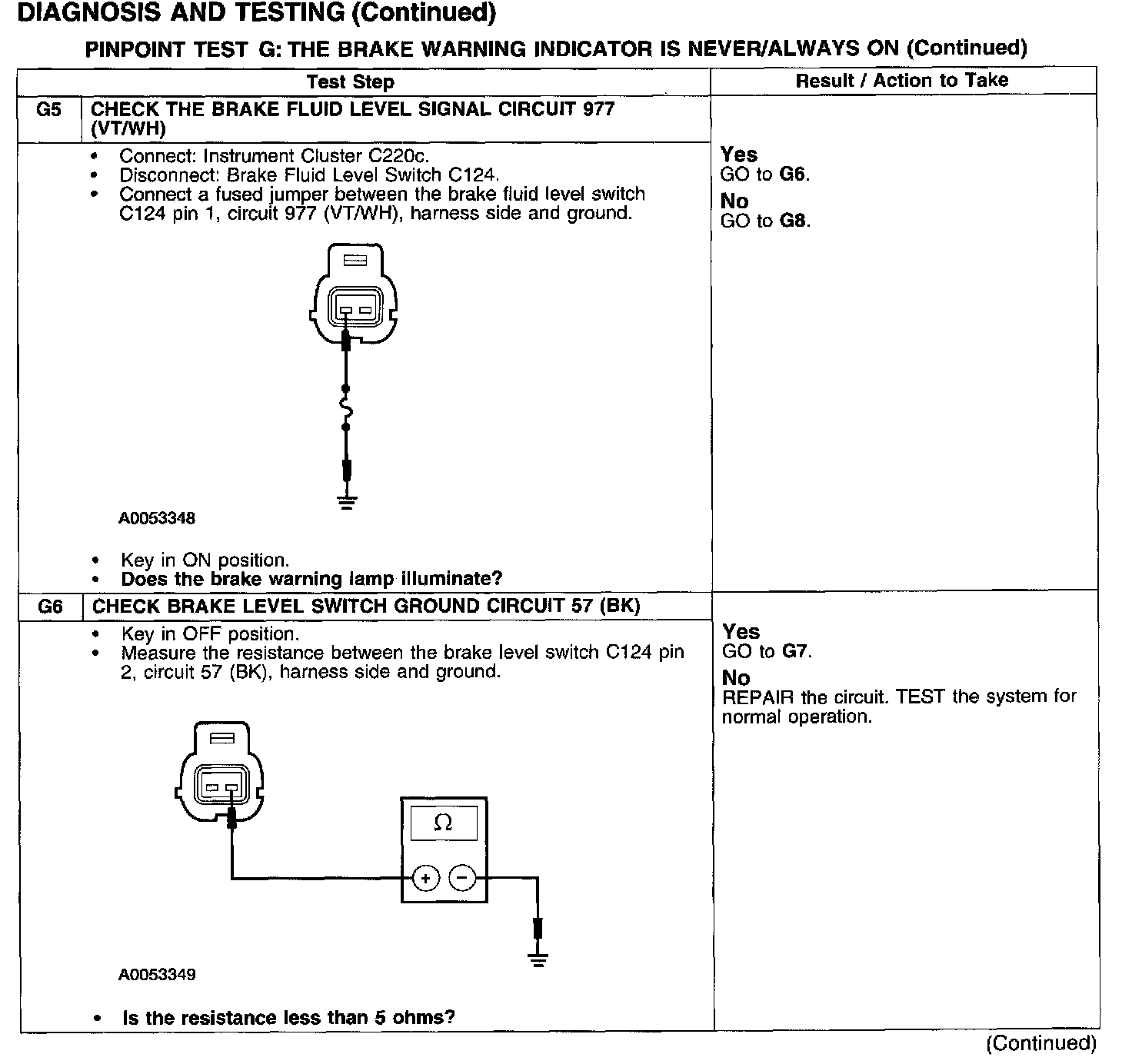

Test G5-G6:

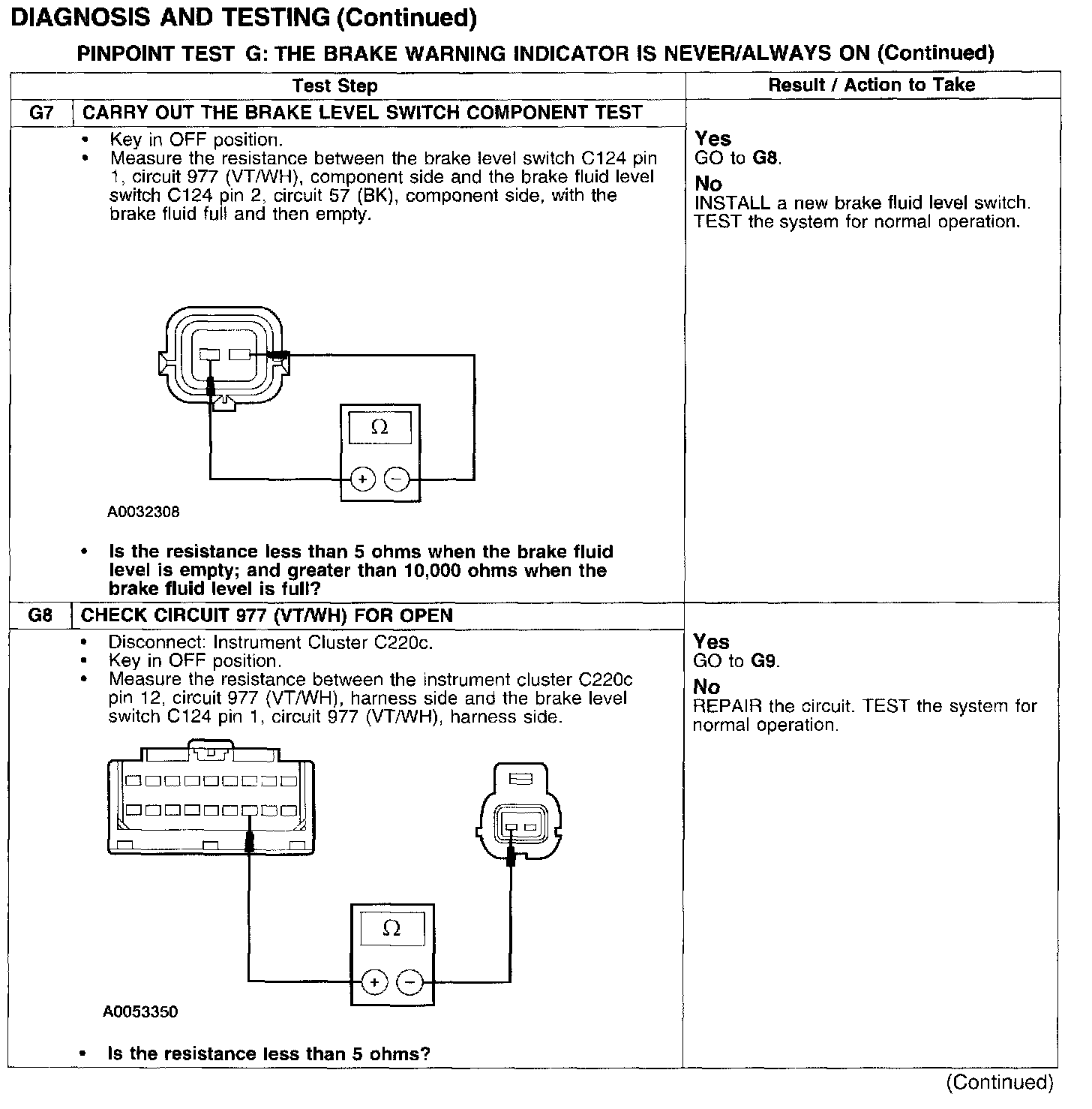

Test G7-G8:

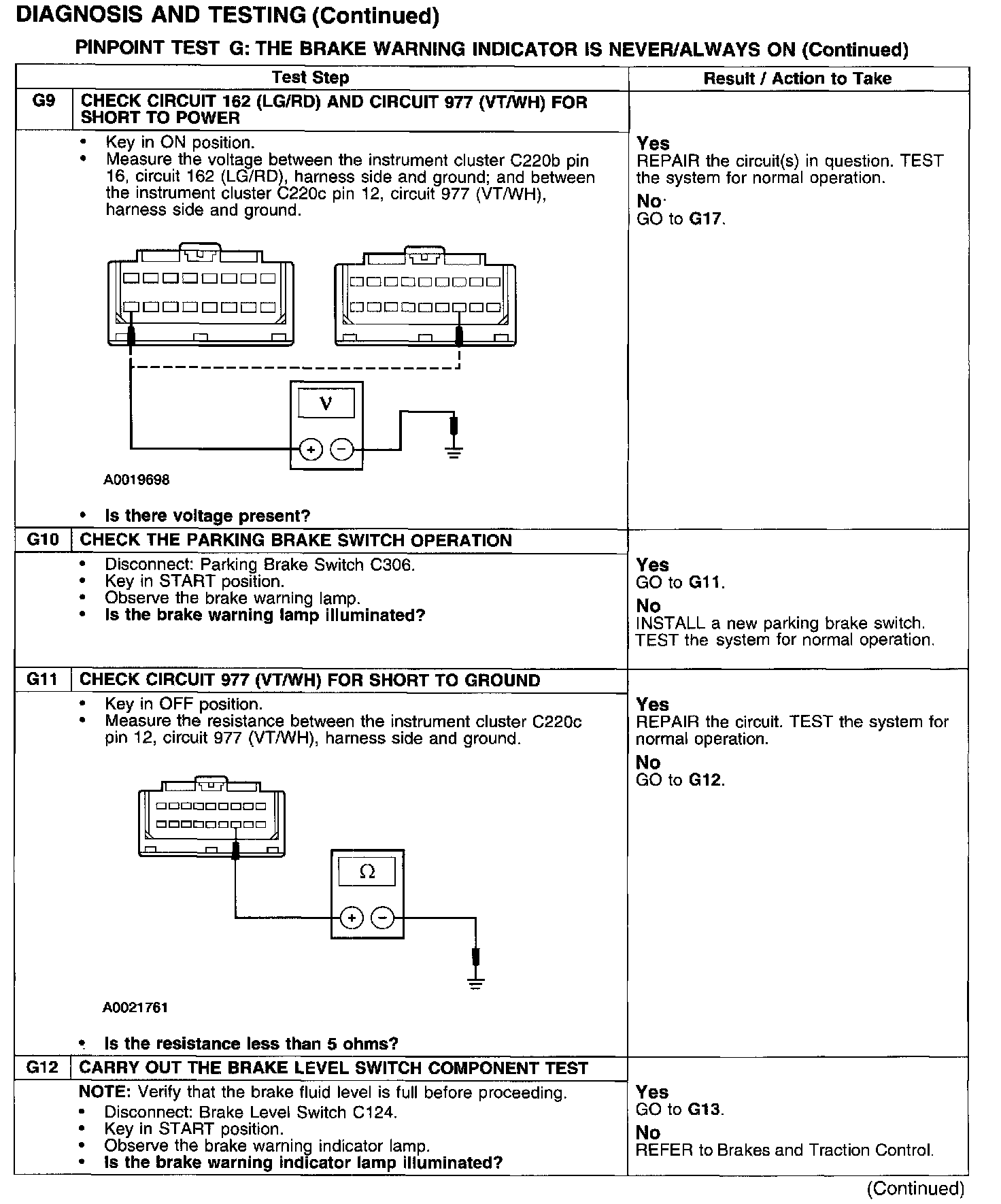

Test G9-G12:

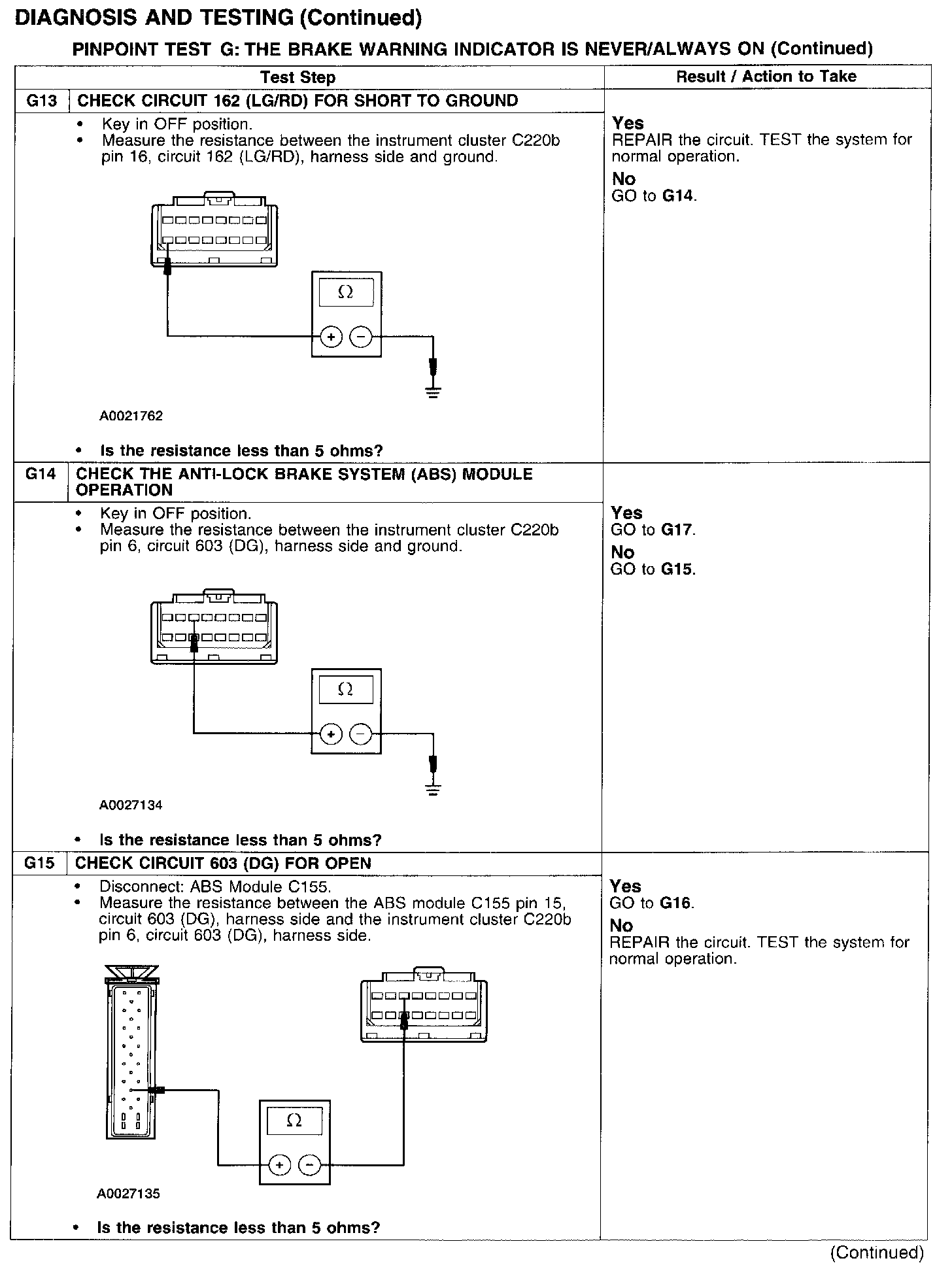

Test G13-G15:

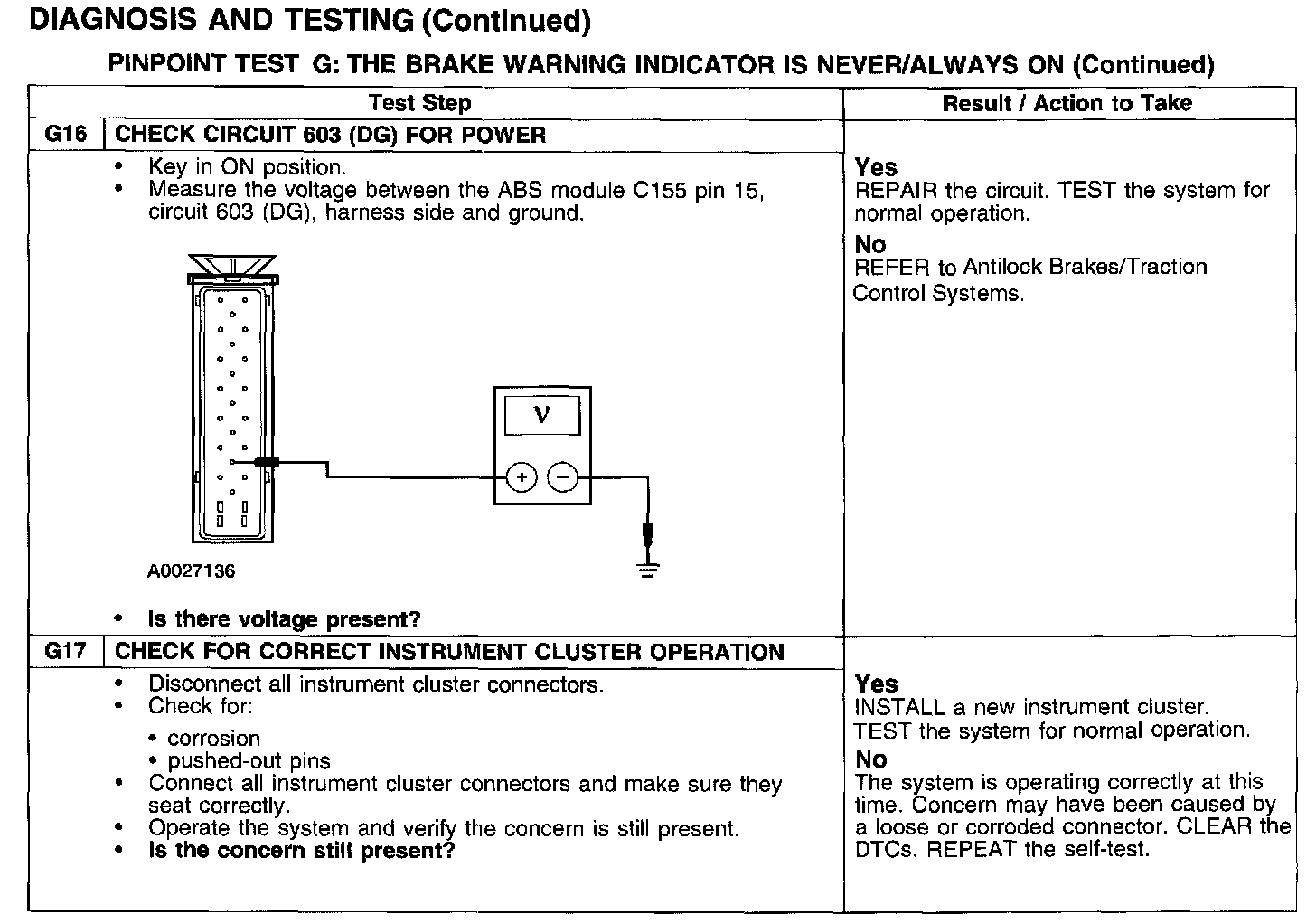

Test G16-G17:
