Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Trouble Code Diagnostic Charts - Instrument Cluster >> Instrument Cluster Diagnostic Trouble Code (DTC) Index

Instrument Cluster Diagnostic Trouble Code (DTC) Index

DTC Index B1202 - B2143:

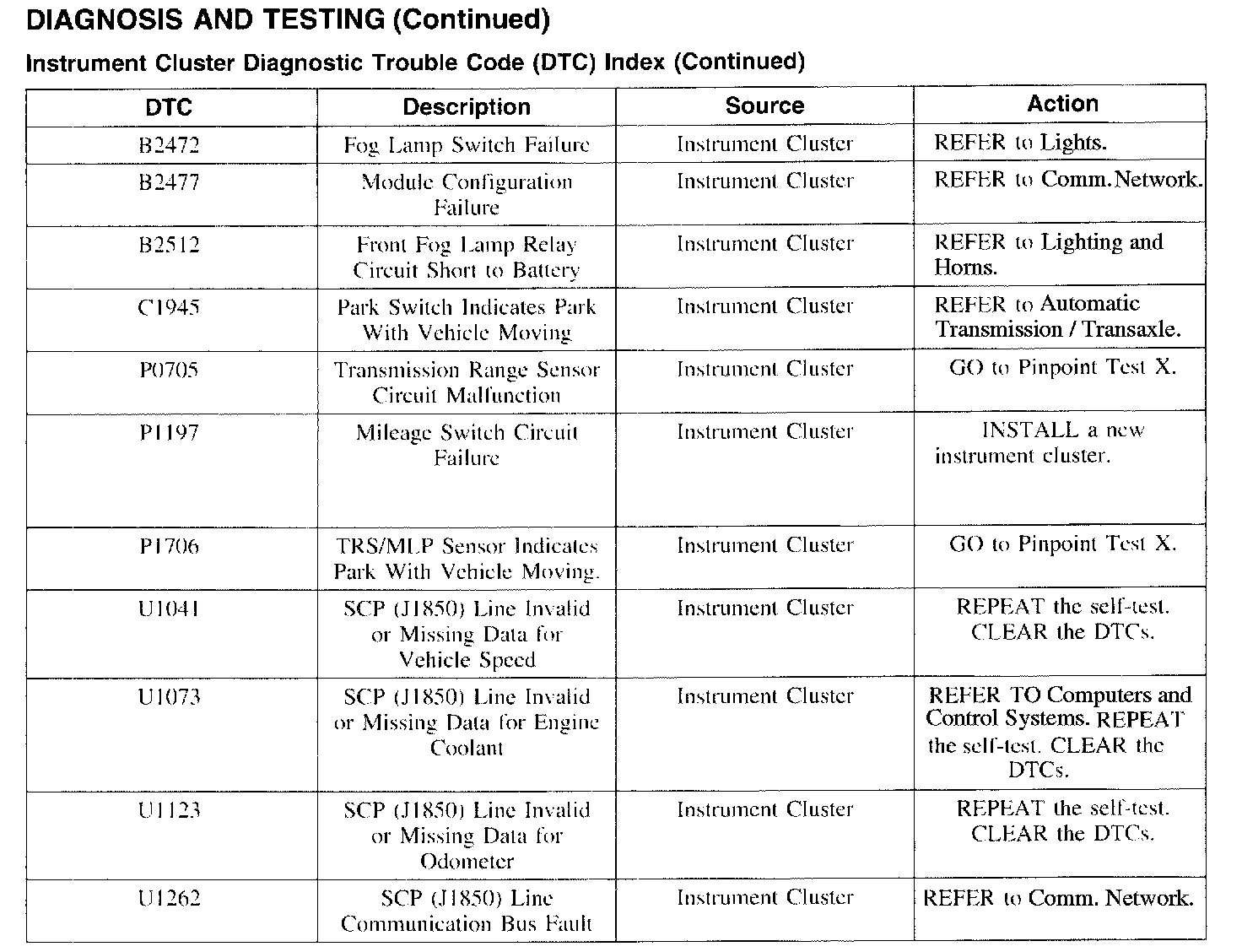

DTC Index B2472 - U1262:
