Instrument Cluster

INSTRUMENT CLUSTER LENS

REMOVAL
1. Remove the instrument cluster.

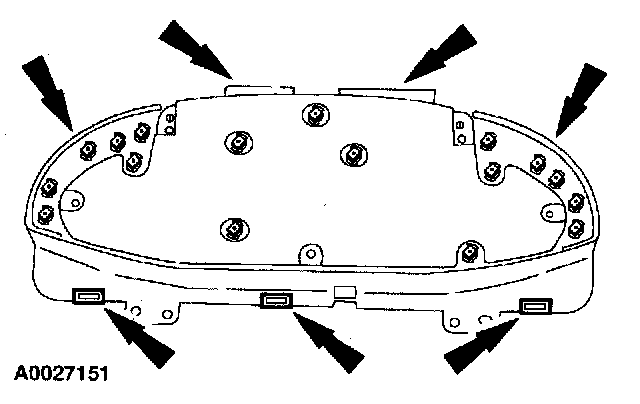

2. Release the cluster lens retaining tabs and remove the cluster lens.

INSTALLATION
1. To install, reverse the removal procedure.
