FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test J: No Operation In Lower Speeds
Test J: No Operation In Lower Speeds
PINPOINT TEST J: NO OPERATION IN LOWER SPEEDS
Test J1-J3:

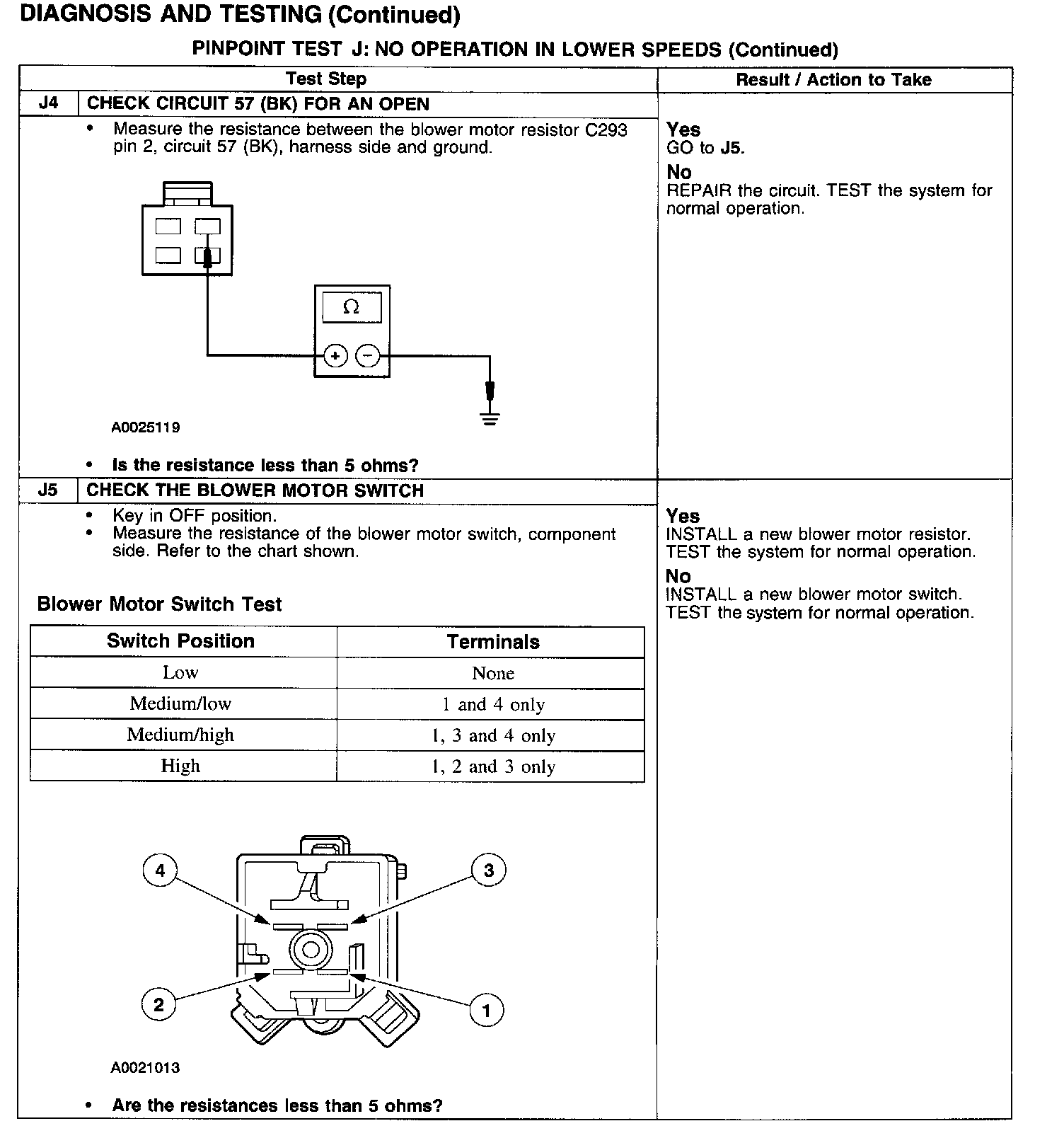

Test J4-J5:
