Test G: Blower Motor Does Not Operate
Test G: Blower Motor Does Not Operate
PINPOINT TEST G: THE
BLOWER MOTOR
DOES NOT OPERATE

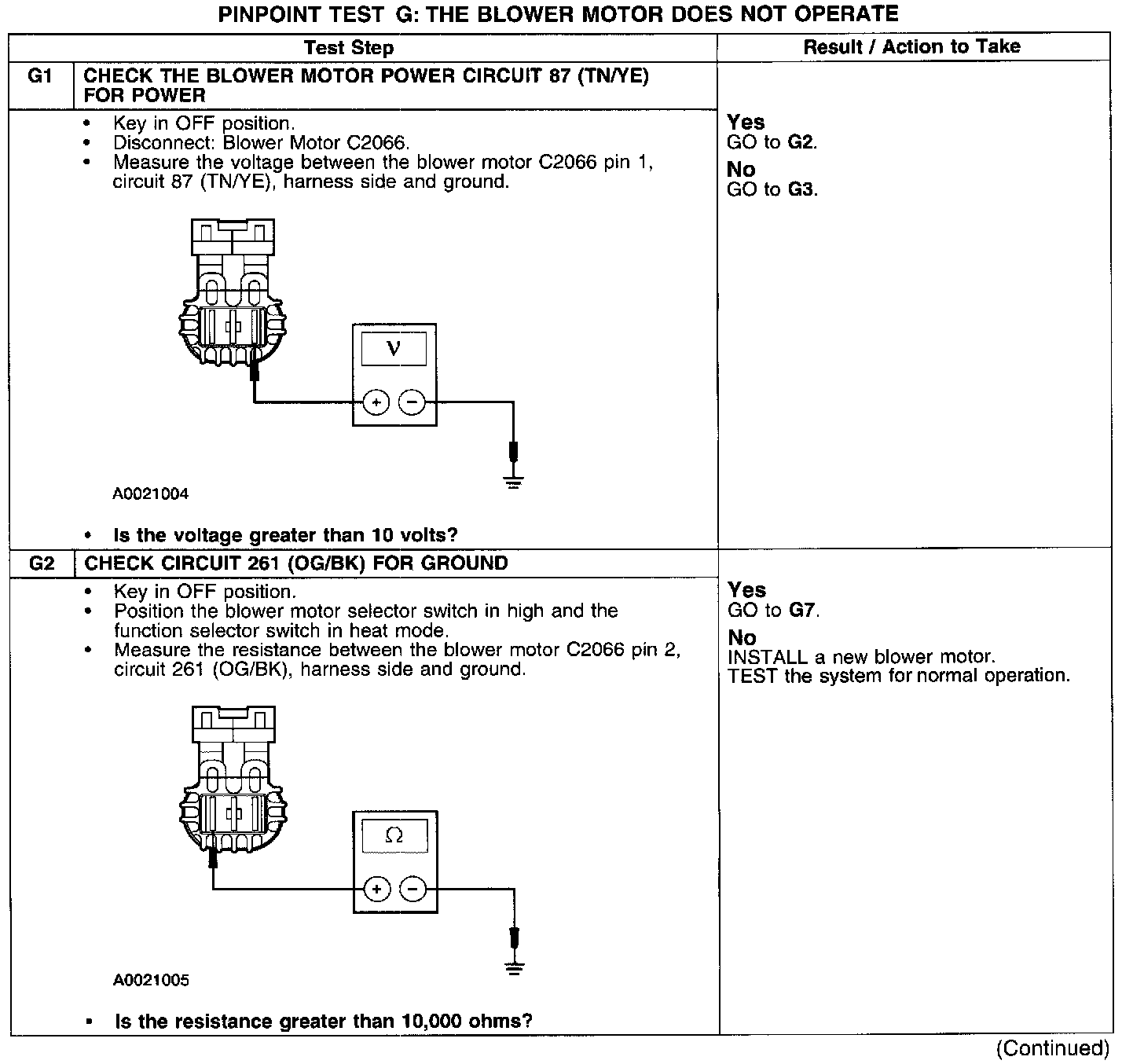

Test G1-G2:
Test G3-G4:

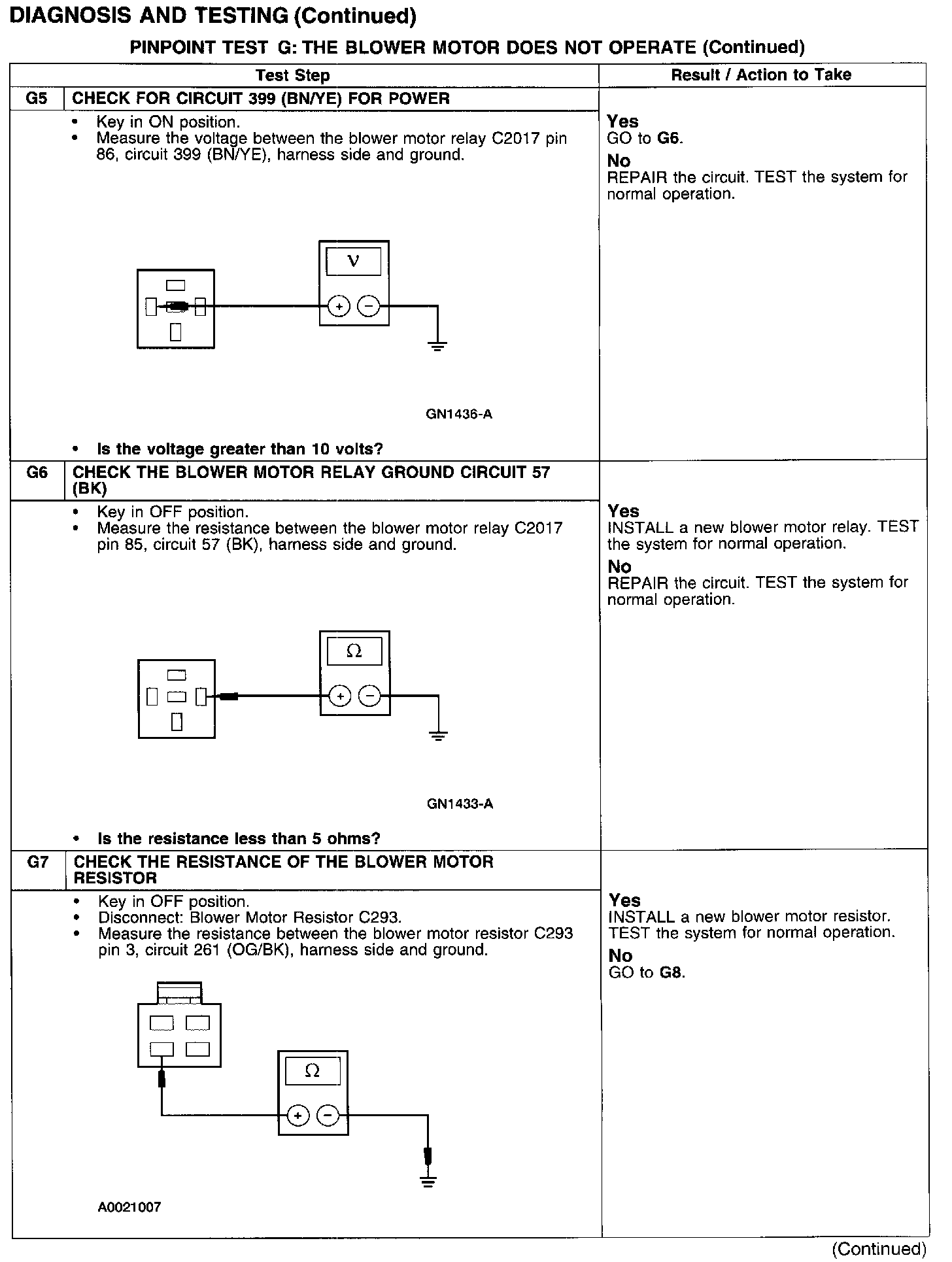

Test G5-G7:

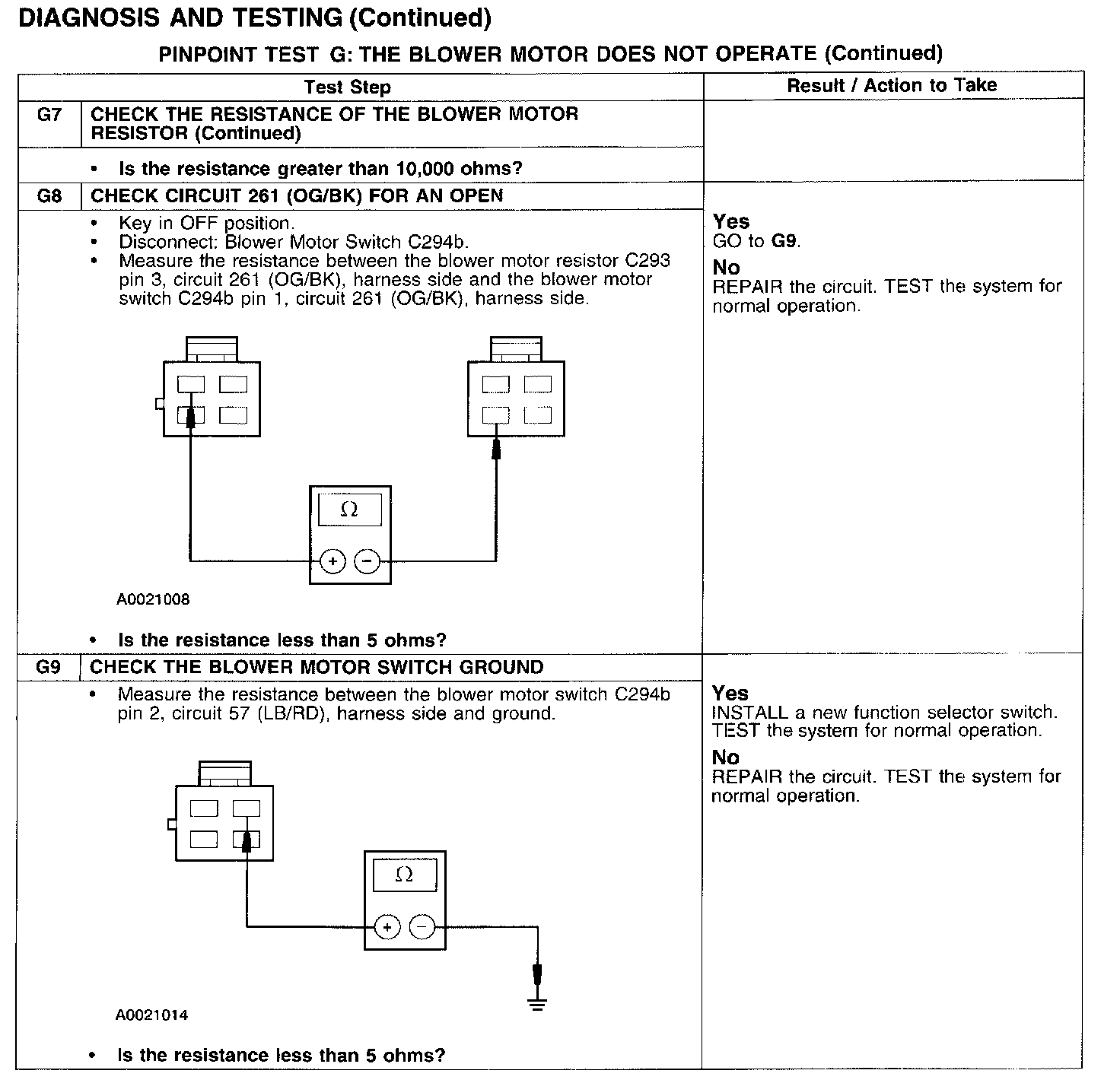

Test G7-G9:
