Test F: No Operation In All The Temperature Settings

PINPOINT TEST F: NO OPERATION IN ALL THE TEMPERATURE SETTINGS

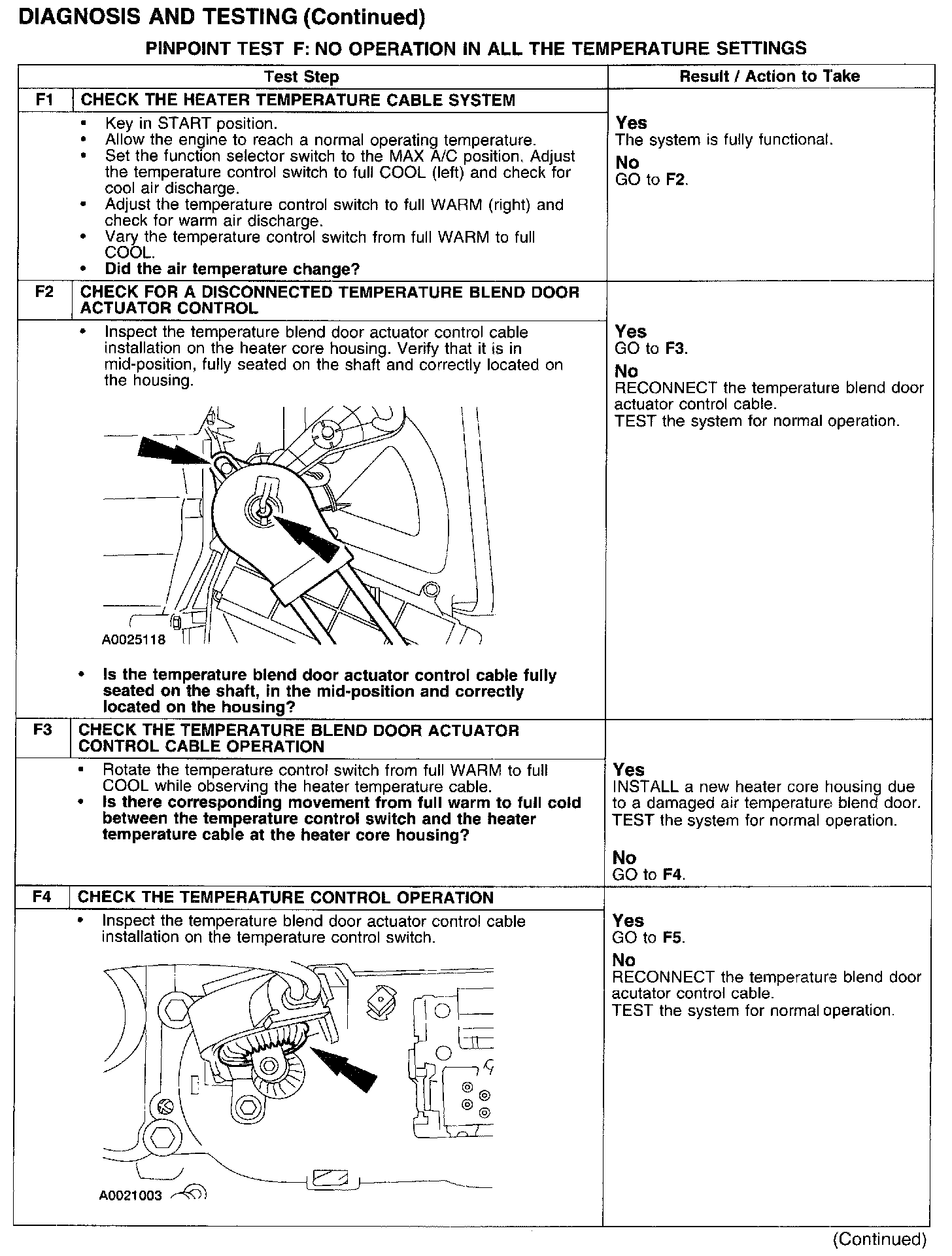

Test F1-F4:






Test F4-F5:
