Test E: Insufficient Air Conditioning (A/C) Cooling
Test E: Insufficient Air Conditioning (A/C) Cooling
PINPOINT TEST E: INSUFFICIENT AIR CONDITIONING (A/C) COOLING

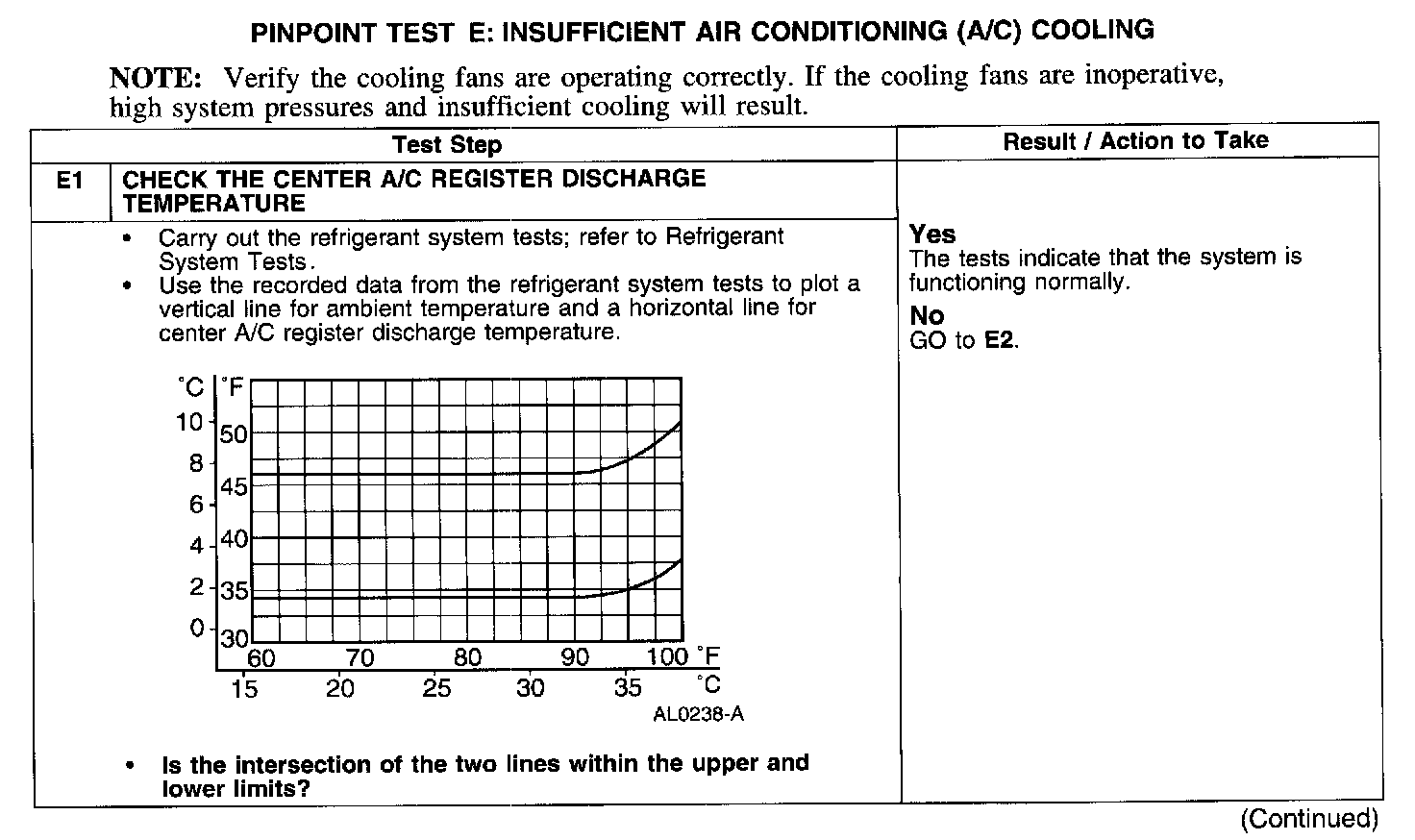

Test E1:

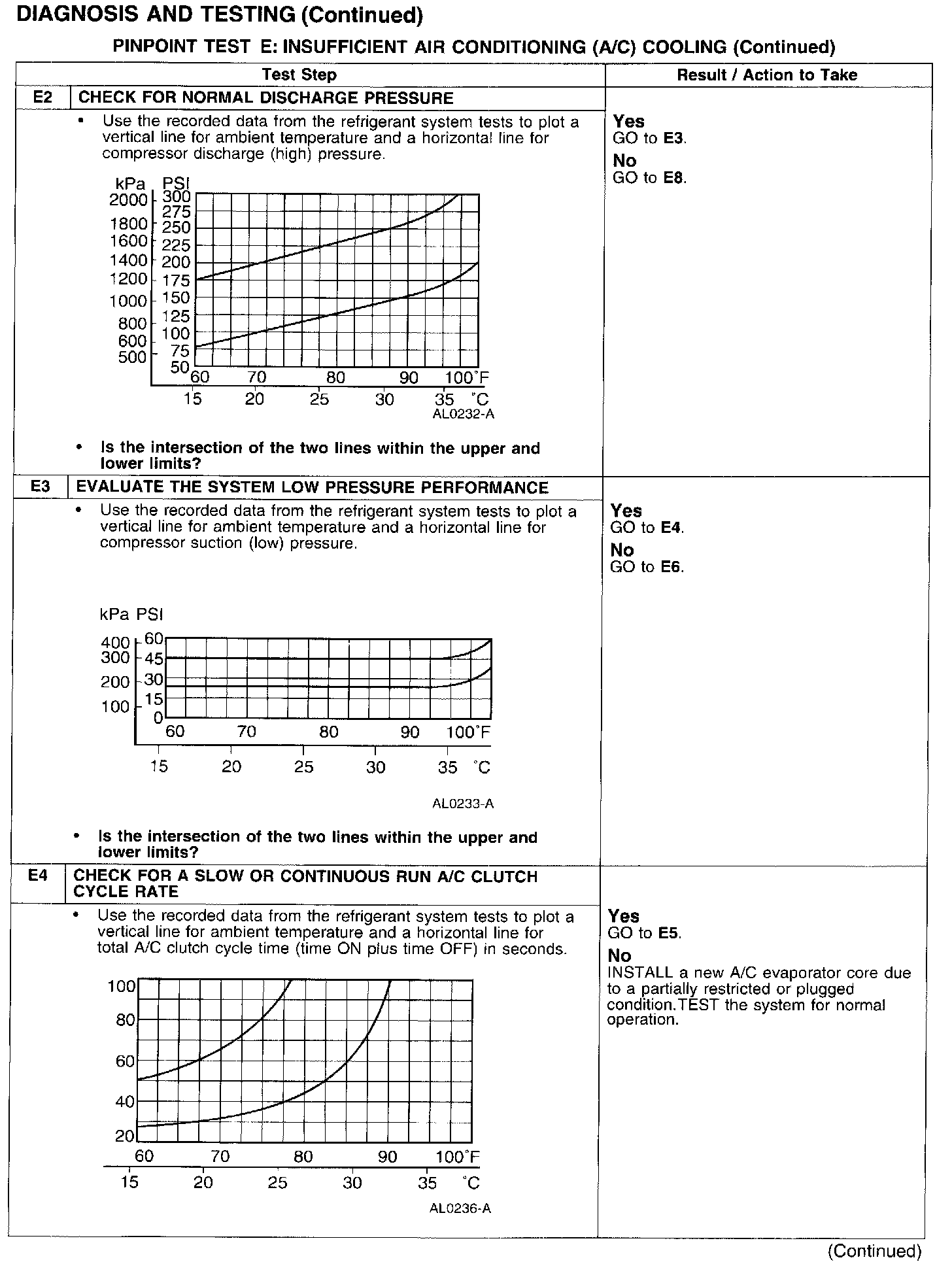

Test E2-E4:

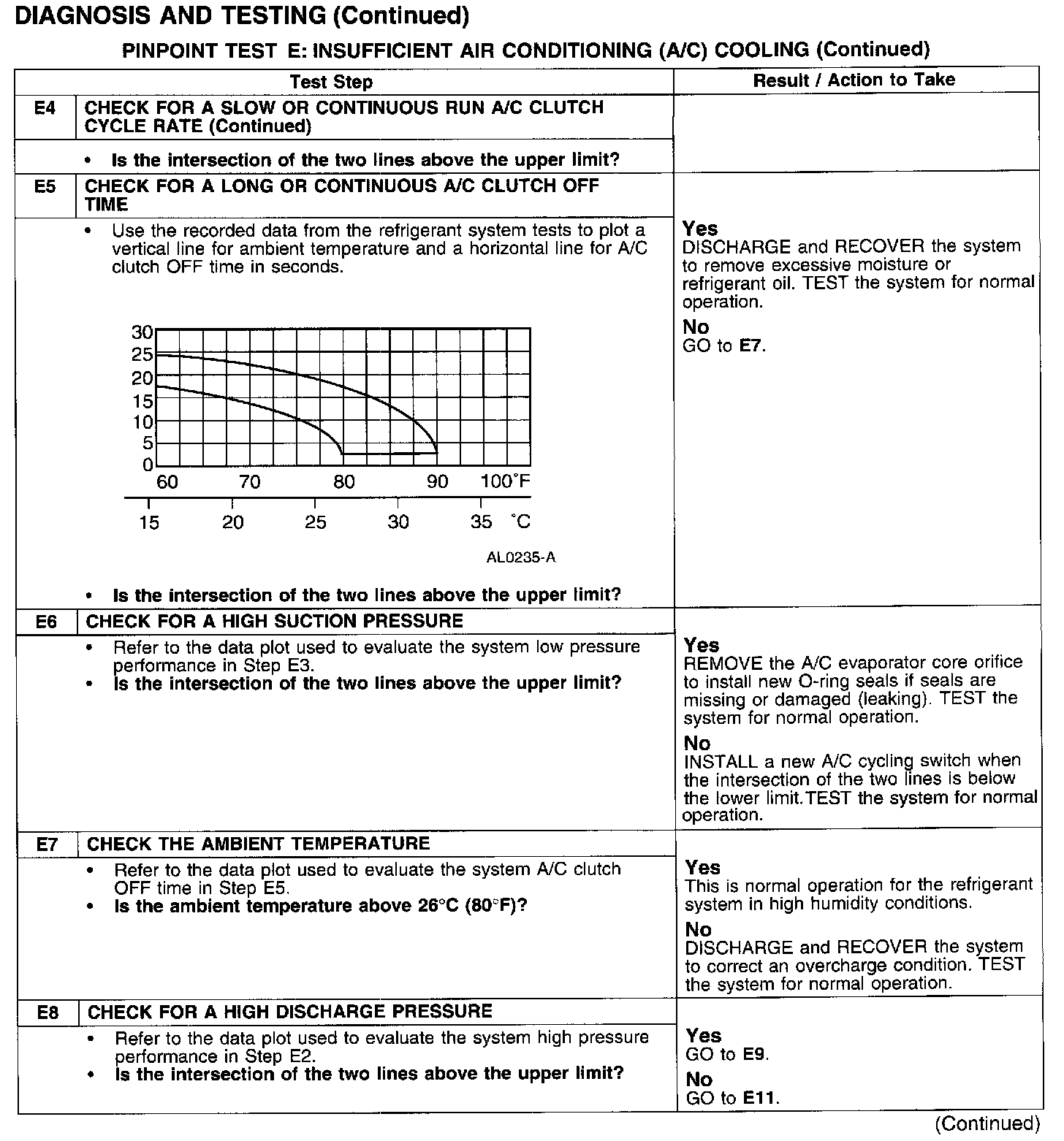

Test E4-E8:

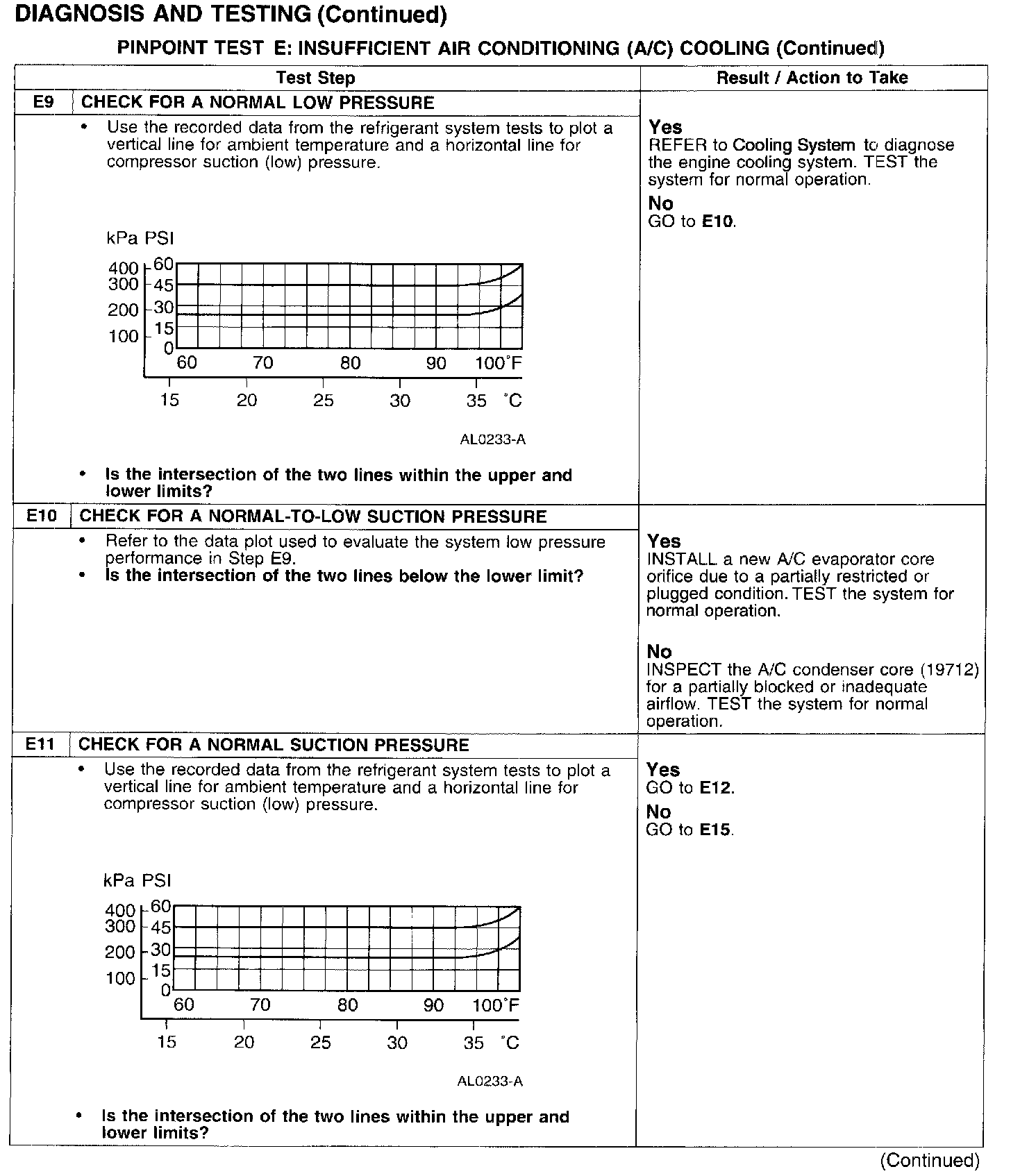

Test E9-E11:

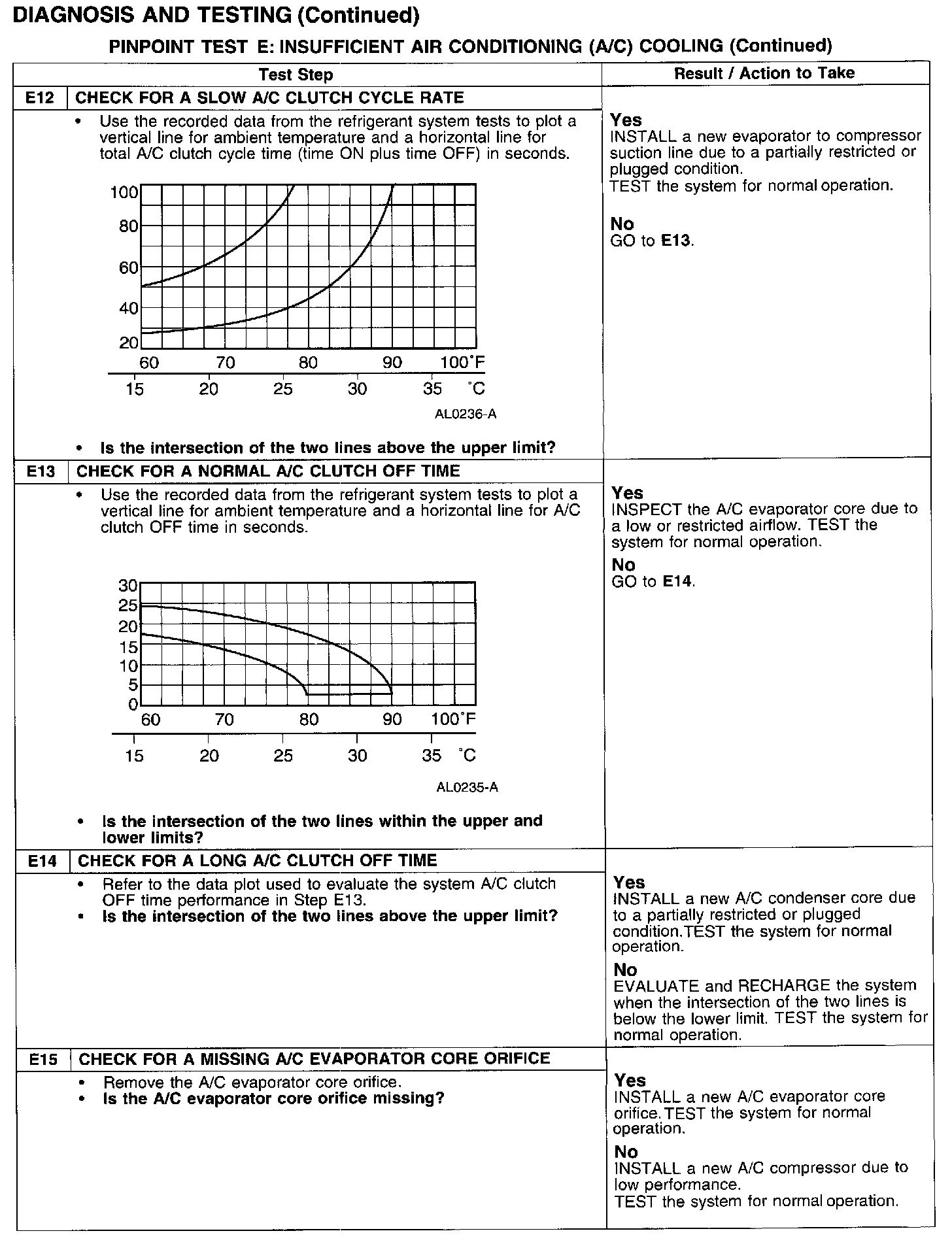

Test E12-E15:
