Test D: Air Conditioning (A/C) Is Always On

PINPOINT TEST D: THE AIR CONDITIONING (A/C) IS ALWAYS ON

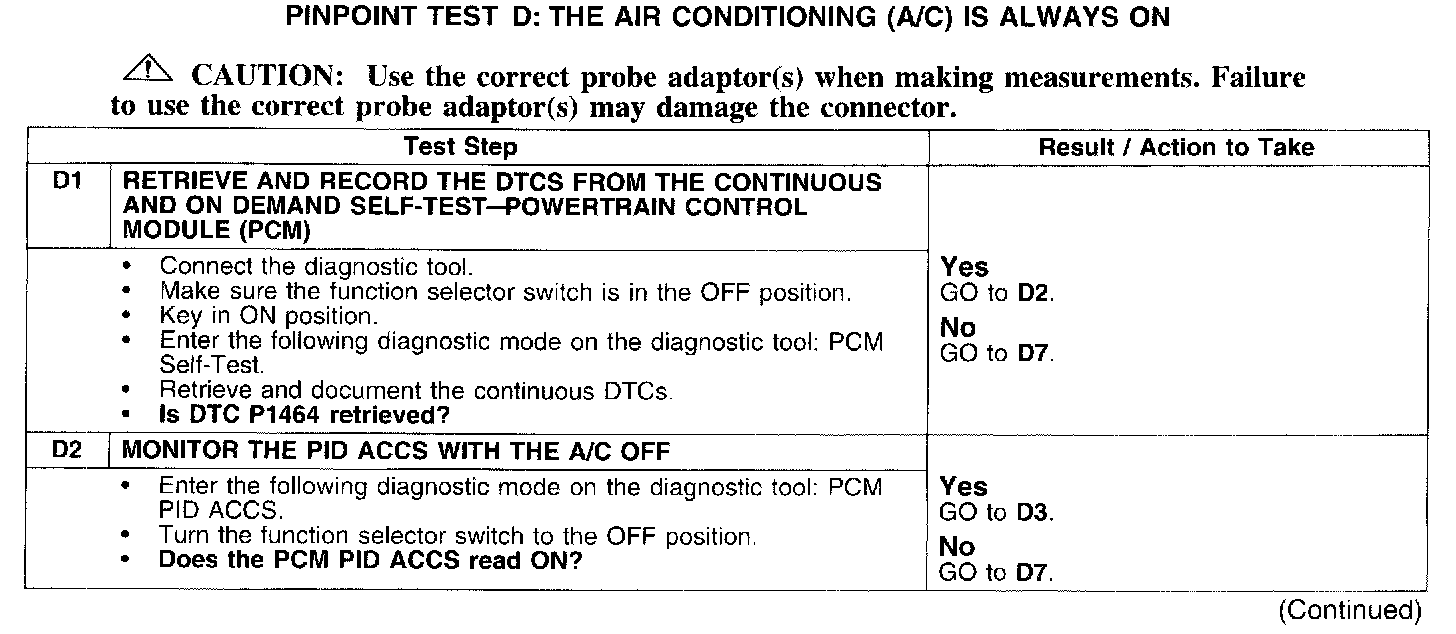

Test D1-D2:

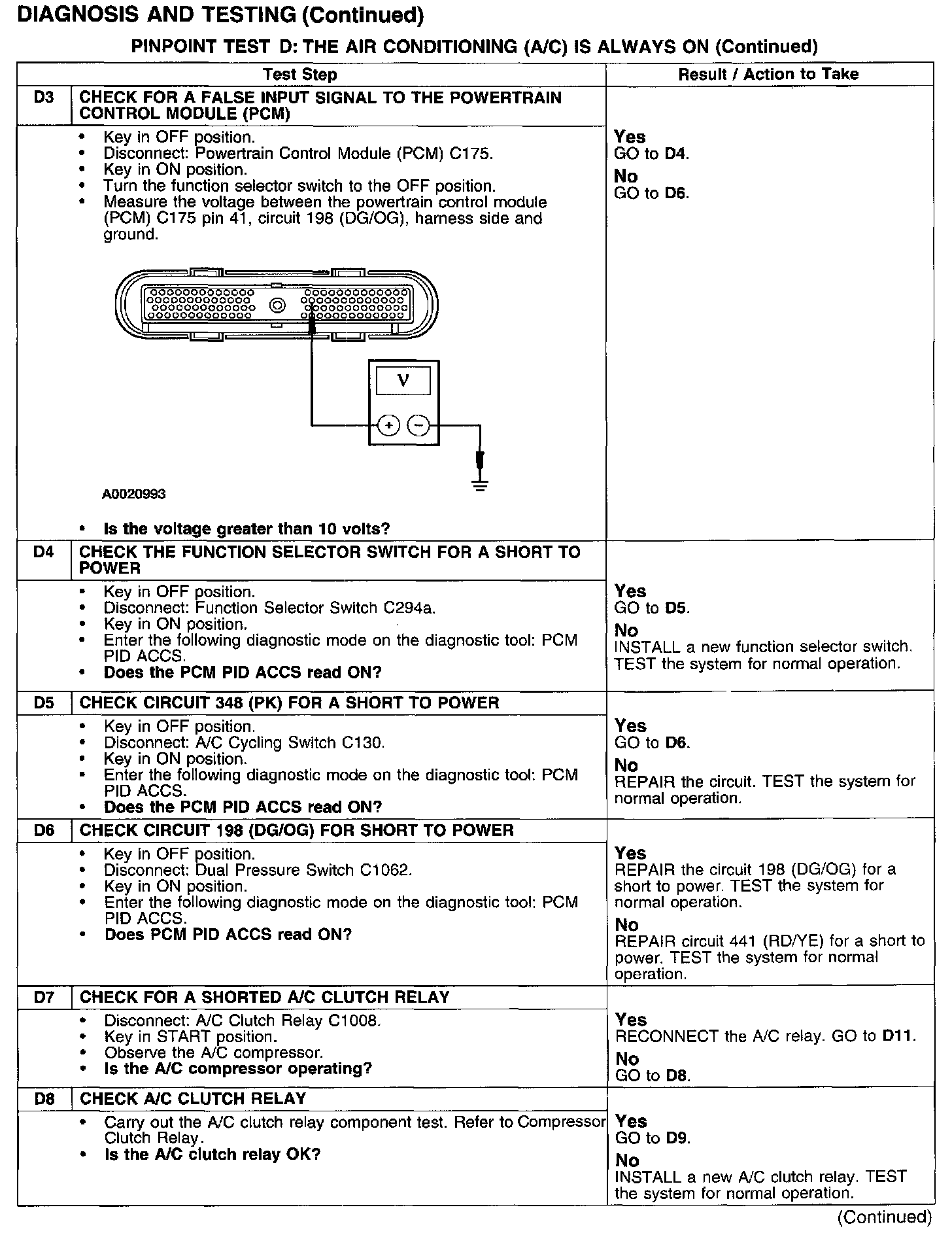

Test D3-D8:

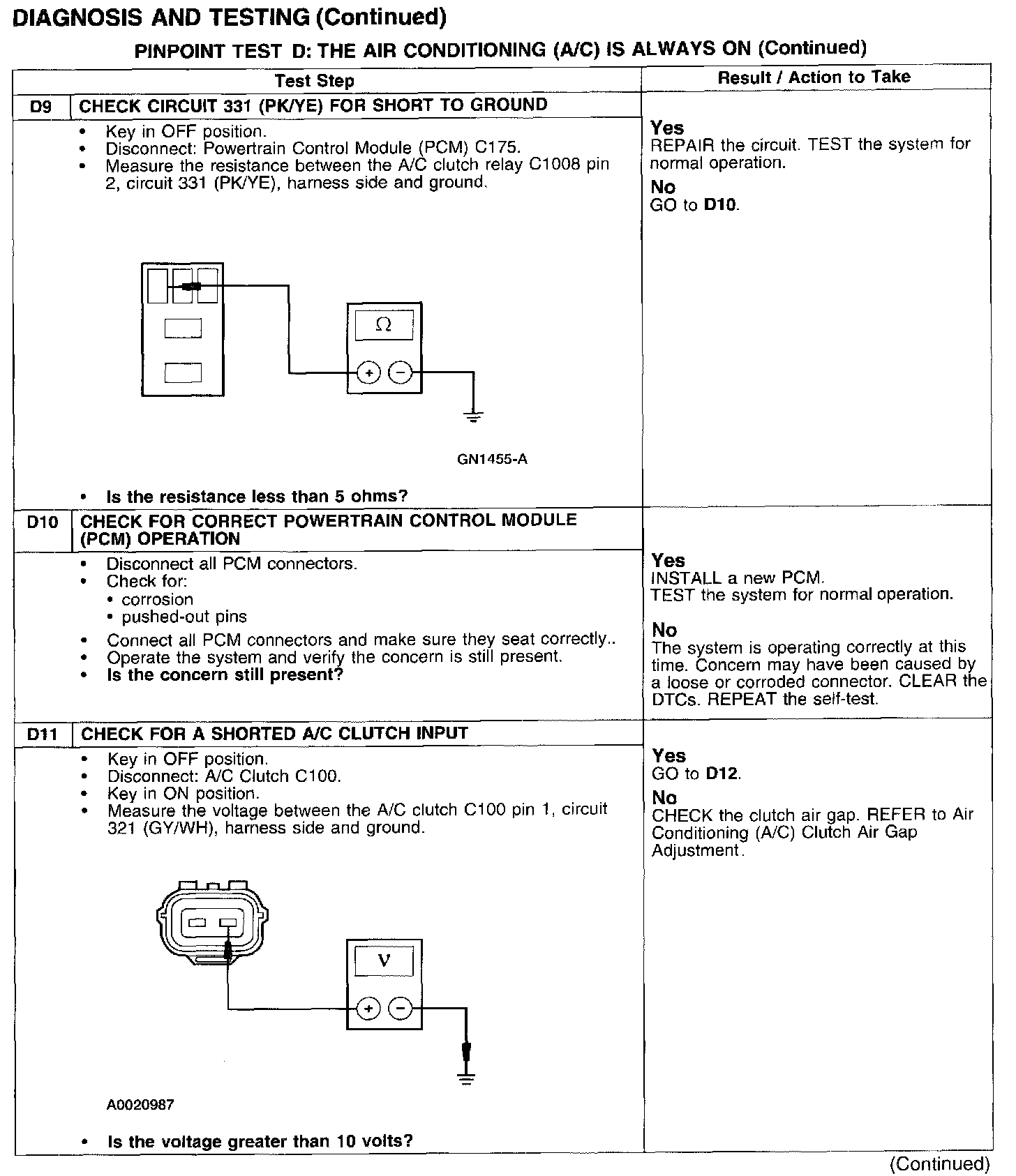

Test D9-D11:

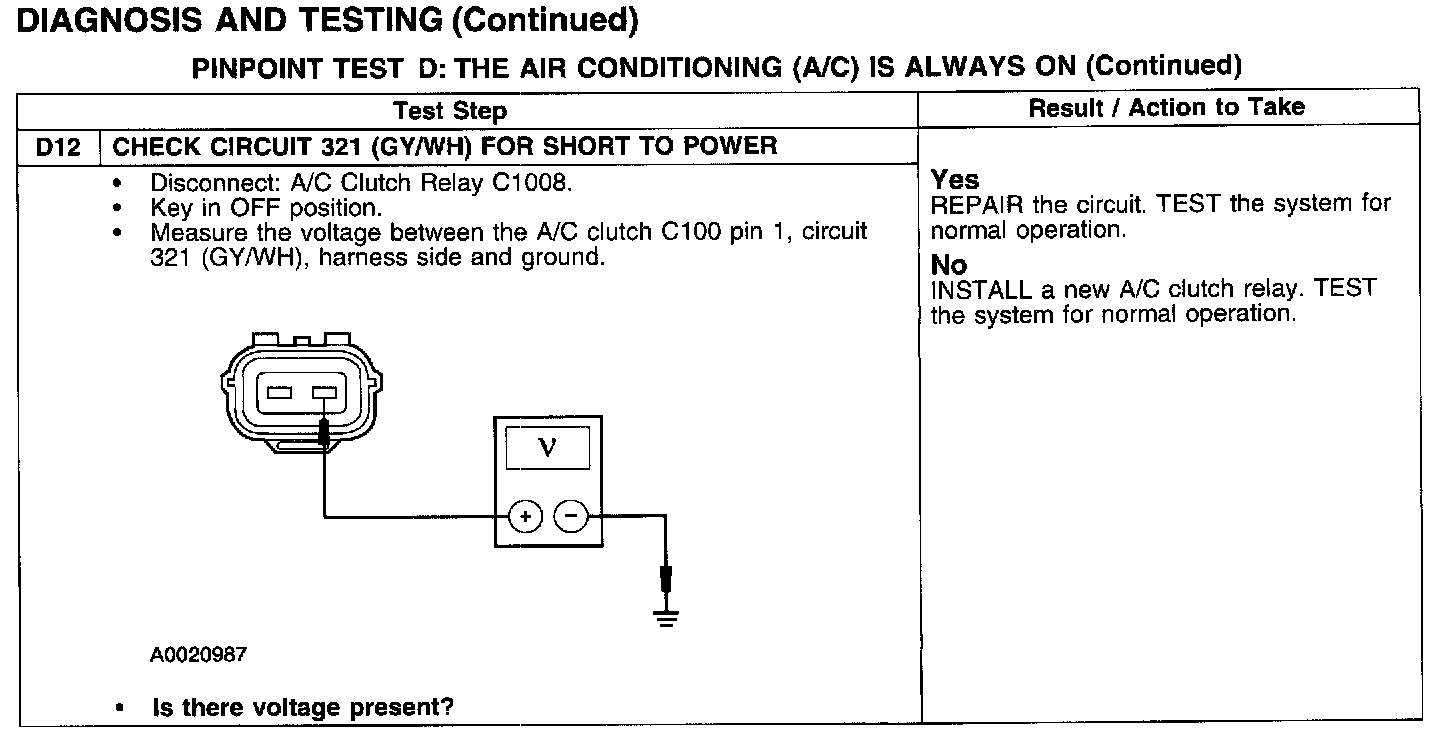

Test D12:
