Test B: Insufficient, Erratic, Or No Heat
PINPOINT TEST B: INSUFFICIENT, ERRATIC, OR NO HEAT

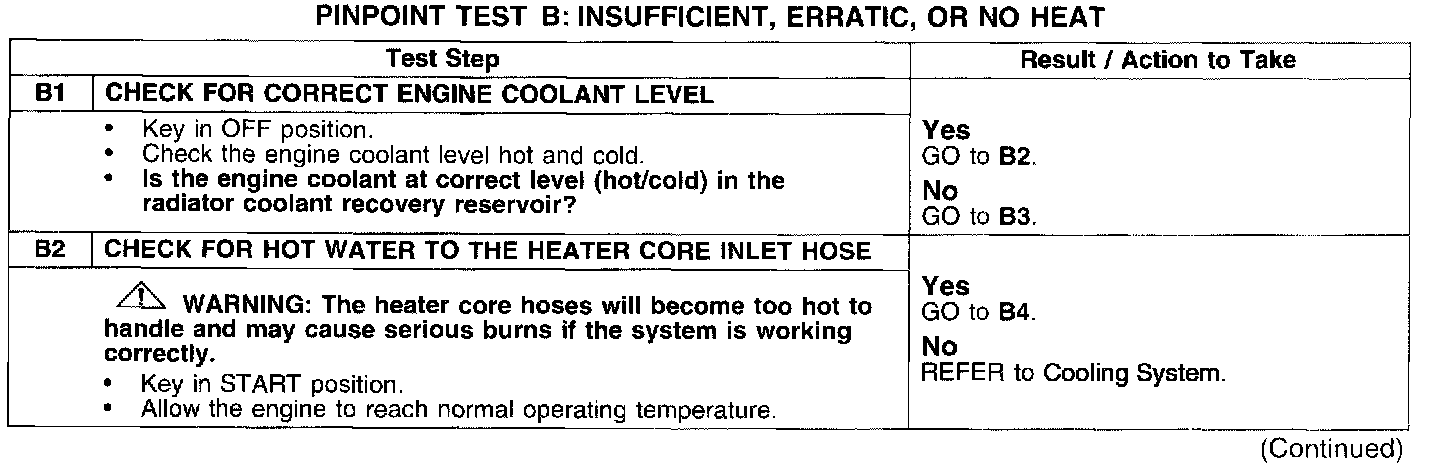

Test B1-B2:

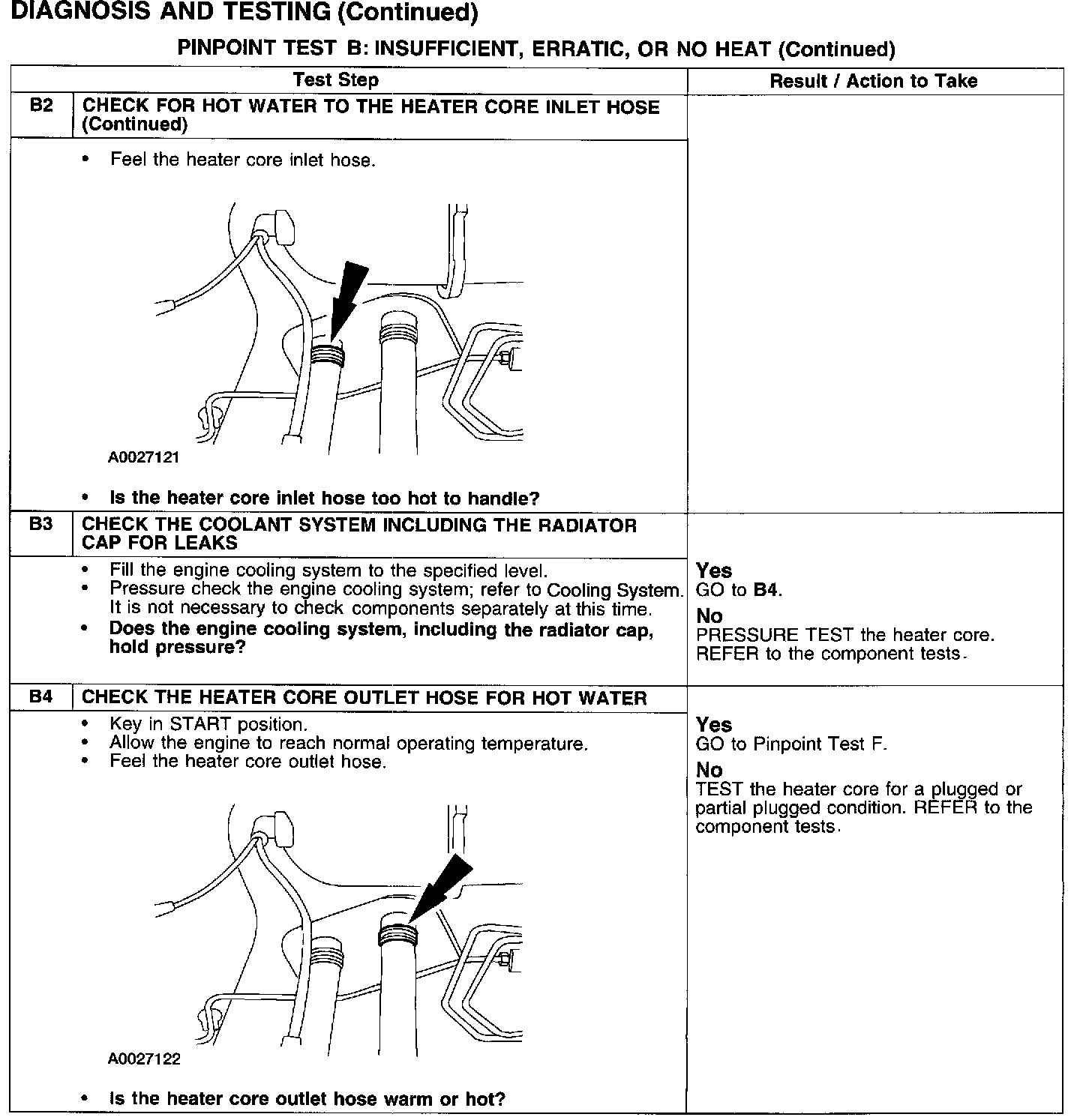

Test B2-B4:
