Test A: Incorrect/Erratic Direction Of Airflow From Outlet(s)

PINPOINT TEST A: INCORRECT/ERRATIC DIRECTION OF AIRFLOW FROM OUTLET(S)

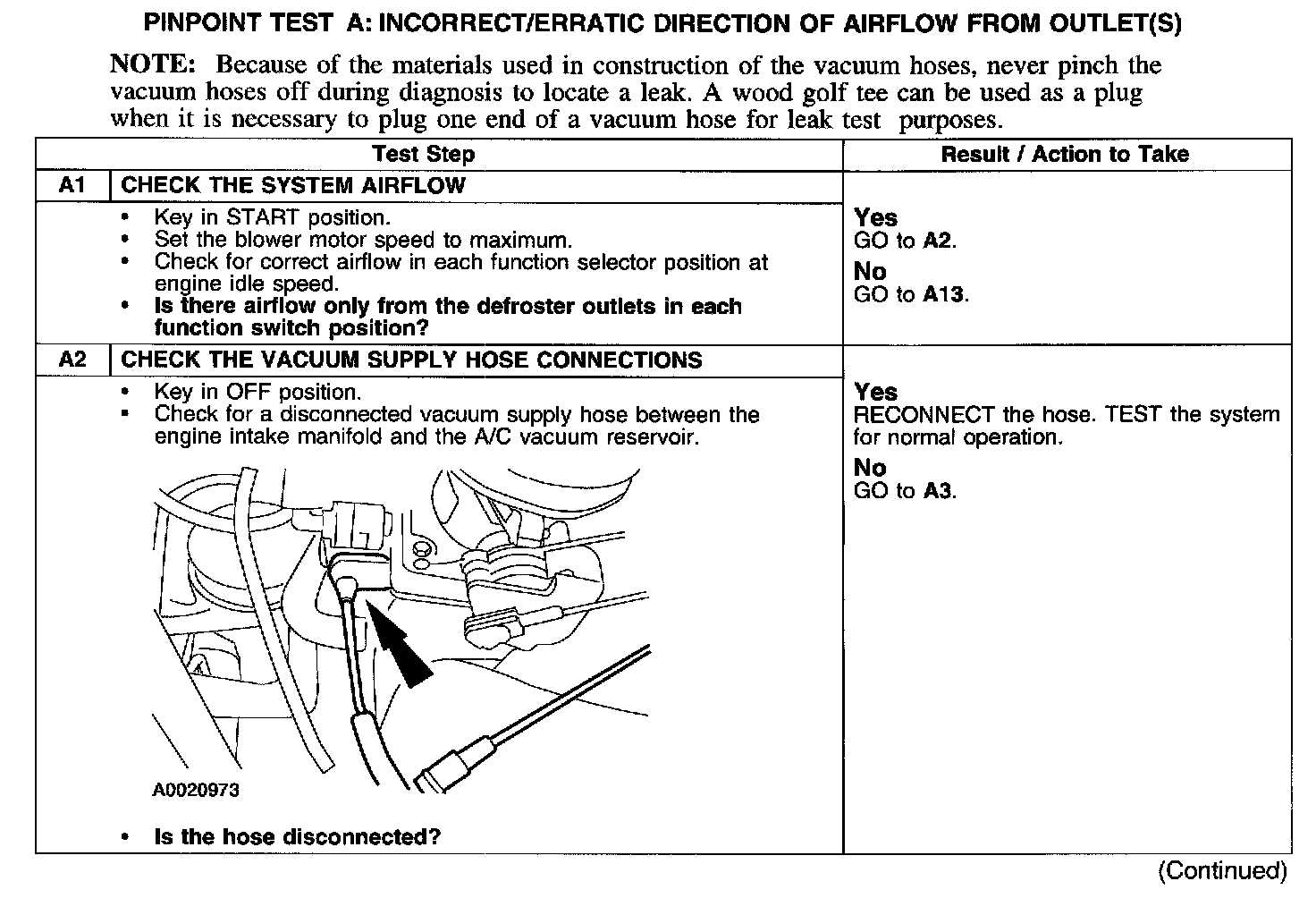

Test A1-A2:

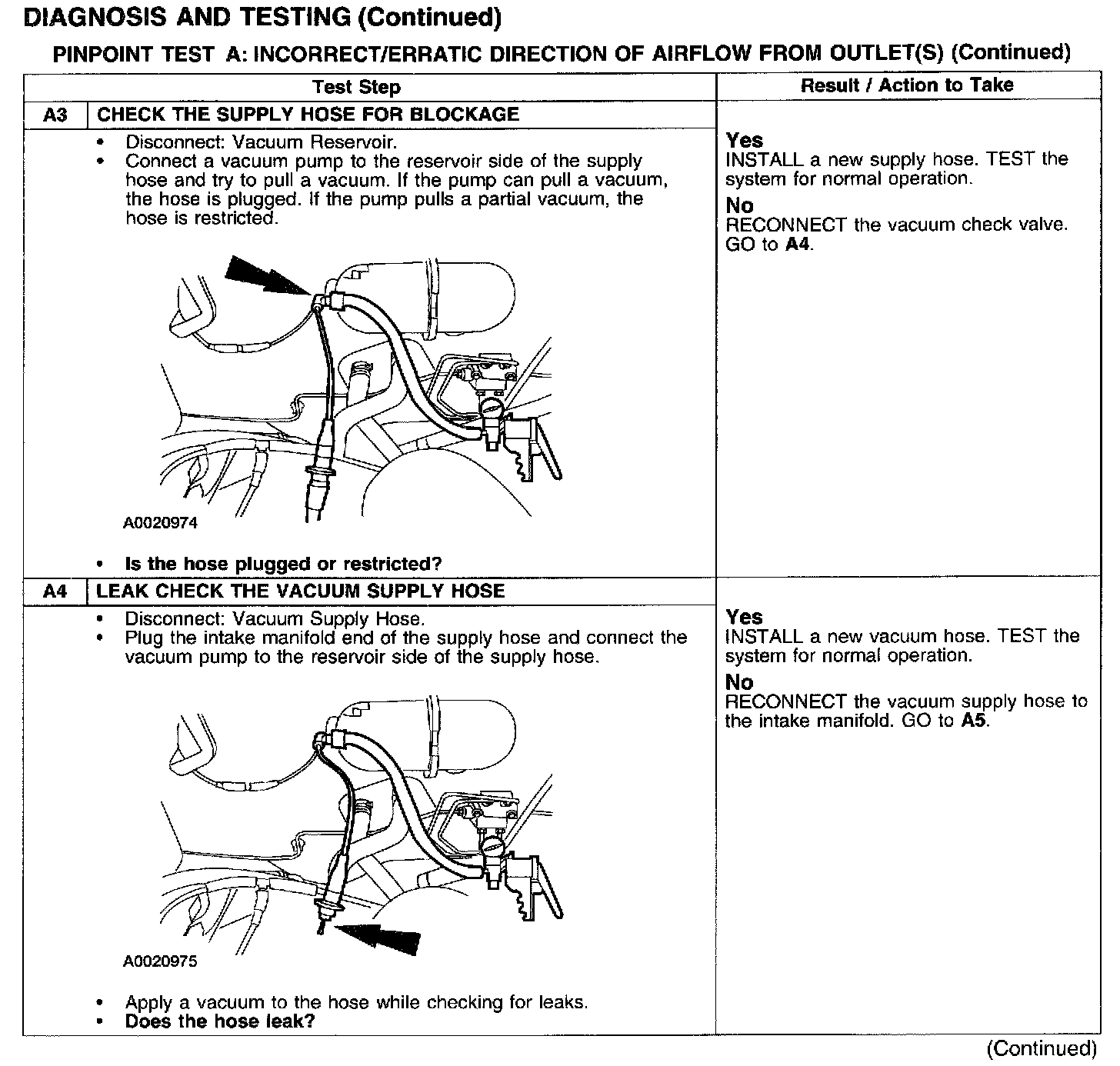

Test A3-A4:

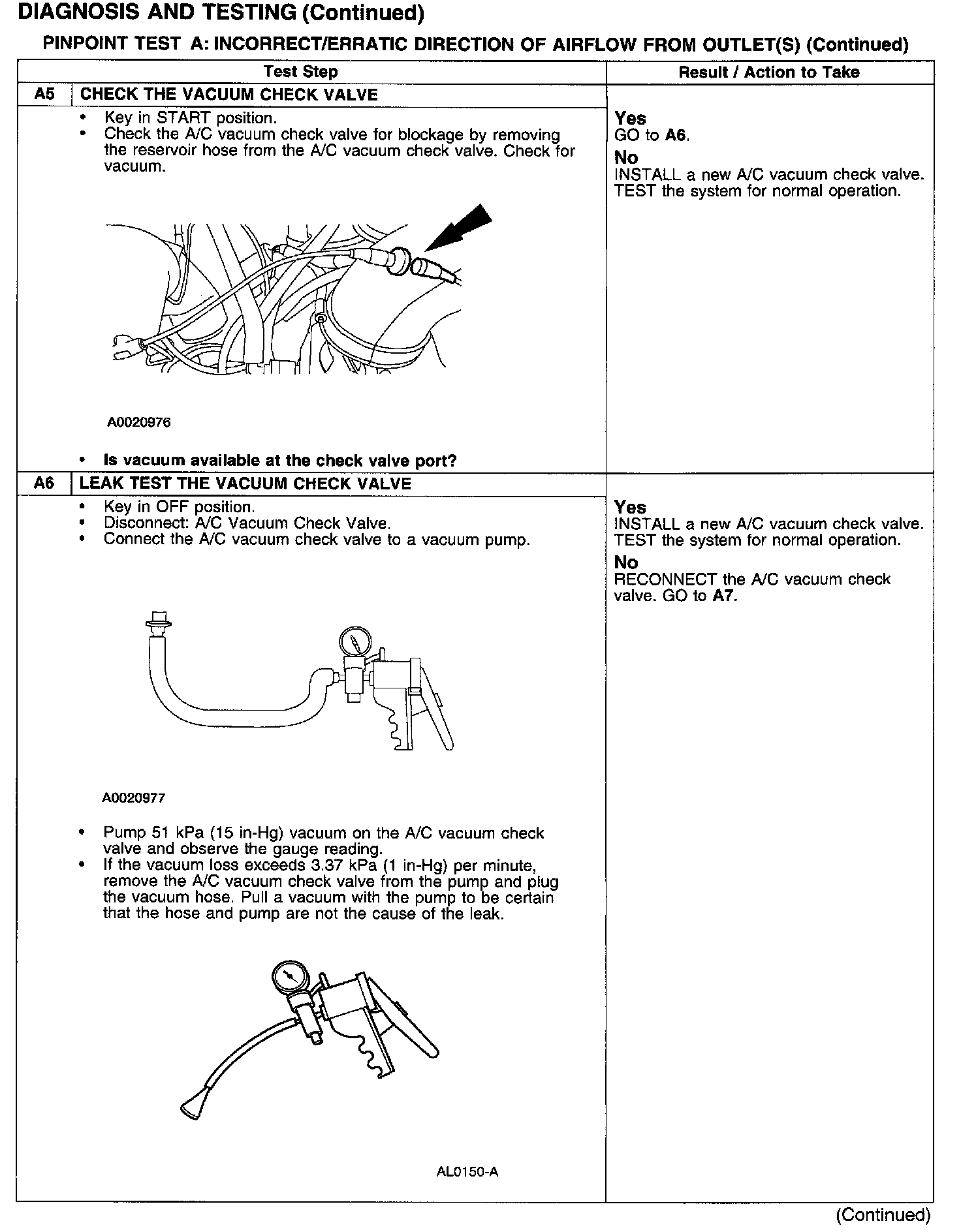

Test A5-A6:

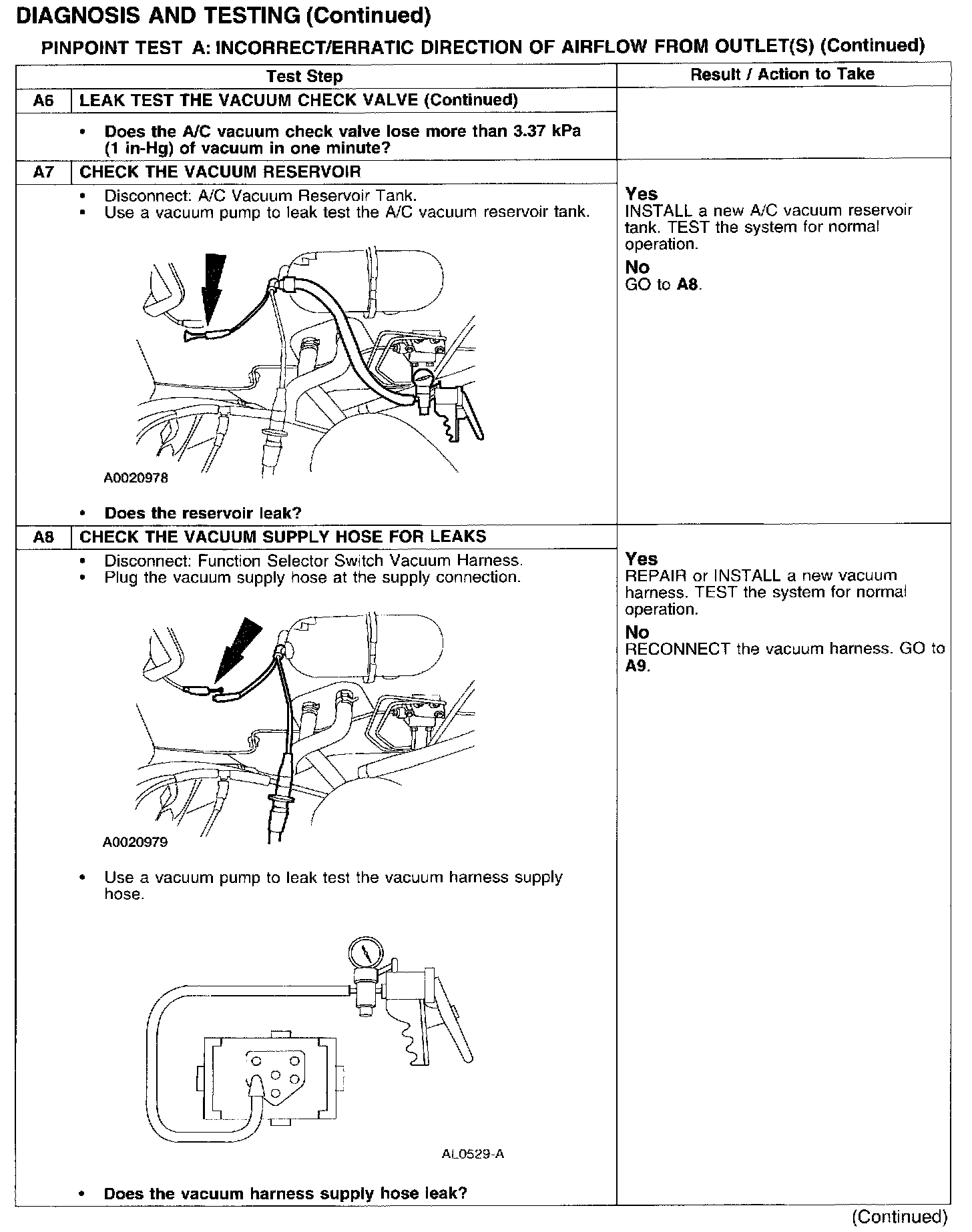

Test A6-A8:

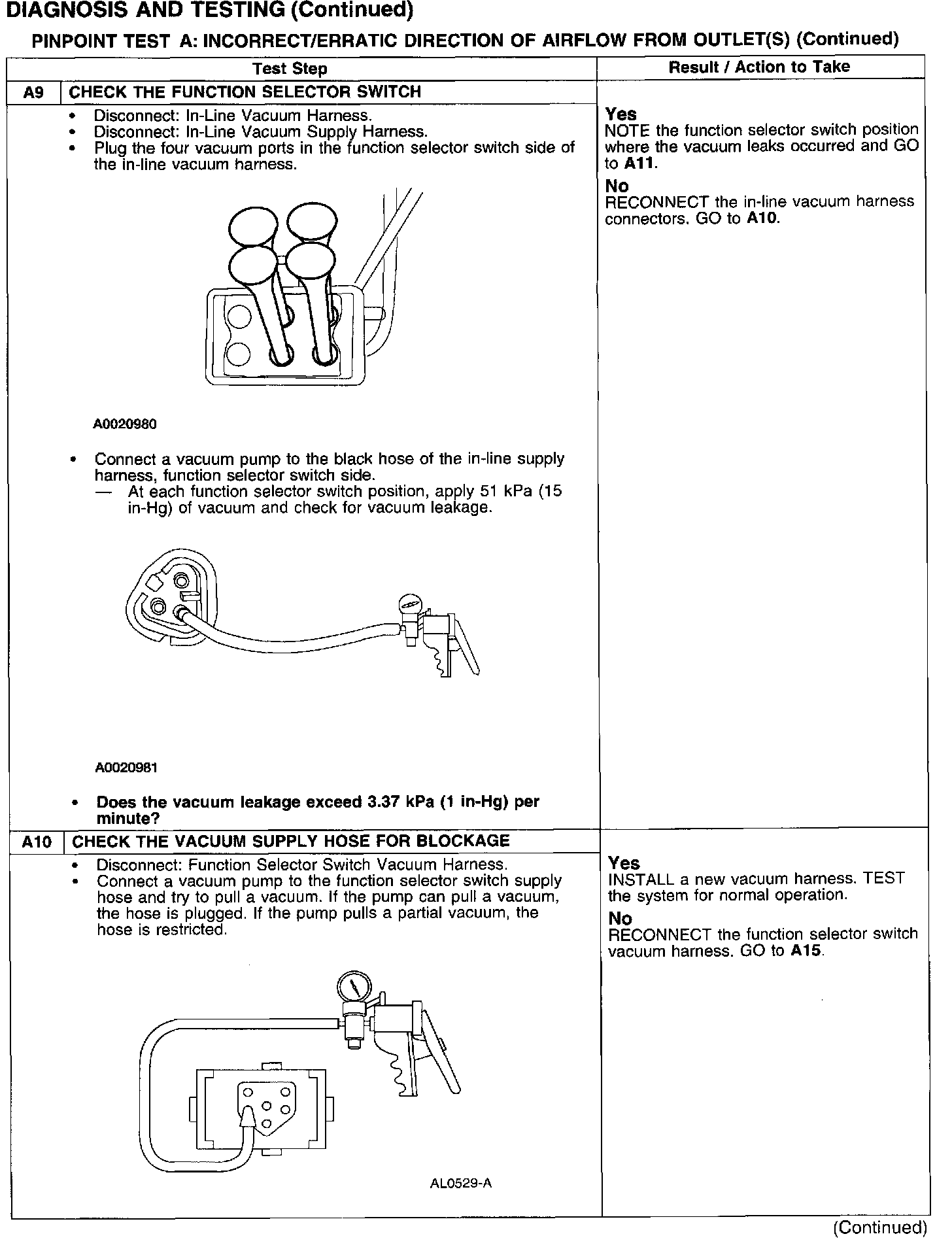

Test A9-A10:

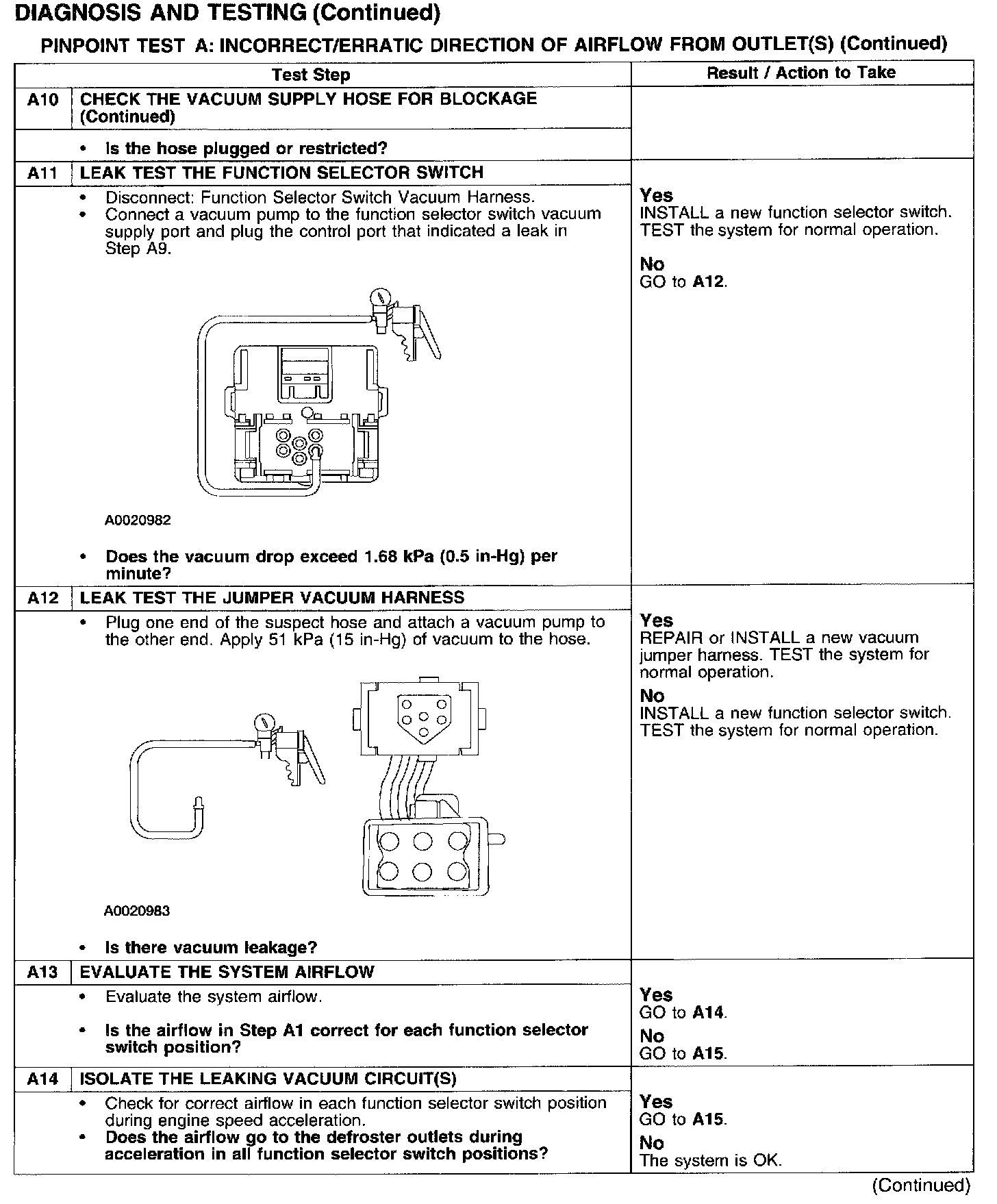

Test A10-A14:

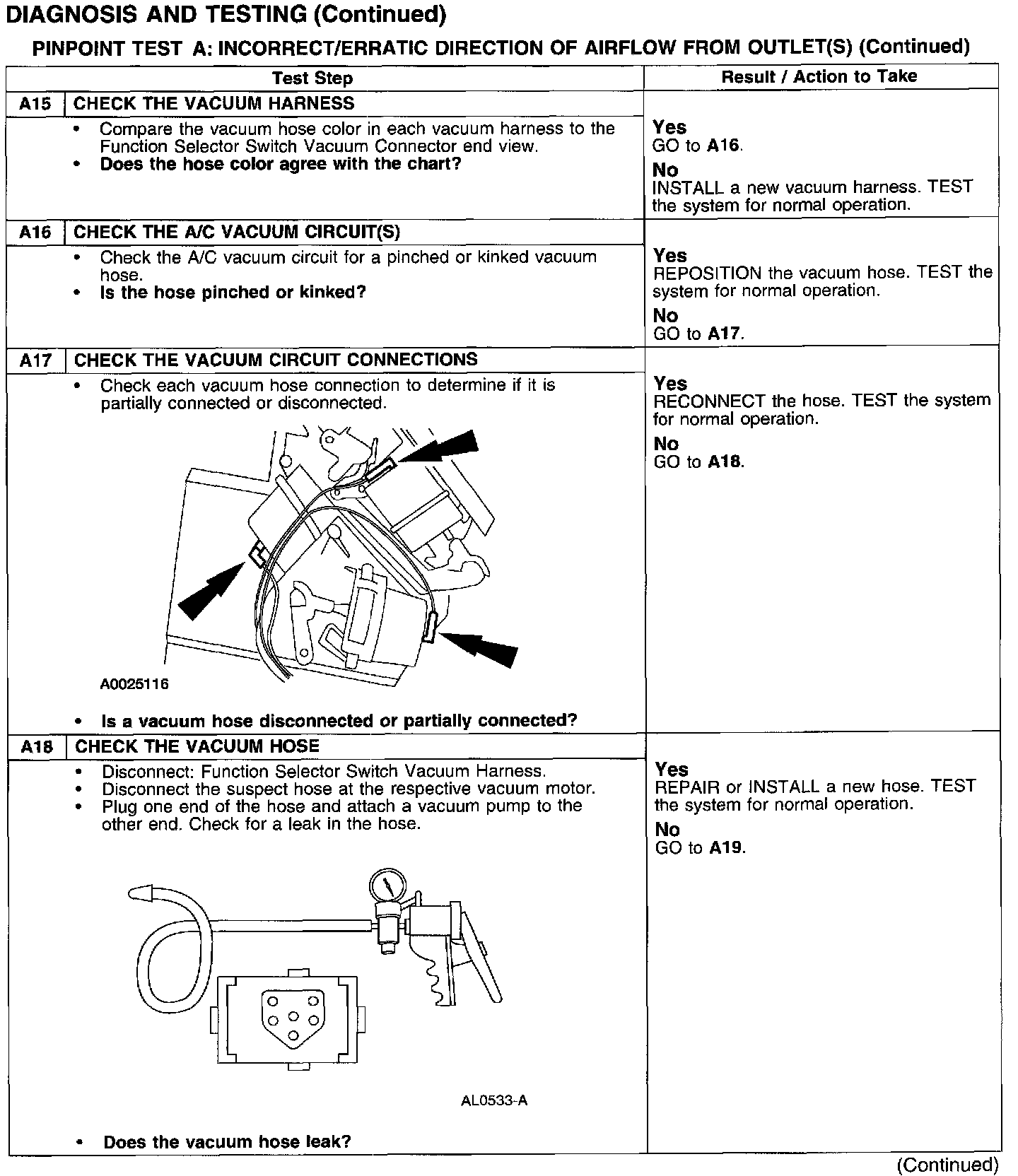

Test A15-A18:

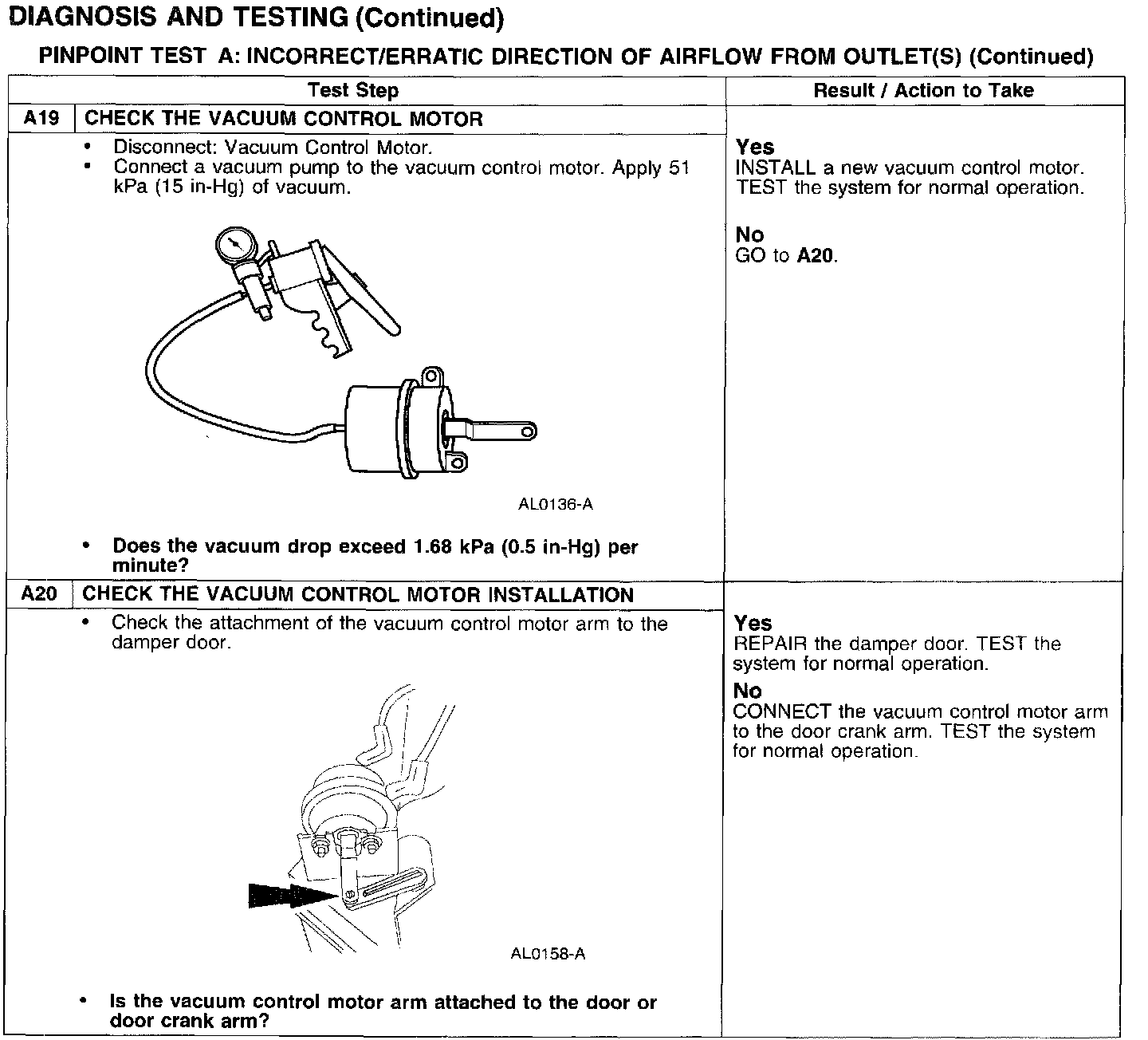

Test A19-A20:
