Diagnostic Vacuum Diagrams

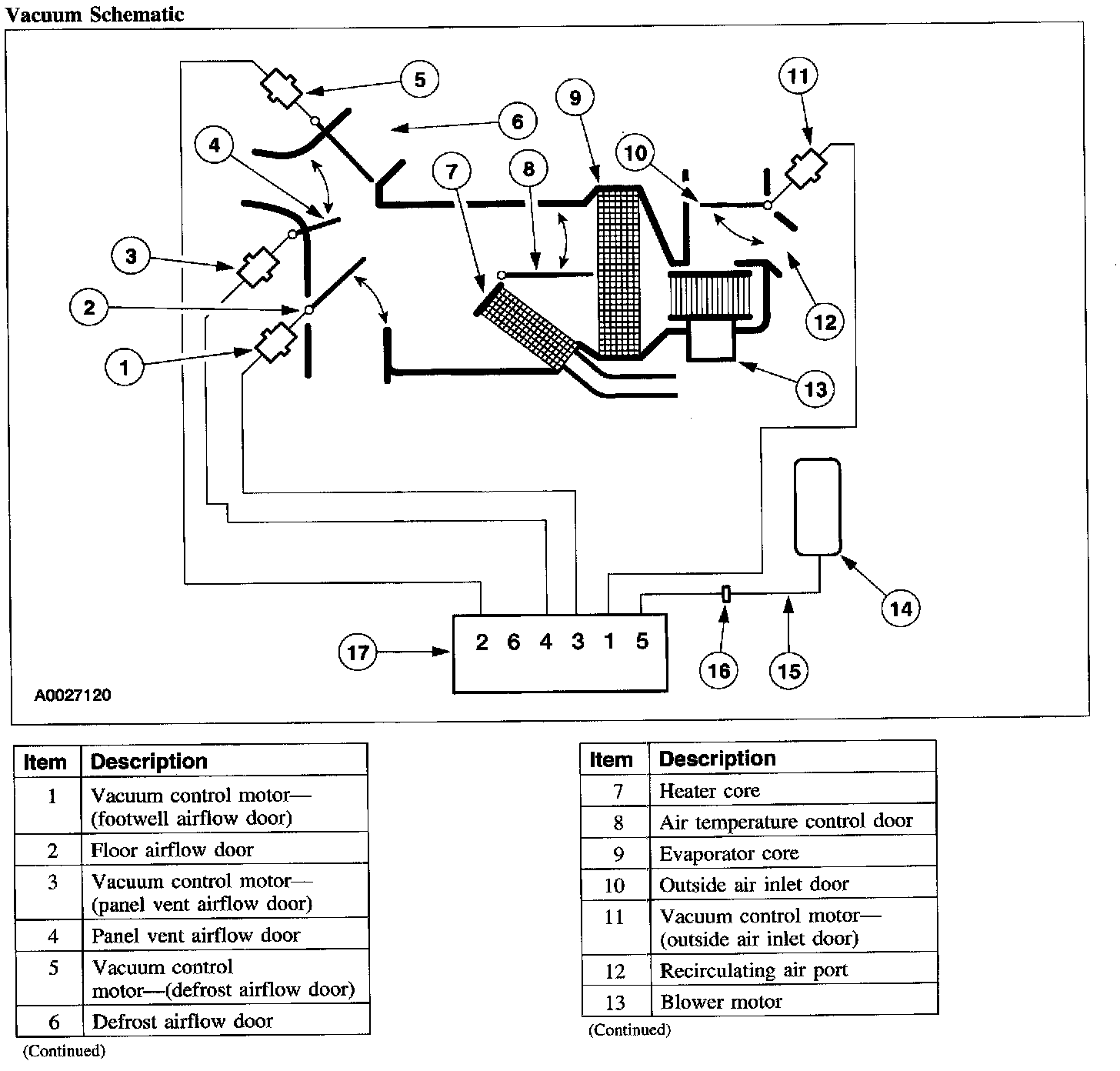

Vacuum Schematic, Part 1:

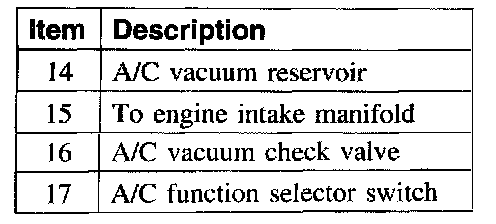

Vacuum Schematic, Part 2:

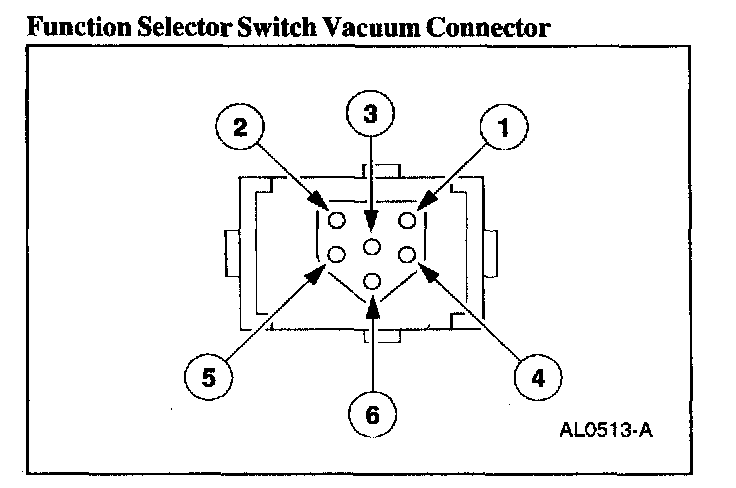

Function Selector Switch Vacuum Connector:

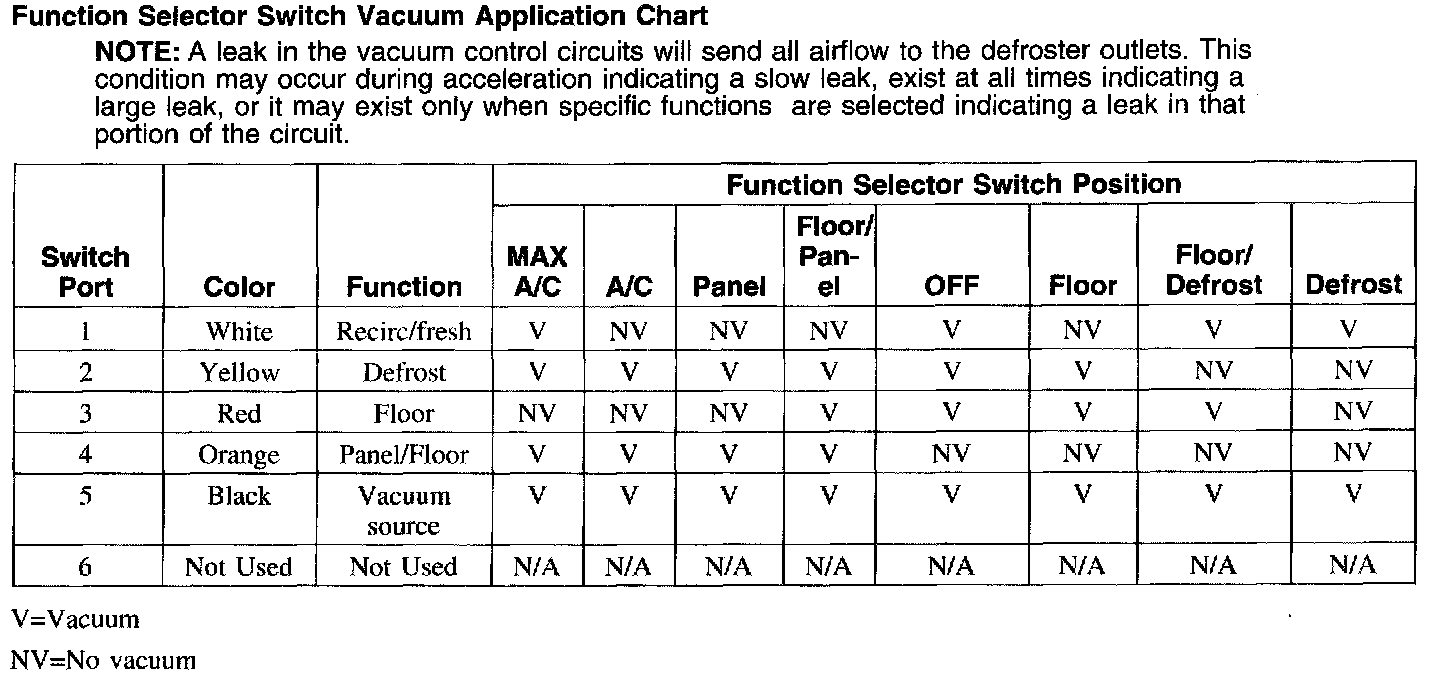

Function Selector Switch Vacuum Application Chart:
