Evaporator Case: Service and Repair

REMOVAL
1. Discharge and recover the refrigerant.
2. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

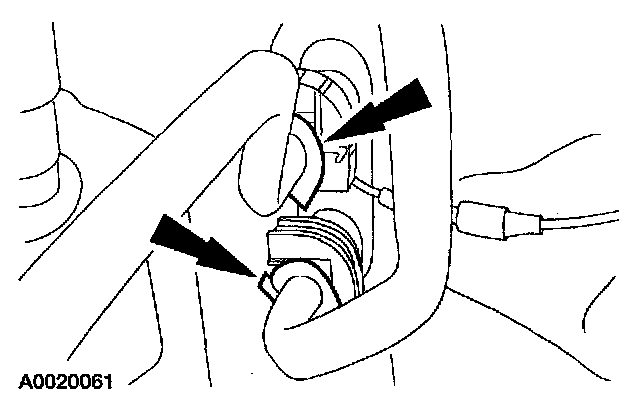

3. Disconnect the refrigerant line spring lock couplings from the A/C evaporator core.

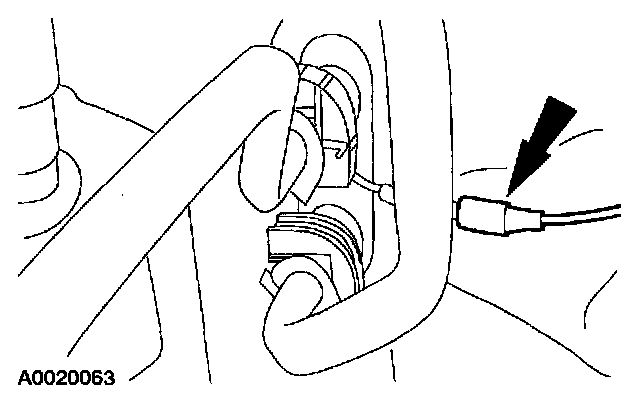

4. Disconnect the vacuum hose.

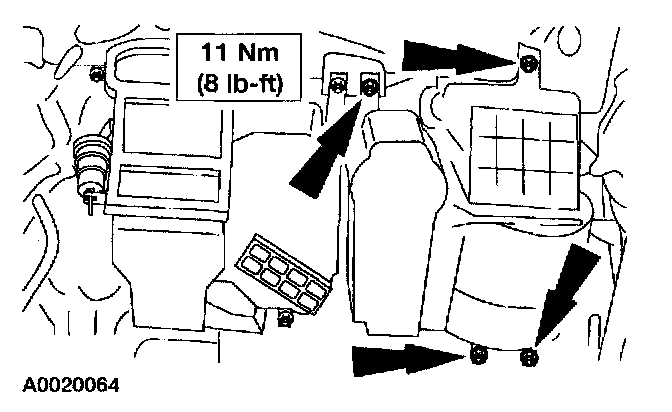

5. Remove the evaporator core housing.
1 Remove the nuts.
2 Carefully remove the evaporator core housing to avoid spilling PAG compressor oil in the passenger area.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE:
^ Feed the vacuum hose through the opening in the cowl while installing the housing.
^ Before installing the temperature control cable, make sure the blend door, cable and temperature switch are correctly positioned.
