Temperature Control Switch

TEMPERATURE CONTROL SWITCH

Alignment Pin, Temperature Blend Door:

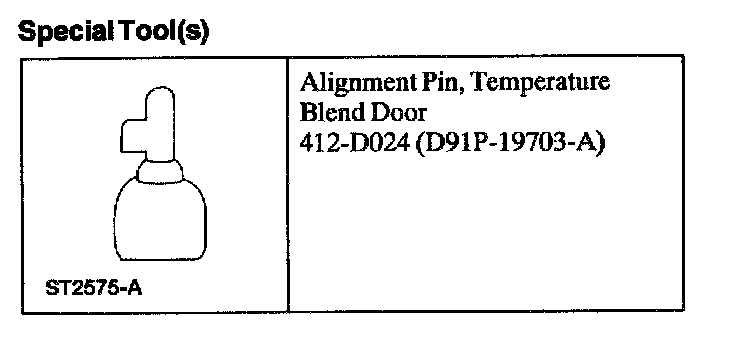

SPECIAL TOOL(S)

REMOVAL
1. Remove the instrument panel center finish panel.

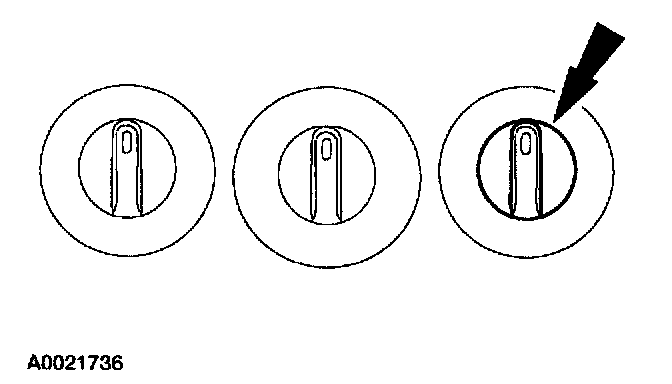

2. Remove the temperature control switch knob.







3. Disconnect the temperature blend door control cable.

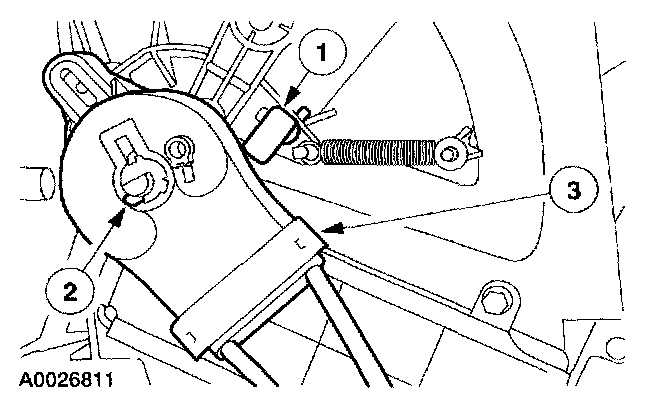

1 Align the locator holes and insert the special tool.
2 Release the locking tab.
3 Remove the temperature blend door control cable from the blend door shaft.

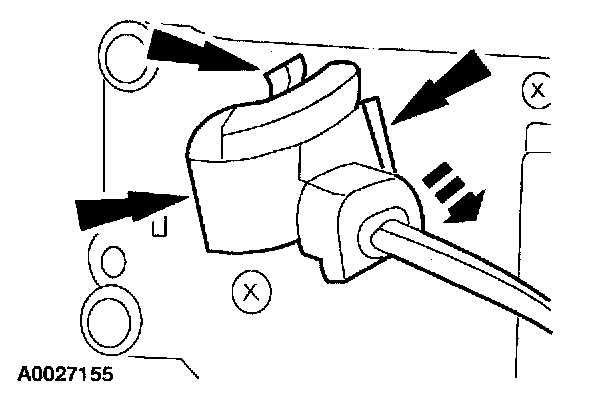

4. Depress the three tabs and remove the temperature blend door control cable.







5. Remove the temperature control switch.

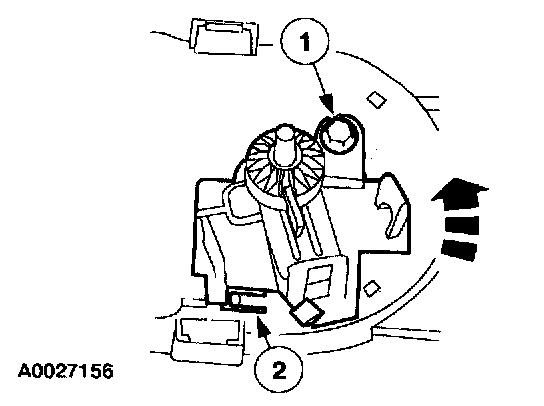

1 Remove the screw.

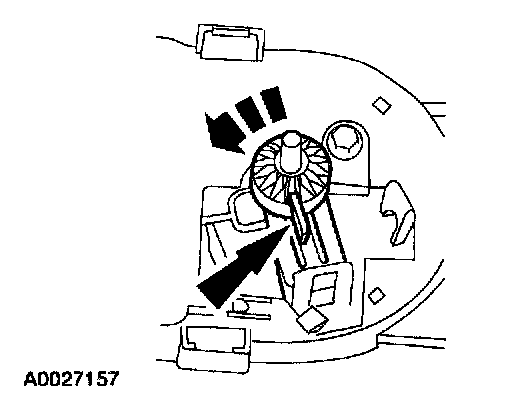

2 Depress the tab and rotate the temperature control switch counterclockwise.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Rotate the gear to align the locking tab with the notch in the gear before installing.
