Function Selector Switch

REMOVAL
1. Remove the instrument panel center finish panel.

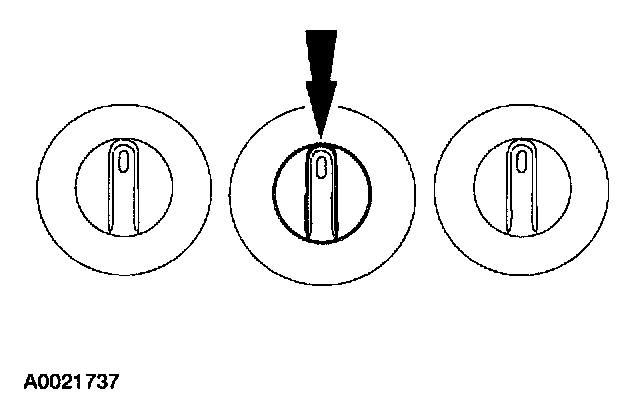

2. Remove the function selector switch knob.

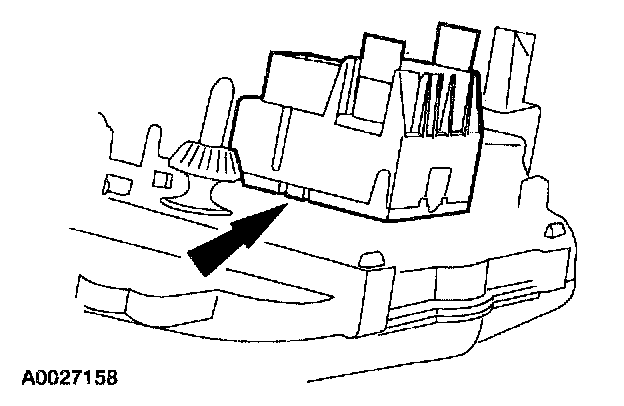

3. Remove the function selector switch.
^ Push in the locking tab on one side of the function selector switch.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Align the function selector switch locking tabs with the holes in the housing and press the function selector into the housing. Verify that both locking tabs are secured.
