Climate Control Assembly

REMOVAL
1. Remove the instrument panel center finish panel.

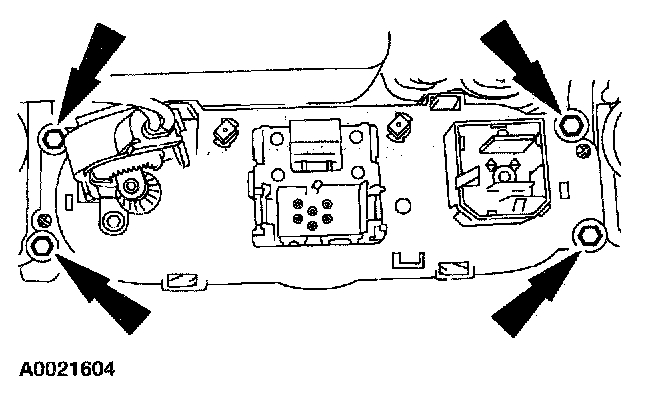

2. Remove the four screws and the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
