Air Conditioning Compressor Bracket

REMOVAL
1. Remove the drive belt.

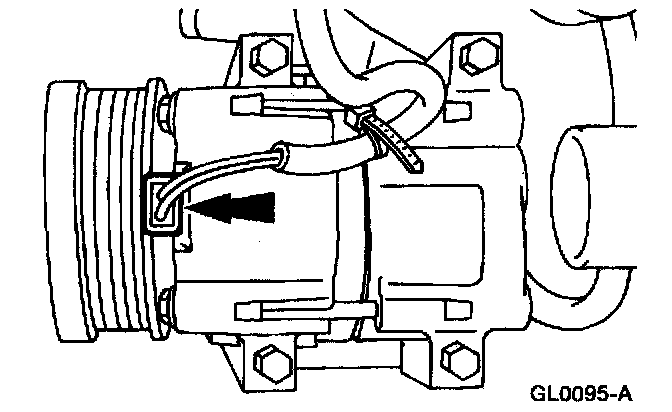

2. Disconnect the A/C clutch field coil electrical connector.

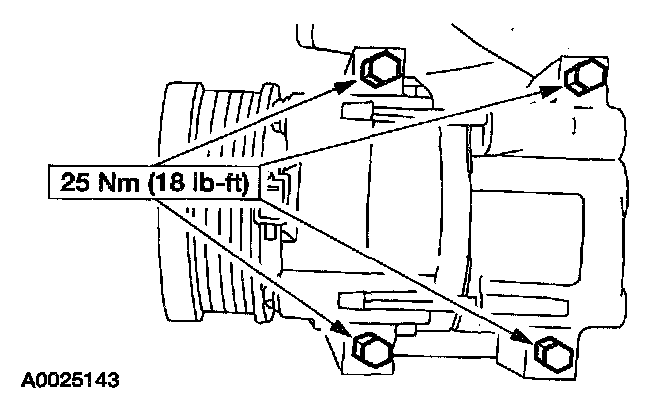

3. Remove the bolts and position the A/C compressor aside.

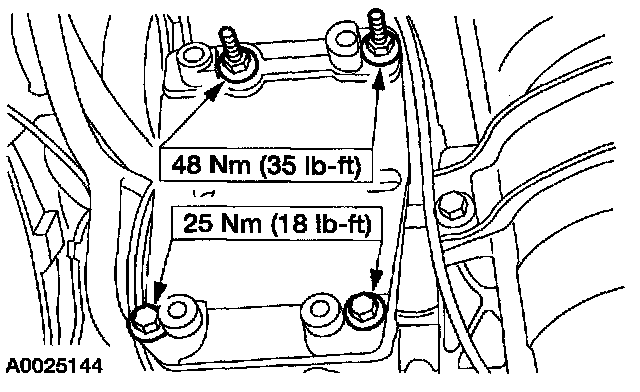

4. Remove the nuts, the bolts, and the A/C compressor bracket.

INSTALLATION
1. To install, reverse the removal procedure.
