Blower Motor Wheel

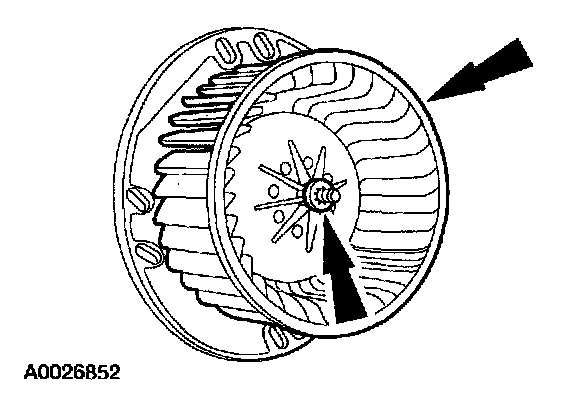

REMOVAL1. Remove the blower motor.
2. Remove the blower motor wheel retainer from the motor shaft, and remove the wheel.
INSTALLATION
1. To install, reverse the removal procedure.
NOTE: Install a new blower wheel retainer.
1. Remove the blower motor.
2. Remove the blower motor wheel retainer from the motor shaft, and remove the wheel.
INSTALLATION
1. To install, reverse the removal procedure.
NOTE: Install a new blower wheel retainer.
