Rear Footwell Duct

REMOVAL
1. Remove the driver and front passenger seats.

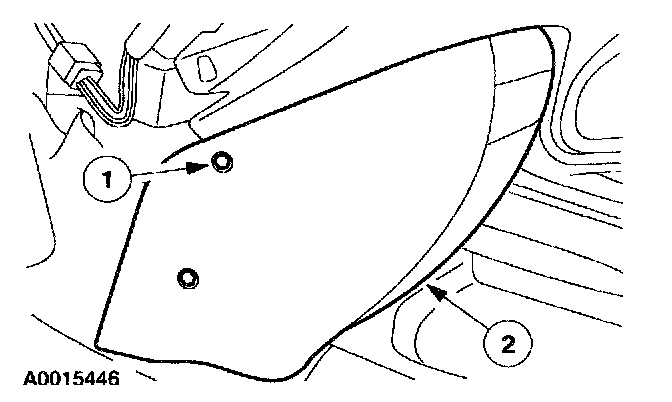

2. Remove the utility compartment.
1 Remove the four plastic fasteners.
2 Remove the utility compartment.
^ Disconnect the electrical connection.

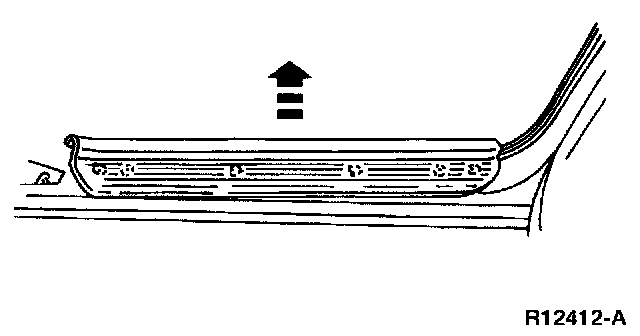

3. Remove LH and RH front door scuff plates.
4. Remove LH and RH lower A-pillar panels.

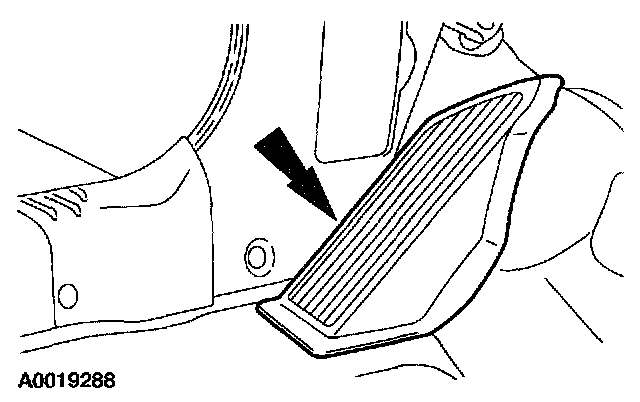

5. Remove the LH foot rest.
6. Pull back the carpet to gain access to the rear floor vent.

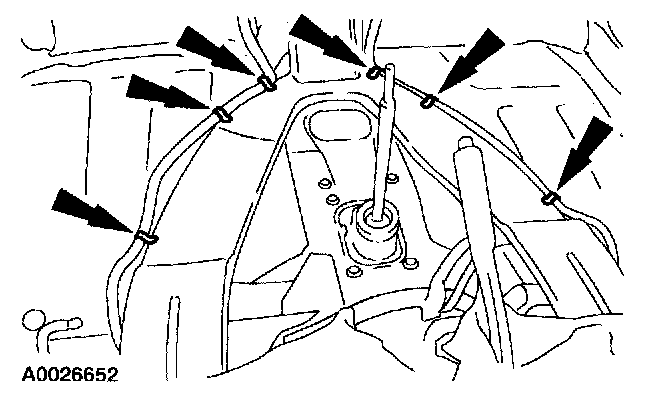

7. Remove the wire harness pin-type retainer.
8. Remove the floor duct pin-type retainers and remove the duct.

INSTALLATION
1. To install, reverse the removal procedure.
