Defroster Duct

REMOVAL
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

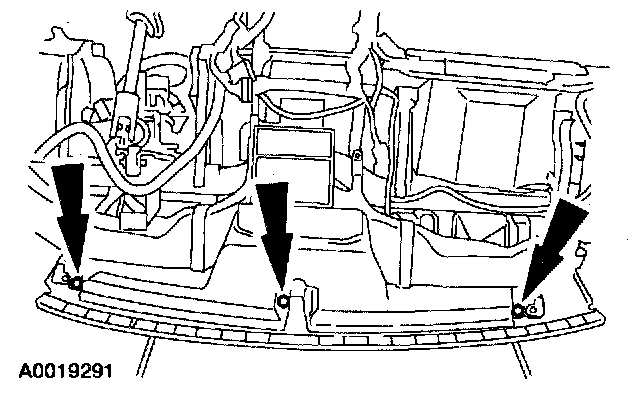

2. Remove the screws and the retaining guides.







3. Remove the screws and remove the duct.

INSTALLATION
1. To install, reverse the removal procedure.
