Air Door Cable: Service and Repair

Alignment Pin, Temperature Blend Door:

SPECIAL TOOL(S)

REMOVAL
1. Disconnect the negative battery cable.







2. Lower the glove compartment door.

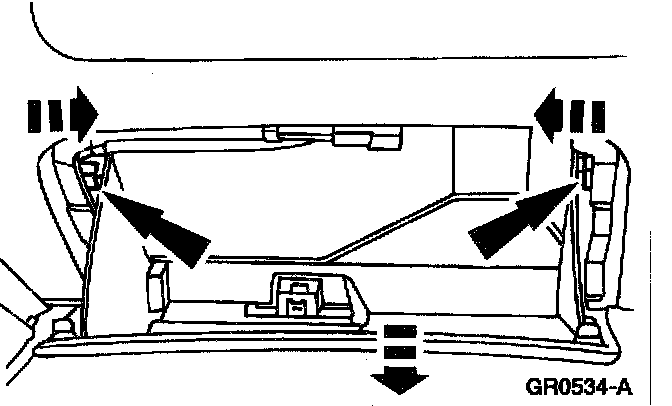

^ Press the glove compartment release tabs inward while pulling downward on the glove compartment.







3. Disconnect the temperature blend door control cable.

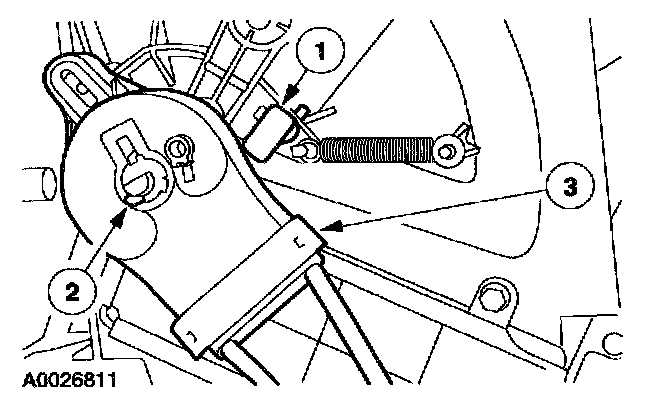

1 Align the locator holes and insert the special tool.
2 Release the locking tab.
3 Remove the temperature blend door control cable from the blend door shaft.

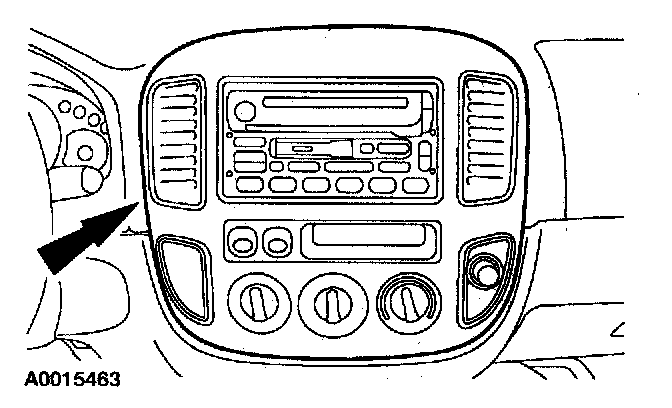

4. Remove the instrument panel center finish panel.
^ Disconnect the electrical connectors.

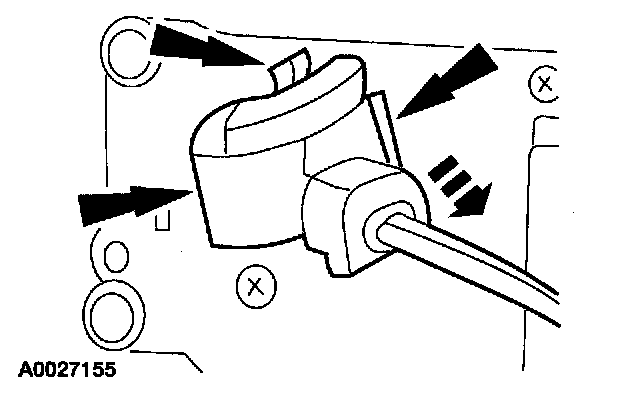

5. Depress the three tabs and remove the temperature blend door control cable.

INSTALLATION







1. To install, reverse the removal procedure.

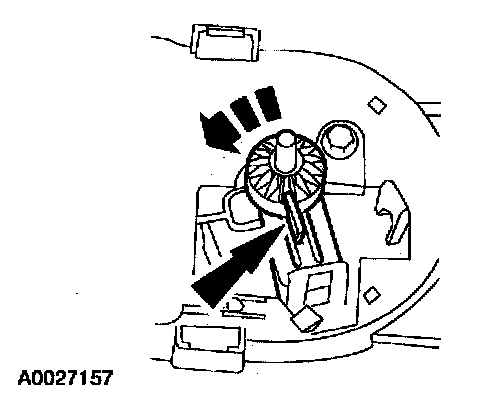

NOTE: Rotate the gear to align the locking tab with the notch in the gear before installing.
