Muffler: Service and Repair

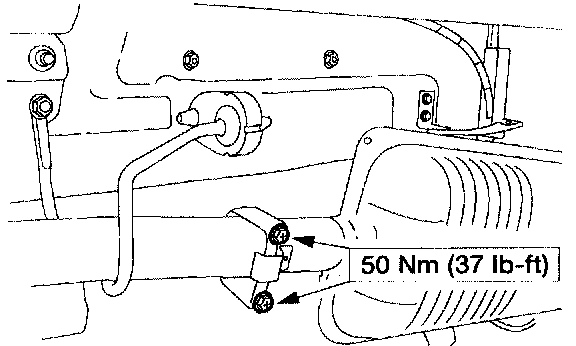

Muffler-3.0L (4V)

Removal and Installation
1. Raise and support the vehicle.





2. Remove the U-bolt.





3. Remove the nuts and the muffler.
^ Discard the gasket.
^ Discard the nuts.
4. To install, reverse the removal procedure.
^ Install a new gasket.
^ Install new nuts.
