Exhaust Pipe: Service and Repair

Exhaust Flexible Pipe-3.0L (4V)

Removal and Installation
1. Raise and support the vehicle.
2. Remove the RH catalyst monitor.





3. Remove and discard the two nuts and separate the flexible Y-pipe from the manifold.





4. Remove and discard the nuts.
^ Discard the gasket.





5. Remove the nuts.
^ Discard the gasket.

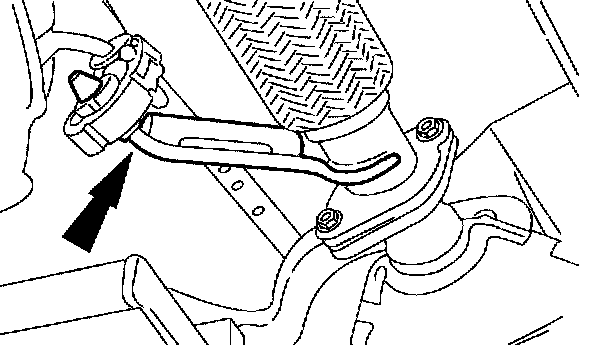

6. Remove the flexible pipe.
^ Disconnect from the hanger.
7. To install, reverse the removal procedure.
^ Install a new gasket.
^ Install new nuts.
