Exhaust Manifold RH

Exhaust Manifold RH

Removal
1. Remove the exhaust gas recirculation (EGR) tube.
2. Remove the generator.
3. Disconnect and remove the RH heated oxygen sensor (HO2S).
4. Remove the exhaust flexible pipe.





5. Remove the RH manifold.
^ Discard the gasket.

Installation

RH:

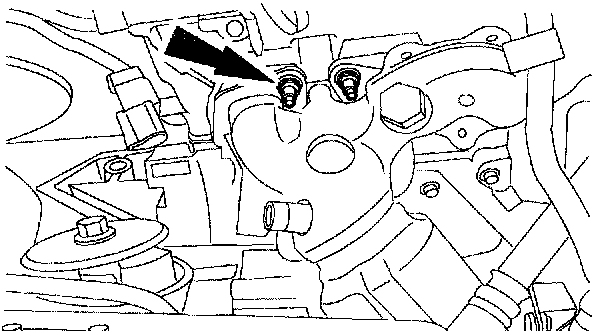

1. Position a new gasket and install the exhaust manifold nuts in the sequence shown.
2. Install the RH HO2S.
3. Install the exhaust flexible pipe.
4. Install the generator.
5. Install the EGR tube.
