Exhaust Manifold LH

Exhaust Manifold LH

Removal
1. Remove the LH heated oxygen sensor (HO2S) and the LH catalyst monitor.

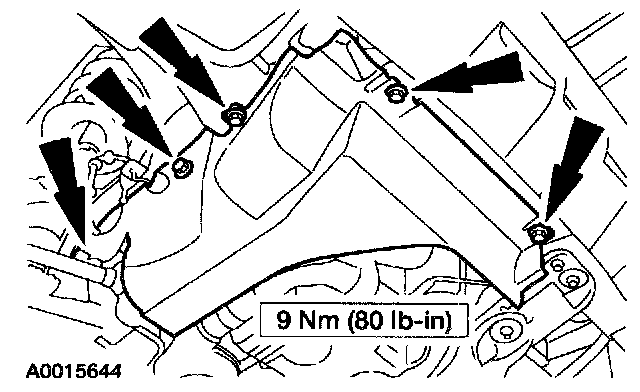

2. Remove the bolts and the splash shield.

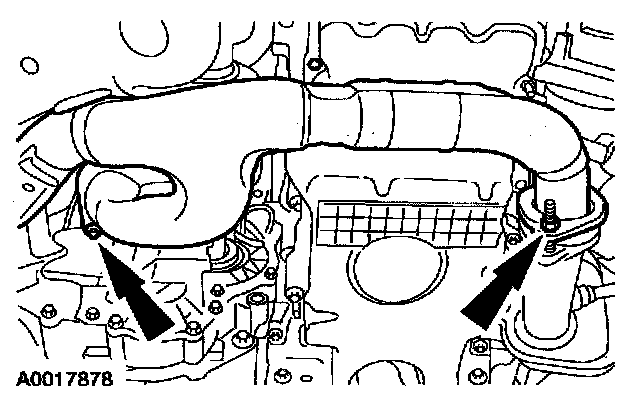

3. Remove the nuts and position the exhaust crossover aside.

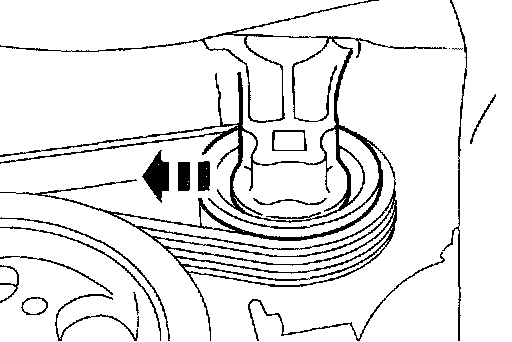

4. Rotate the accessory drive belt tensioner clockwise, and remove the belt.

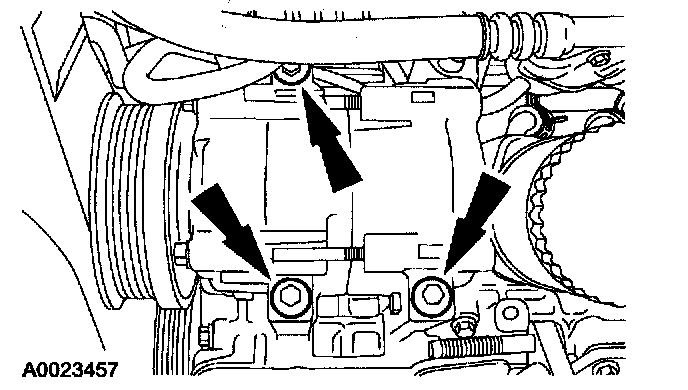

5. Remove the A/C compressor bolts and position aside.

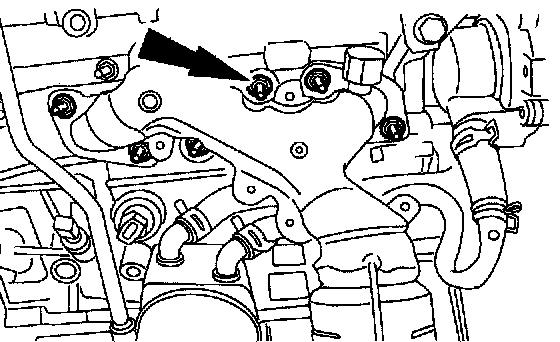

6. Remove the nuts and LH exhaust manifold and discard the gasket.

Installation

LH:

1. Position a new gasket and tighten the exhaust manifold in the sequence shown.

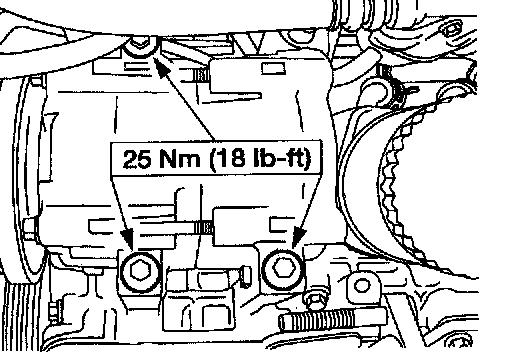

2. Position the A/C compressor and install the bolts.
3. Rotate the accessory drive belt tensioner clockwise and install the belt.





4. Position the exhaust crossover, and install the nuts.





5. Install the splash shield.
6. Install the LH HO2S and the LH catalyst monitor.
