Water Pump: Service and Repair

Water Pump-3.0L (4V)

Removal and Installation
1. Drain the engine cooling system.
2. Remove the air cleaner outlet tube.

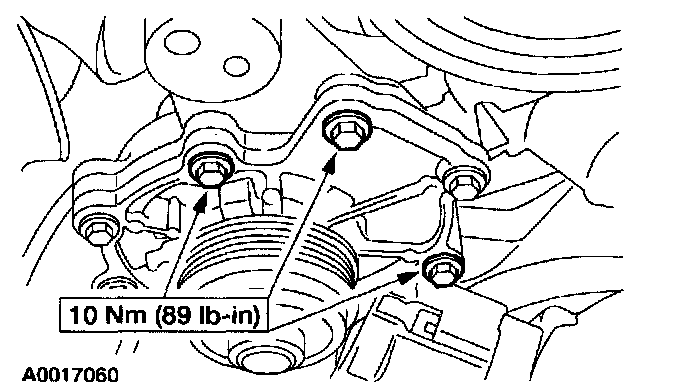

3. Remove the water pump belt tensioner, if equipped.

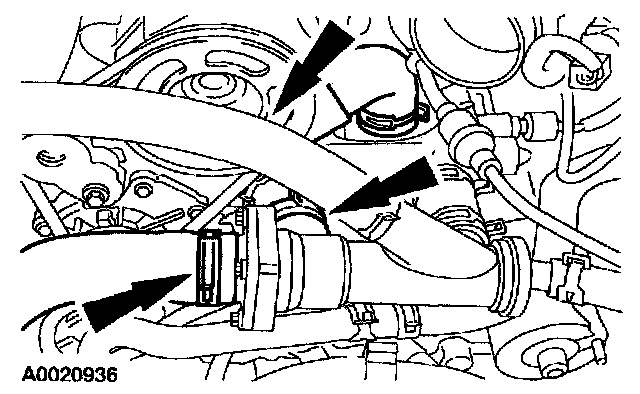

4. Disconnect the three hoses.





5. Remove the bolts and the water pump assembly.

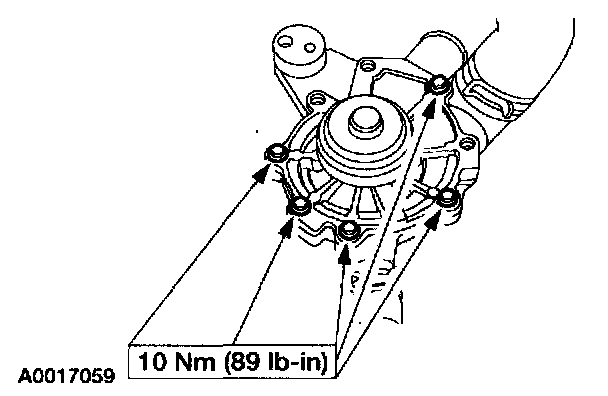

6. Separate the water pump from the water pump housing.

7. NOTE: Clean and inspect the sealing surfaces.

To install, reverse the removal procedure.
