Timing Cover: Service and Repair
Engine Front Cover

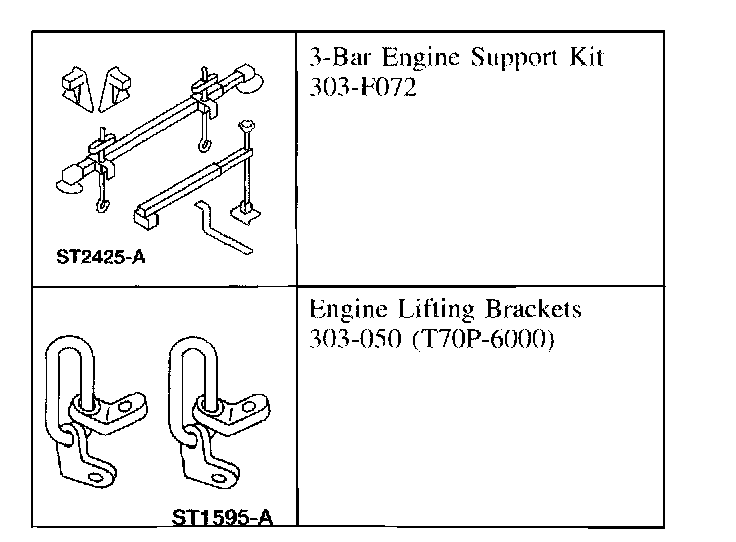

Special Tool(s)
Removal
1. Remove the RH and LH valve covers.
2. Remove the oil pan.
3. Remove the generator.

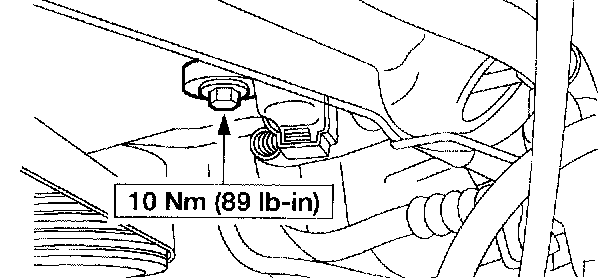

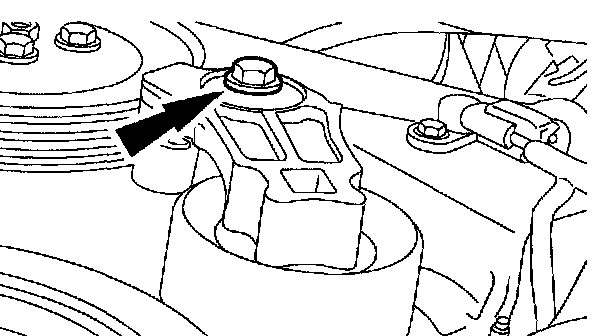

4. Remove the bolt and the camshaft position (CMP) sensor.
5. Lower the vehicle.
6. Remove the power steering pump.

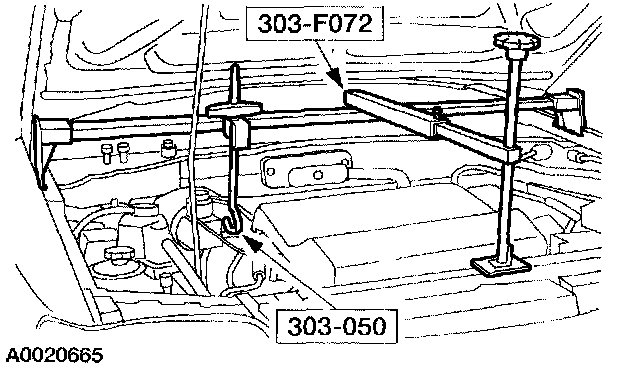

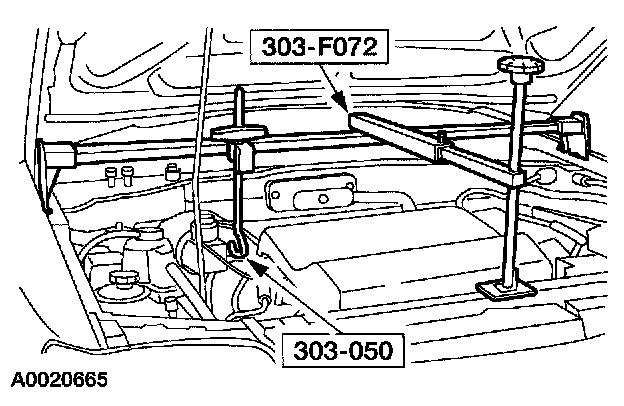

7. Install front engine support insulator.
8. Remove the special tool.
9. Raise and support the vehicle.

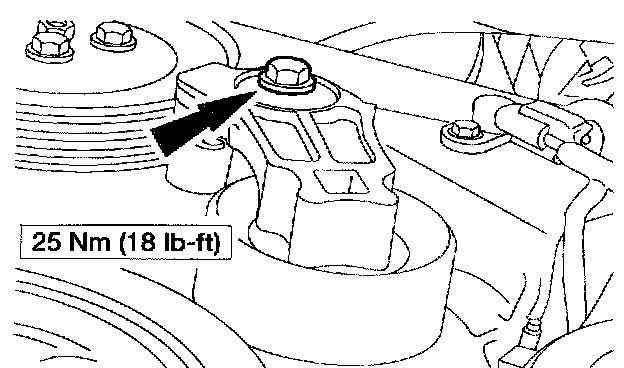

10. Remove the bolt and remove the belt tensioner.
11. Remove the crankshaft front seal.

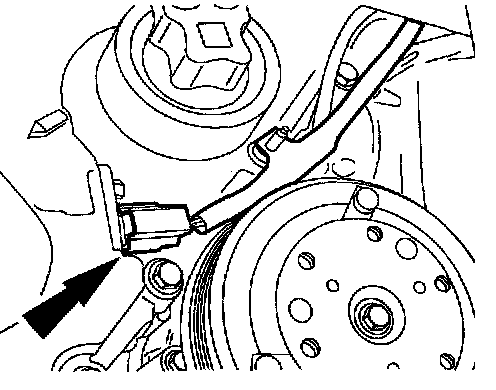

12. Remove the crankshaft position (CKP) sensor.

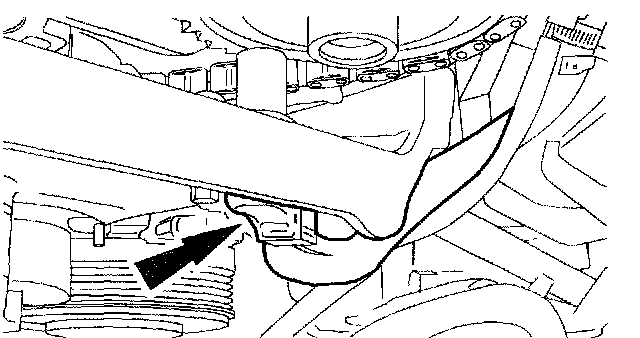

- Disconnect the electrical connector.

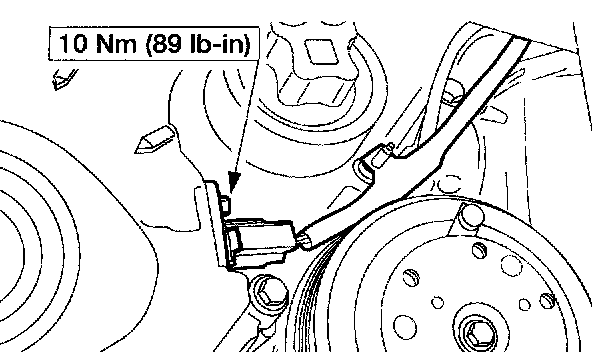

- Remove the bolt and the sensor.
13. NOTE: Remove the engine front cover with the vehicle raised in the air.
Remove the bolts, studs and the engine front cover.
- Remove and discard the front cover gaskets.
Installation
CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surface. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of sealant.
l. Clean all sealing surfaces with metal surface cleaner.
2. Install three new gaskets in the front cover.
3. NOTE: The engine front cover must be installed and the bolts tightened within four minutes of applying the sealant.

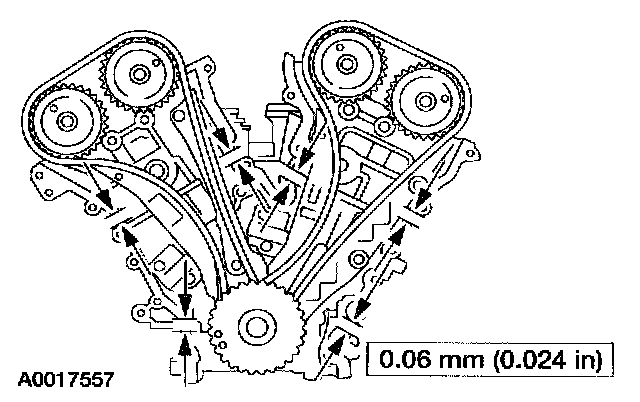

Apply a 6 mm (0.24 in.) diameter dot of silicone gasket and sealer to the cylinder block, lower cylinder block and cylinder head mating surfaces.
4. NOTE: Fasteners 1, 3, 4, 8, 10, 11, 14, 15 and 16 are studs.

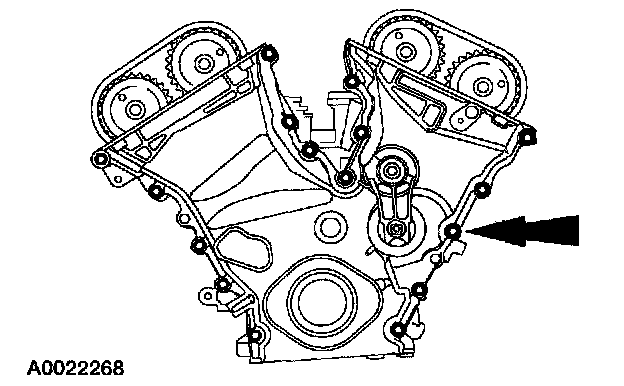

Position the cover and install the studs and bolts in the sequence shown.
5. Install the (CKP) sensor and connect the electrical connector.
6. Install the crankshaft front seal.
7. Install the tensioner and bolt.
8. Install the CMP and the bolt.
- Connect the electrical connector.
9. Install the generator.
10. Install the oil pan.
11. Lower the vehicle.
12. Install the special tool.
13. Remove the front engine support insulator.

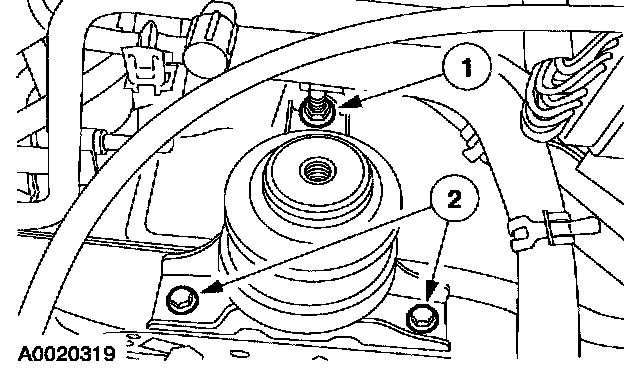

1 Remove the nut.

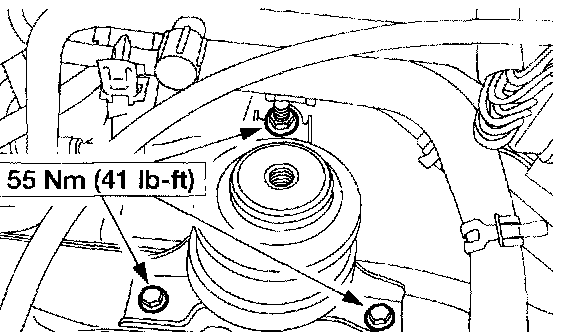

2 Remove the bolts and the insulator.
14. Install the power steering pump.
15. Install the RH and LH valve cover.
