Cylinder Heads

Cylinder Head





Special Tool(s)

Disassembly

CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.

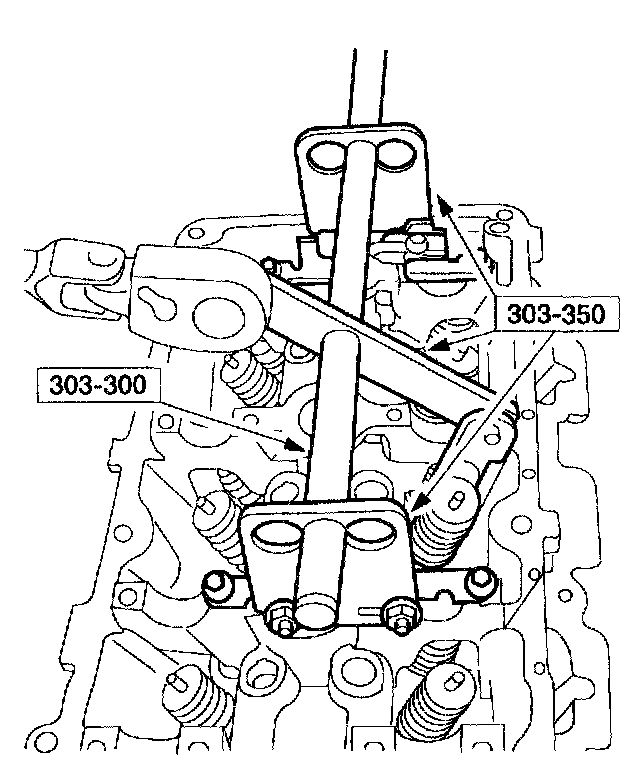

1. Using the special tool, remove the keys, retainer, and spring.
2. Remove the valve from the cylinder head.

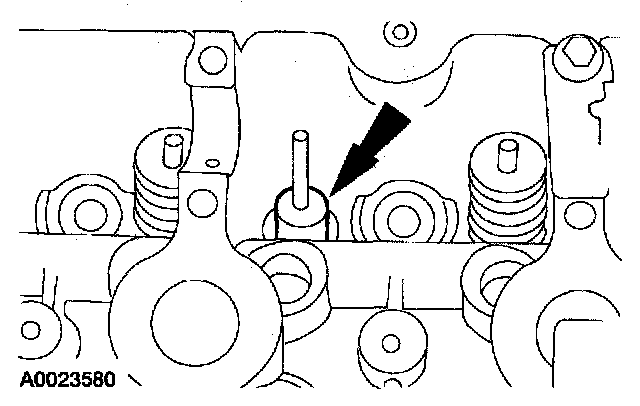

3. Remove the valve stem seal.

Assembly

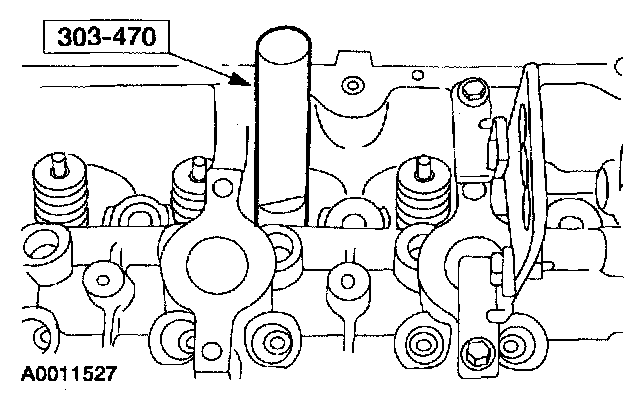

1. Using the special tool, install the valve stem seal.
2. Install the valve.





3. Using the special tool, install the valve spring, retainer and key.
